Cusco 195 270 W10 Safety 21 Roll Cage 10-Point 2-Passenger Escape Dash

The Cusco Safety 21 Roll Cage is a professional-grade 10-point roll cage designed to dramatically improve chassis rigidity while providing critical safety protection during competition and high-performance driving. This escape dash configuration allows for easier entry and exit while maintaining structural integrity and meeting motorsport safety standards.

Key Features:

• 10-point configuration with front and rear bars, diagonal supports, and side bars
• 2-passenger seating capacity with escape dash front design for improved access
• Constructed from cold drawn seamless carbon steel meeting JIS grade STKM13C-SC specifications
• 40mm diameter tubing with 2.0mm wall thickness throughout
• Exceeds JAF regulation strength requirements at 510N/mm² (JAF requires 350N/mm²)

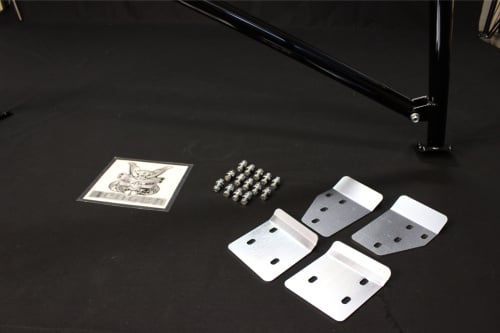

• Mounting plates 60mm² or greater with 2.6mm wall thickness
• Reinforcing plates 120mm² or greater with 3.2mm wall thickness
• Black painted finish for corrosion resistance
• Bolt-in or weld-in installation options available
• Designed based on extensive racing feedback and competition experience

Performance Benefits:

• Significantly increases chassis rigidity for improved handling and steering response
• Strategic mounting positions at suspension points and high-strength chassis locations
• Front cage design optimized to minimize obstruction of driver visibility
• Lightweight joint construction reduces overall weight while maximizing strength
• Complies with JAF domestic safety regulations for competition use

Cusco roll cages are made to order and engineered with precision to deliver both performance and safety benefits. The Safety 21 series represents decades of motorsport expertise, with cage structures developed from real-world track testing and competition feedback. This cage drastically improves overall vehicle feedback and provides essential protection in high-speed racing situations.

Note: This roll cage was designed for right-hand drive vehicles. Modifications may be necessary for left-hand drive applications. Professional installation is strongly recommended. This product is intended for off-road competition use.
