BorgWarner 13009097057 S300SX-E Turbo CHRA Cartridge 62/68 8376

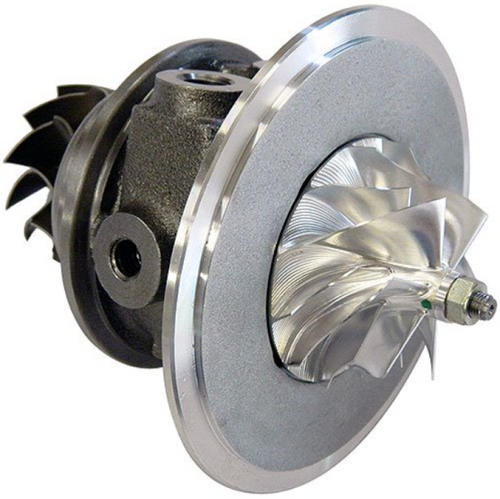

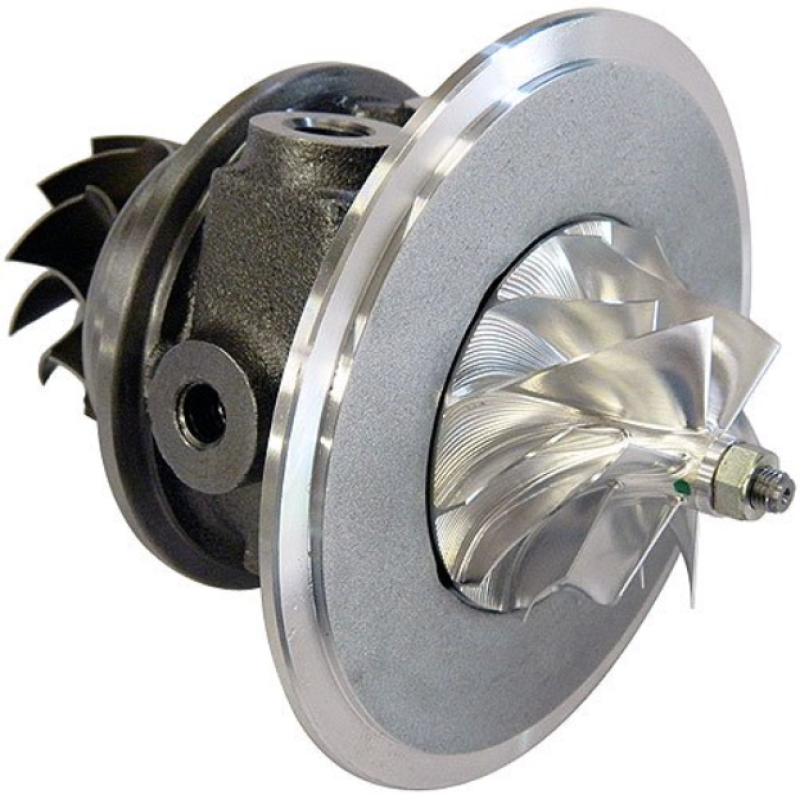

The BorgWarner 13009097057 is an AirWerks S300SX-E super core assembly (CHRA - Center Housing Rotating Assembly) engineered for high-performance diesel and gasoline applications. This cartridge features the 8376 configuration with a 62mm compressor wheel and 68mm turbine wheel design.

Advanced Performance Features:

• 360-degree thrust bearing for enhanced durability and load capacity
• Forged milled billet compressor wheel with extended tip technology for improved airflow
• Optimized compressor stage aerodynamics for maximum efficiency
• 4-inch inlet, 2.5-inch outlet compressor housing with port shroud map width enhancement
• Integrated speed sensor port and pre-machined boost port in compressor cover
• Flexible compressor cover outlet options for versatile installation
• Interchangeable with existing BorgWarner turbine housings for easy upgrades

What's Included:

• Complete super core assembly with compressor cover attached to cartridge
• All cartridge to turbine housing mounting hardware
• Clamp plates, cap screws, and mounting gaskets

This genuine BorgWarner replacement cartridge is ideal for upgrading or rebuilding S300 series turbochargers in performance and competition applications. The super core design allows you to retain your existing turbine housing while upgrading the critical rotating components for improved performance and reliability.
