Fabtech K1180DL 3.5" Ball Joint UCA Lift Kit w/ Dirt Logic Shocks 2020-21 GM 3500HD

The Fabtech K1180DL is a premium 3.5-inch suspension lift kit engineered specifically for 2020-2021 GM 3500HD trucks. This complete system elevates ride height to accommodate up to 35-inch tires while improving off-road capability and creating a level, aggressive stance from front to rear.

Heavy-Duty Tubular Upper Control Arms:

Factory upper control arms are replaced with Fabtech's reinforced ball joint tubular arms, built from 1.50-inch OD DOM steel tubing with .120-inch wall thickness. These arms feature an oversized high-travel ball joint significantly larger than stock, providing exceptional strength for demanding on-road and off-road use. The ball joint angle is precision-set to allow full suspension travel without binding throughout the entire range of motion. Each arm includes an additional 1 degree of caster for improved steering stability and includes 2.25-inch OD x .250-inch wall DOM bushing barrels for maximum durability.

Dirt Logic 2.25 Reservoir Shocks:

This kit includes Fabtech's top-tier Dirt Logic 2.25 performance shocks featuring stainless steel bodies and NitroSteel piston rods for superior corrosion resistance and long-term durability. Front shocks are equipped with remote aluminum reservoirs that increase oil capacity and cooling efficiency, ensuring consistent damping performance in rugged terrain. These premium shocks deliver exceptional ride quality on pavement while providing excellent control during aggressive off-road driving.

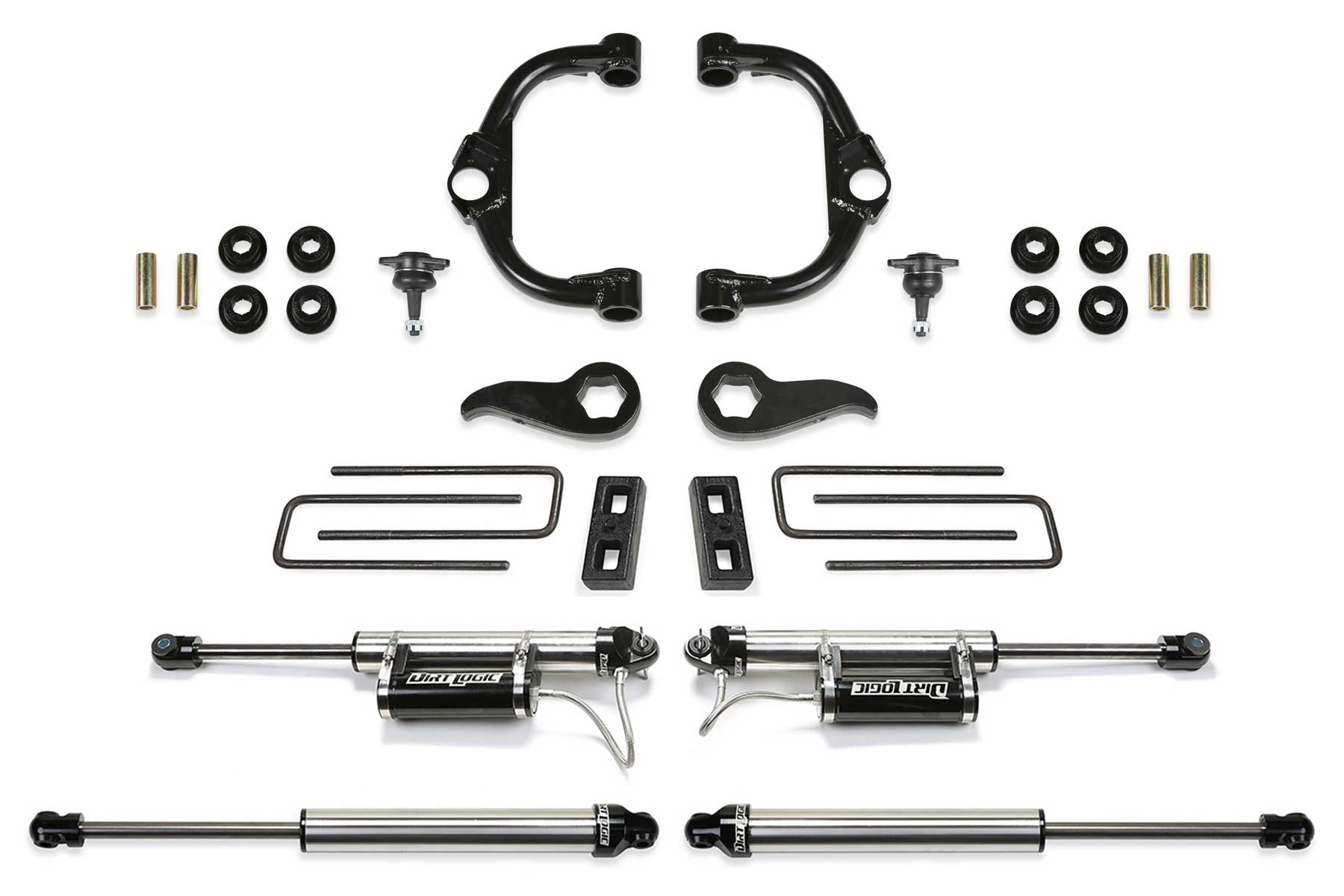

Complete Lift System:

• Heavy-duty forged torsion bar keys replace factory units and allow additional ride height adjustment
• 2-inch rear blocks and U-bolts included to level the vehicle stance
• Engineered for 35-inch tire clearance
• All components designed for enhanced strength and reliability
• Maintains full suspension travel and articulation

This comprehensive lift kit combines high-quality engineered components to transform your GM 3500HD with improved ground clearance, commanding presence, and superior performance both on the highway and off the beaten path.
