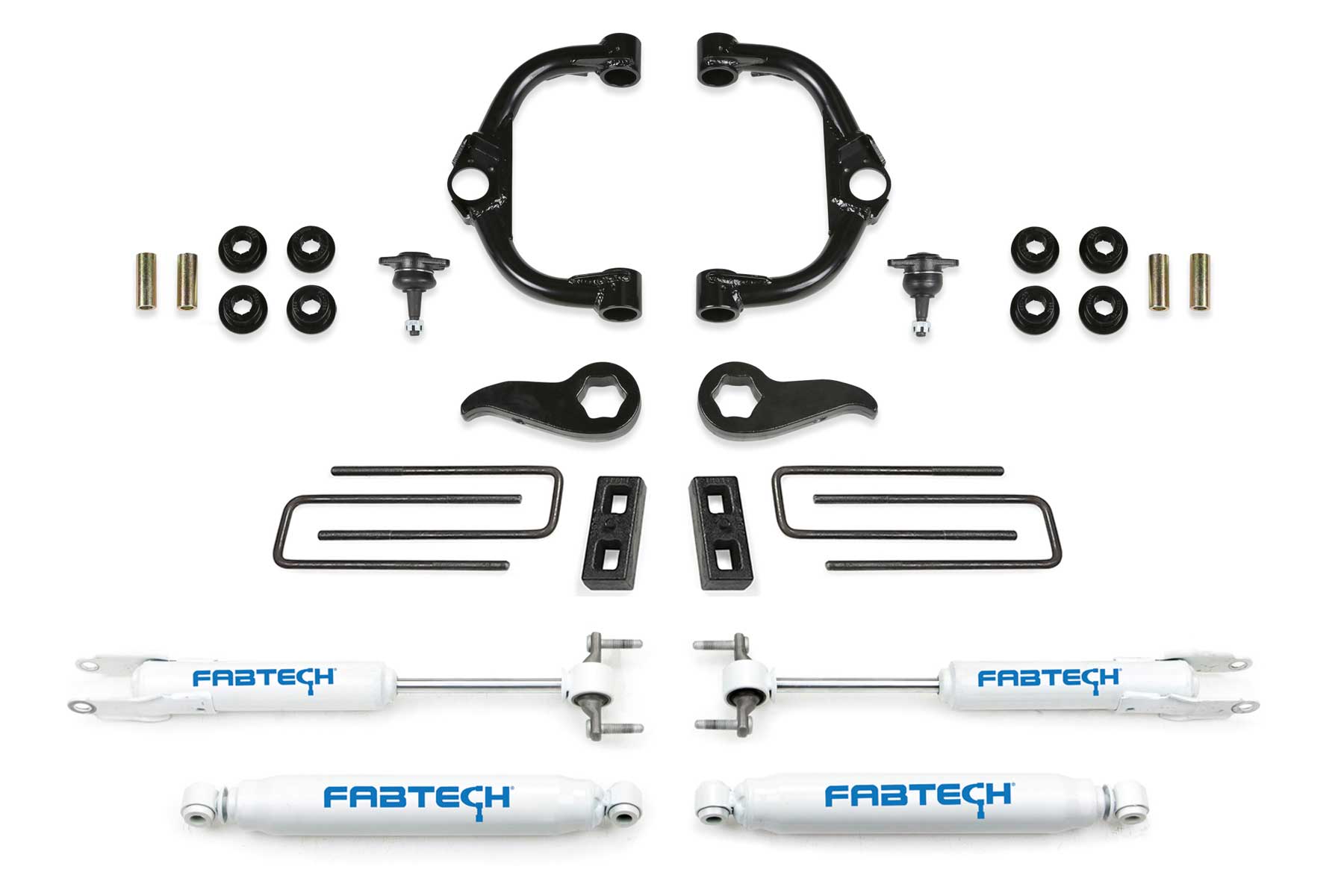

Fabtech K1179 3.5" Ball Joint UCA Lift Kit with Performance Shocks for 2020-2021 GM 3500HD

The Fabtech K1179 is a comprehensive 3.5-inch suspension lift kit engineered specifically for 2020-2021 GM 3500HD trucks. This system delivers increased ground clearance to accommodate up to 35-inch tires while creating a more level, aggressive stance and enhanced off-road capability.

Tubular Upper Control Arms:

Factory GM upper control arms are replaced with heavy-duty ball joint tubular arms constructed from 1.50-inch OD DOM steel tubing with 0.120-inch wall thickness. These feature oversized high-travel ball joints significantly larger than stock units, providing superior strength for both on-road and off-road use. Fabtech precisely sets the ball joint angle to ensure full suspension travel without binding throughout the entire range of motion. The arms include an additional 1 degree of caster for improved handling and feature 2.25-inch OD x 0.250-inch wall DOM bushing barrels for durability.

Complete Lift System:

• Heavy-duty forged torsion bar keys replace factory units and allow adjustable ride height
• 2-inch rear blocks and U-bolts level the vehicle's stance
• Performance twin-tube shocks deliver comfortable highway ride quality with off-road capability
• Engineered to accommodate 35-inch tires
• All high-quality components designed for strength and reliability

This complete lift kit transforms your GM 3500HD with commanding ground clearance, improved approach angles, and the structural integrity needed for serious work and play.
