ICON Vehicle Dynamics K53188 Stage 8 Suspension System 2010-Up Lexus GX460 0-3.5" Lift with Billet UCA

(2010-2021 Lexus GX460; 1994, 1996-1998 Volkswagen Golf GTI; 1995-1998 Volkswagen Golf GL/GTI VR6; 1989-1990, 1993 Suzuki Sidekick JLX + 2 more models)

Manufacturer

Part Number

K53188
Black Friday Price

$7,033.03

$8,274.15 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 8 Suspension System transforms the 2010-Up Lexus GX460 into a capable on-road and off-road performer with a comprehensive suspension upgrade featuring adjustable coilovers, billet upper control arms, and advanced damping technology.

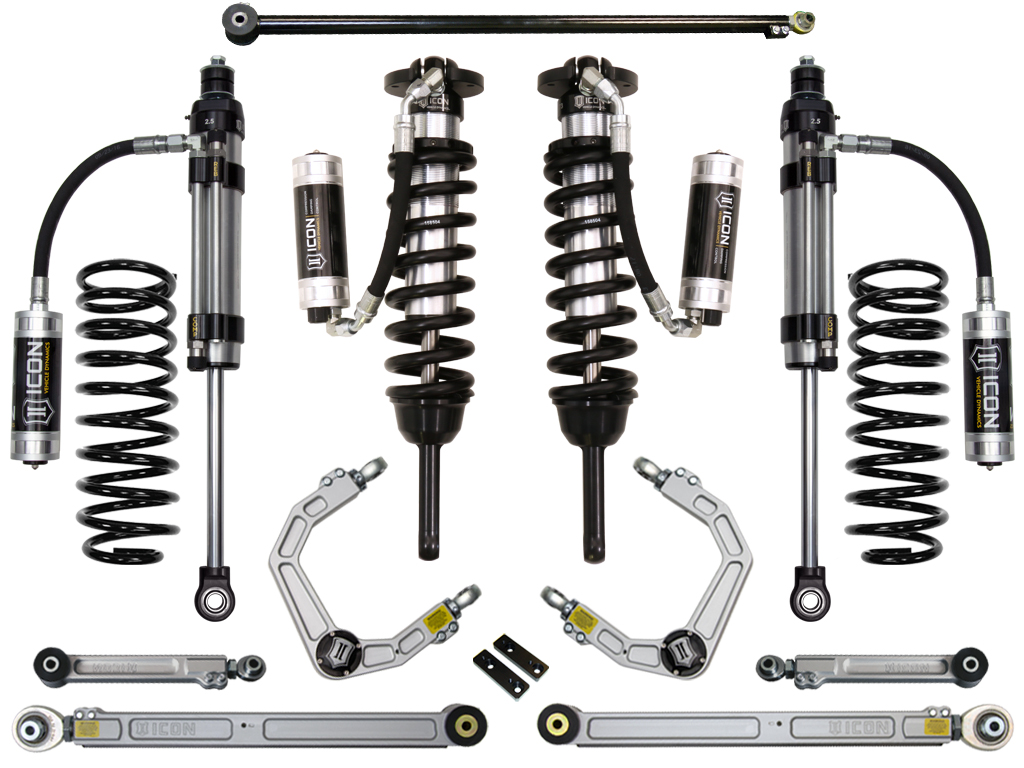

Front Suspension Components:

  • Vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs
  • CDC (Compression Damping Control) Valve for easy end-user compression adjustments
  • ICON-engineered coil springs for superior vehicle feel through full range of travel
  • Height adjustable from 0-3.5" of lift over stock for larger wheel and tire combinations
  • Billet aluminum Delta Joint upper control arms with on-vehicle alignment adjustment capability
  • Increased wheel travel and improved suspension geometry for predictable handling

Rear Suspension Components:

  • 2.5 Omega bypass remote reservoir rear shocks with vehicle-specific valving
  • Aggressive bump zones with compression and rebound adjustment
  • ICON 2" lift rear coil springs
  • Billet aluminum upper and lower links for improved strength and articulation
  • Adjustable rear track bar for KDSS compatibility and rear end alignment correction
  • Correct roll steer geometry for optimal on and off-road handling

Patented Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint (U.S. Pat. 10,731,700), a heavy-duty high-angle ball joint that combines the durability and weather resistance of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, a tough grease seal to protect against the elements, metal-on-metal construction, and a greaseable design for noise-free operation and extended longevity. This innovative design delivers greater angularity than typical ball joints while being more robust than standard uniballs.

The Stage 8 system provides exceptional cooling properties through remote reservoirs, ultimate control over performance and ride quality through multiple adjustment points, and significantly increased wheel travel over stock. The comprehensive design allows drivers to optimize their suspension for various terrain types and cargo configurations while maintaining superior on-road manners.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2010-2021 Lexus GX460; 1994, 1996-1998 Volkswagen Golf GTI; 1995-1998 Volkswagen Golf GL/GTI VR6; 1989-1990, 1993 Suzuki Sidekick JLX; 1989-1995 Suzuki Sidekick JX; 1990-1995 Suzuki Sidekick JS

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Shocks Included

Yes

Coils Quantity Front

2

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Mounting Hardware Included

Yes

OEM Wheels & Tires Fitment

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset
