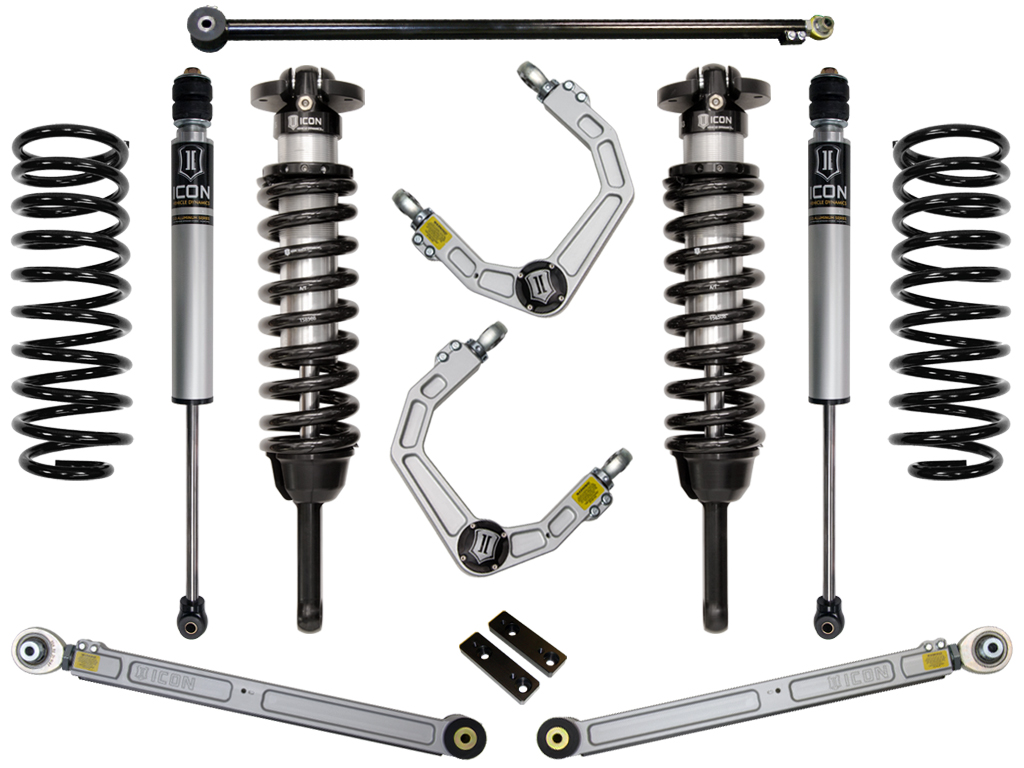

ICON Vehicle Dynamics K53183 Stage Suspension System Lexus Lift Billet UCA - 3 2010-Up GX460 0-3.5

(1988-1992 Toyota Corolla; 2010-2021 Lexus GX460; 1968-1973 Pontiac LeMans)

Manufacturer

Part Number

K53183
Black Friday Price

$4,282.00

$5,037.65 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 3 Suspension System transforms the 2010-Up Lexus GX460 with a complete performance upgrade featuring vehicle-specific tuned components for superior on-road handling and off-road capability. This comprehensive system provides 0-3.5" of adjustable lift height, extended wheel travel, and improved ride quality over stock.

Front Suspension Components:

  • Vehicle-specific tuned 2.5" coilover shocks with internal reservoirs
  • Height adjustable from 0-3.5" of lift for larger wheel and tire combinations
  • Billet aluminum upper control arms with patented Delta Joint technology
  • On-vehicle adjustment capability for precise front end alignment
  • Extended wheel travel for improved articulation

Rear Suspension Components:

  • ICON 2" lift rear coil springs with vehicle-specific rates
  • 2.0 Aluminum Series internal reservoir rear shocks with custom valving
  • Billet aluminum lower links with increased strength and improved geometry
  • On-vehicle pinion angle adjustment for optimum driveline performance
  • Adjustable rear track bar for KDSS compatibility and rear end alignment
  • Corrected roll steer geometry for enhanced handling on and off-road

Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint (U.S. Pat. 10,731,700), a revolutionary heavy-duty high-angle ball joint that combines the durability and weather resistance of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, a robust grease seal to protect against the elements, and metal-on-metal construction for noise-free operation and extended service life. This greaseable design allows greater angularity than conventional ball joints while providing superior longevity compared to standard uniballs in daily driving conditions.

The Stage 3 system delivers balanced performance from front to rear with superior shock damping and control. The billet aluminum lower links are significantly stronger than OE units and improve articulation while maintaining proper roll steer geometry. This complete suspension system is the ideal choice for GX460 owners seeking to enhance their vehicle's capabilities for both daily driving and off-road adventures while accommodating more aggressive wheel and tire setups.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

1988-1992 Toyota Corolla; 2010-2021 Lexus GX460; 1968-1973 Pontiac LeMans

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Coils Quantity Front

2

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Spring Material

Steel

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Shocks Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

OEM Wheels & Tires Fitment

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Mounting Hardware Included

Yes
