ICON Vehicle Dynamics K53178T Stage 8 Suspension System 2003-09 Lexus GX470 0-3.5" Lift Tubular UCA

(2011-2014 Mercedes-Benz E350 Base; 2011-2016 Mercedes-Benz E550 Base; 2015-2016 Mercedes-Benz E400 Base; 2003-2009 Lexus GX470; 2012-2018 Toyota Prius C)

Manufacturer

Part Number

K53178T
Sale Price

$6,137.80

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

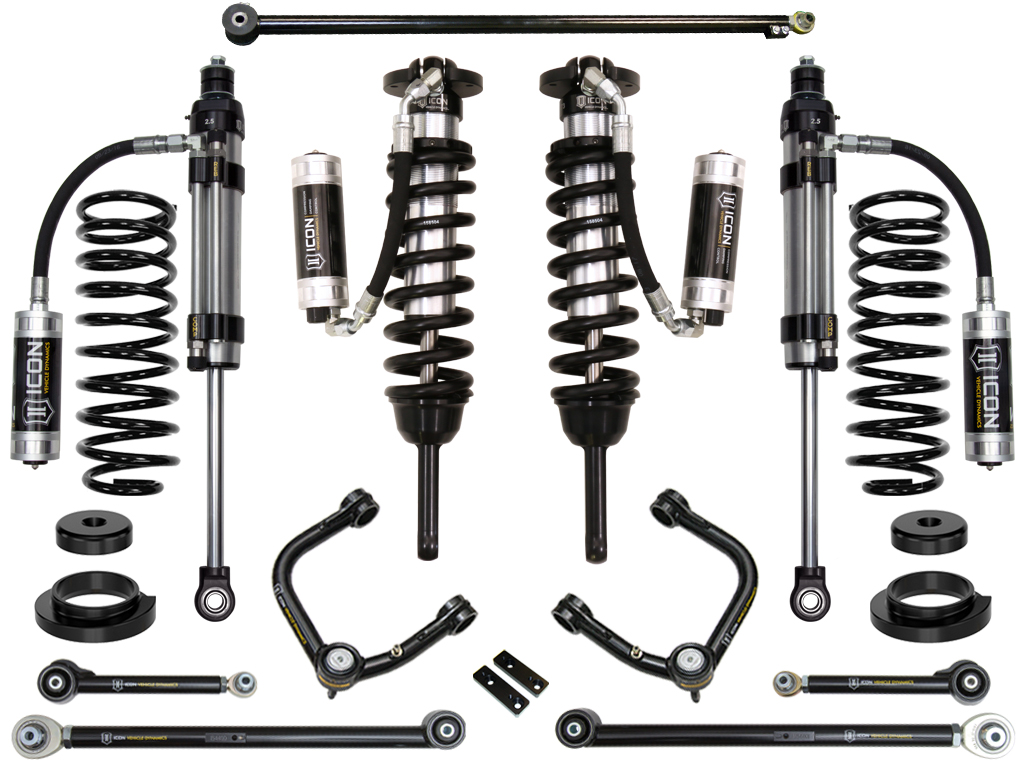

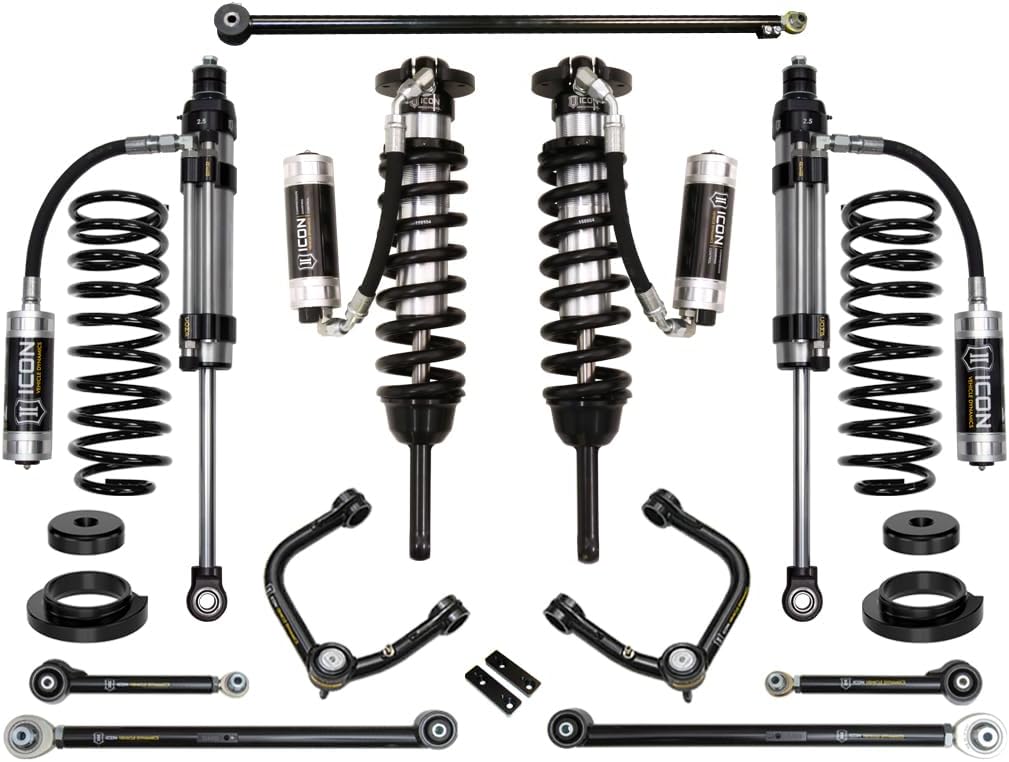

The ICON Vehicle Dynamics Stage 8 Suspension System is a comprehensive suspension upgrade designed specifically for 2003-2009 Lexus GX470 vehicles, delivering 0-3.5" of adjustable lift with dramatically improved on-road handling and off-road capability.

Front Suspension Components:

  • Vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs for exceptional heat dissipation
  • CDC (Compression Damping Control) Valve allows tool-free compression adjustment for optimal performance across varying terrain and load conditions
  • ICON-engineered coil springs provide superior vehicle feel throughout the entire range of travel
  • Height adjustable from 0-3.5" to accommodate larger, more aggressive wheel and tire combinations
  • Tubular steel Delta Joint upper control arms enable extended wheel travel and corrected suspension geometry for precise alignment

Rear Suspension Components:

  • ICON 2" lift coil springs paired with 2.5 Omega bypass remote reservoir shocks
  • Rear coil spring conversion kit eliminates factory air bags on GX470 platforms
  • Adjustable compression and rebound damping with aggressive bump zones for ultimate performance control
  • Tubular steel rear upper and lower links, significantly stronger than OE units, featuring low-maintenance multi-durometer bushings
  • Adjustable lower links optimize pinion angle and provide correct roll steer geometry for superior handling
  • Adjustable rear track bar corrects rear axle alignment and ensures KDSS compatibility

Patented Delta Joint Technology:

The upper control arms feature ICON's patented Delta Joint (U.S. Pat. 10,731,700), a heavy-duty high-angle ball joint that combines the durability and weather resistance of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, robust grease seals to protect against the elements, metal-on-metal construction for longevity, and a greaseable design for noise-free operation. This innovative design delivers greater angularity than standard ball joints while providing superior durability compared to traditional uniballs in daily-driven applications.

This complete Stage 8 system delivers increased wheel travel, superior ride quality over stock, and vehicle-specific shock damping for exceptional control both on pavement and off-road.

Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2011-2014 Mercedes-Benz E350 Base; 2011-2016 Mercedes-Benz E550 Base; 2015-2016 Mercedes-Benz E400 Base; 2003-2009 Lexus GX470; 2012-2018 Toyota Prius C

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Shocks Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

OEM Wheels & Tires Fitment

Yes

Grade Type

Performance

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Mounting Hardware Included

Yes

Coils Quantity Front

2

Spring Material

Steel

Add-On Part

198001 - BILLET SPANNER WRENCH KIT
