ICON Vehicle Dynamics K53176T Stage Suspension System Lift Tubular UCA - 6 0-3.5

(2003-2009 Lexus GX470; 1968-1973 Pontiac LeMans; 2012-2015 Toyota Prius Plug-In Base)

Manufacturer

Part Number

K53176T
Black Friday Price

$4,954.22

$5,828.49 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

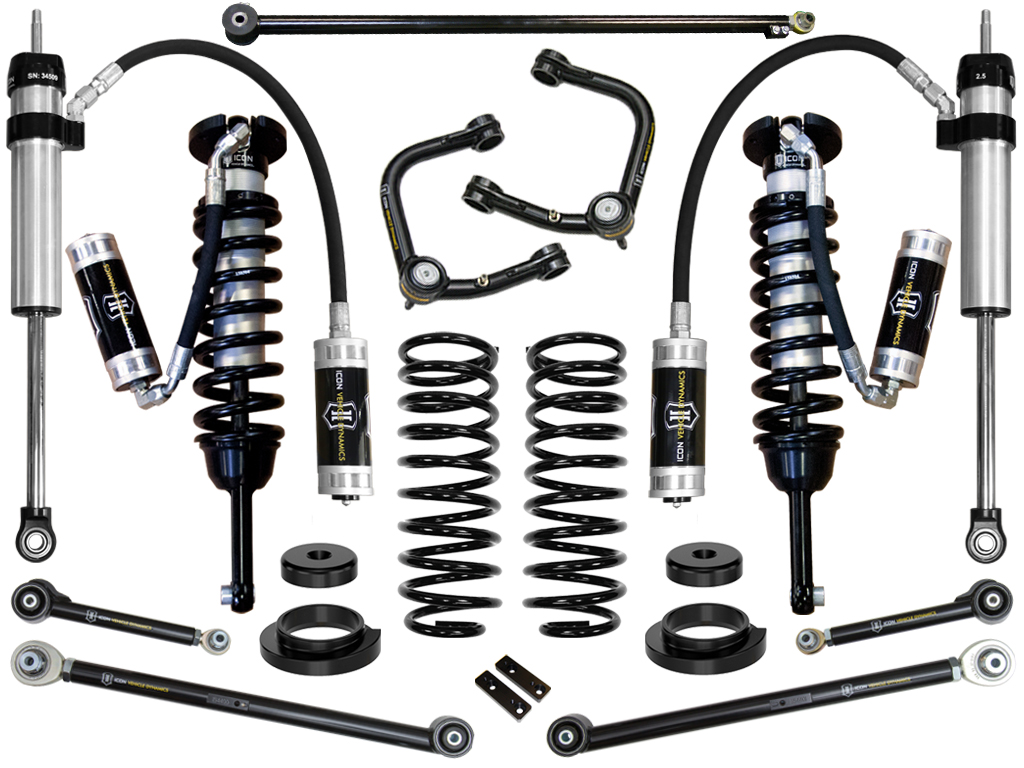

The ICON Vehicle Dynamics Stage 6 Suspension System is a comprehensive bolt-on suspension upgrade designed specifically for 2003-2009 Lexus GX470 vehicles with 0-3.5" of lift capability. This complete system dramatically enhances both on-road handling and off-road performance while eliminating the factory air suspension system.

Front Suspension Components:

  • Vehicle-specific tuned 2.5" extended travel coilover shocks with remote reservoirs for improved heat dissipation
  • Height adjustable from 0-3.5" of lift to accommodate larger wheel and tire combinations
  • Tubular steel Delta Joint upper control arms for extended wheel travel and geometry correction
  • Precision wheel alignment capability for more accurate steering response

Rear Suspension Components:

  • ICON 2" lift coil springs with vehicle-specific valving for balanced front-to-rear performance
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
  • Rear coil spring conversion kit that eliminates factory air bag system
  • Tubular steel upper and lower links with low-maintenance multi-durometer bushings
  • Adjustable links for optimum pinion angle correction
  • Engineered lower links provide correct roll steer geometry for superior handling
  • Adjustable rear track bar for rear end alignment and KDSS compatibility

ICON Delta Joint Technology:

This system features ICON's patented Delta Joint in the upper control arms, combining the durability of a heavy-duty ball joint with the performance of a traditional uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, robust grease seals to protect against the elements, and metal-on-metal construction for longevity. The greaseable design ensures noise-free operation while providing greater angularity than typical ball joints and more durability than standard uniballs.

Key Benefits:

  • Increased wheel travel and ride quality over stock suspension
  • Bolt-on installation with no cutting or welding required
  • Superior shock damping and control with vehicle-specific tuning
  • Enhanced off-road capability and on-road handling
  • Stronger-than-OE components designed for demanding use

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2003-2009 Lexus GX470; 1968-1973 Pontiac LeMans; 2012-2015 Toyota Prius Plug-In Base

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Mounting Hardware Included

Yes

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Spring Material

Steel

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Shocks Included

Yes

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
