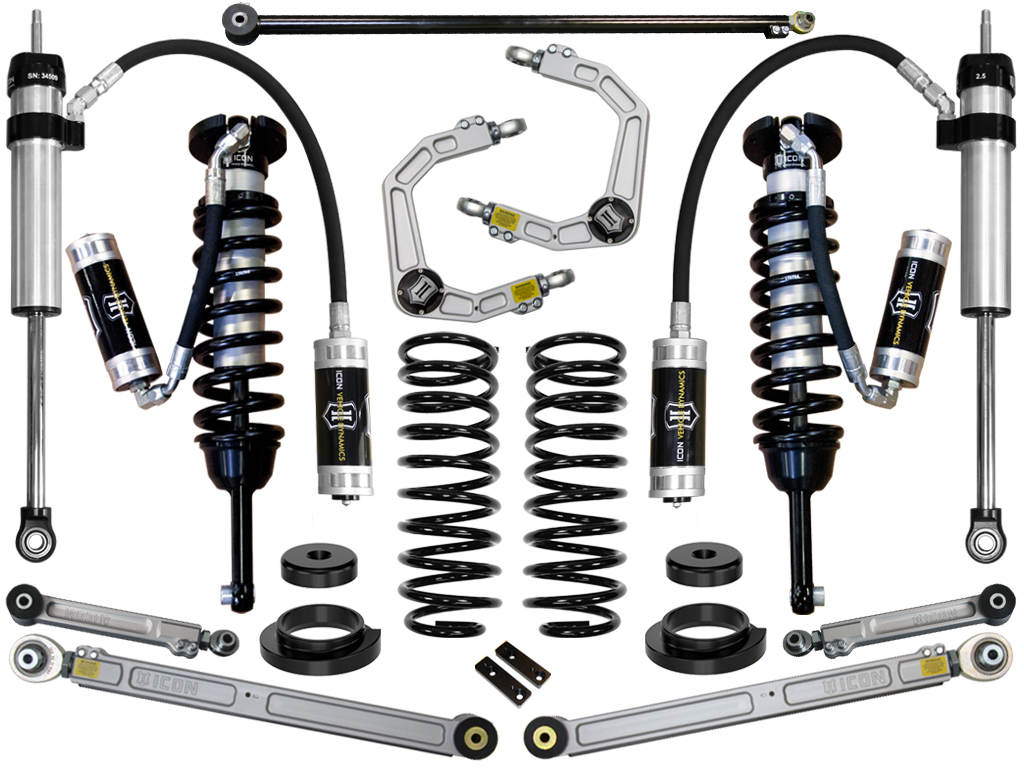

ICON Vehicle Dynamics K53176 Stage 6 Suspension System 0-3.5" Lift Kit with Billet Upper Control Arms

(2003, 2008-2009 Toyota 4Runner Limited; 2003-2007 Toyota 4Runner SR5; 2003-2009 Toyota 4Runner Sport; 2003-2009 Lexus GX470; 1985-1991 Pontiac Grand Am)

Manufacturer

Part Number

K53176
Black Friday Price

$5,914.17

$6,957.85 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 6 Suspension System is a comprehensive performance upgrade for 2003-2009 Lexus GX470 vehicles, delivering 0-3.5 inches of adjustable lift with race-proven components designed for superior on-road comfort and off-road capability.

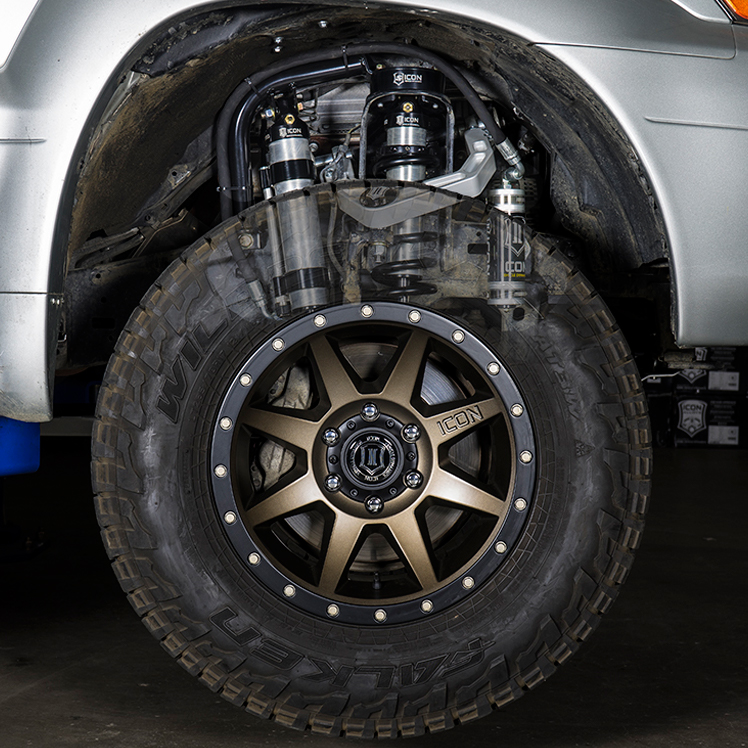

Front Suspension Components:

  • Vehicle-specific tuned 2.5" extended travel coilover shocks with remote reservoirs for improved heat dissipation
  • Height adjustable from 0-3.5" of lift to accommodate larger wheel and tire combinations
  • Billet aluminum Delta Joint upper control arms with on-vehicle alignment adjustment capability
  • Extended wheel travel for improved articulation and ride quality over stock

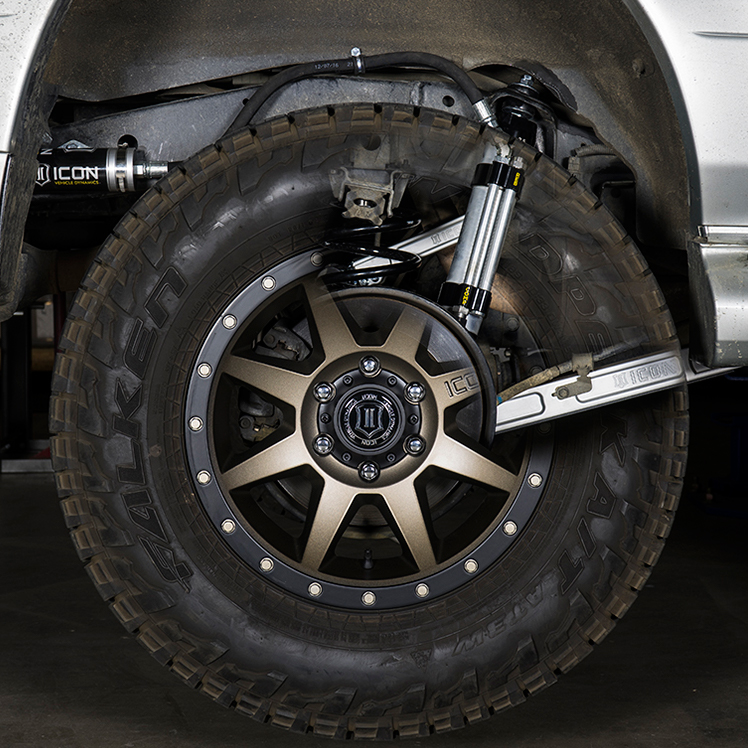

Rear Suspension Components:

  • ICON 2" lift coil springs with vehicle-specific valving for balanced front-to-rear performance
  • 2.5" Aluminum Series remote reservoir shocks with 7/8" shafts and custom tuning
  • Rear coil spring conversion kit eliminates factory air bag system (GX470-specific)
  • Billet aluminum upper and lower links—stronger than OE with on-vehicle pinion angle adjustment
  • Lower links engineered for correct roll steer geometry and optimized handling
  • Adjustable rear track bar for rear axle alignment and KDSS compatibility

ICON Delta Joint Technology:

The included upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a sealed ball joint with the articulation performance of a uniball. The Delta Joint features a zinc-plated corrosion-resistant housing, grease seal protection against contamination, metal-on-metal construction, and greaseable design for long-term, noise-free operation. This design provides greater angularity than traditional ball joints while offering superior weather protection compared to exposed uniballs.

Installation and Performance:

This bolt-on suspension system requires no cutting or welding for installation. The complete Stage 6 kit provides increased wheel travel, improved ride quality, enhanced off-road performance, and superior shock damping control through vehicle-specific tuning. The system is designed for drivers seeking to maximize the capabilities of their GX470 for both daily driving and serious off-road use.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2003, 2008-2009 Toyota 4Runner Limited; 2003-2007 Toyota 4Runner SR5; 2003-2009 Toyota 4Runner Sport; 2003-2009 Lexus GX470; 1985-1991 Pontiac Grand Am

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Shocks Included

Yes

Coils Quantity Front

2

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

OEM Wheels & Tires Fitment

Yes

Grade Type

Performance

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Mounting Hardware Included

Yes

Spring Material

Steel

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH
