ICON Vehicle Dynamics K53175 Stage Suspension System Lift Lexus - 5 0-3.5 GX470

(2003-2009 Lexus GX470; 2000-2003 Volvo S40 Base; 2004 Volvo S40 i/T5; 1984-1989 Toyota Van)

Manufacturer

Part Number

K53175
Black Friday Price

$5,035.02

$5,923.55 Save 15%

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

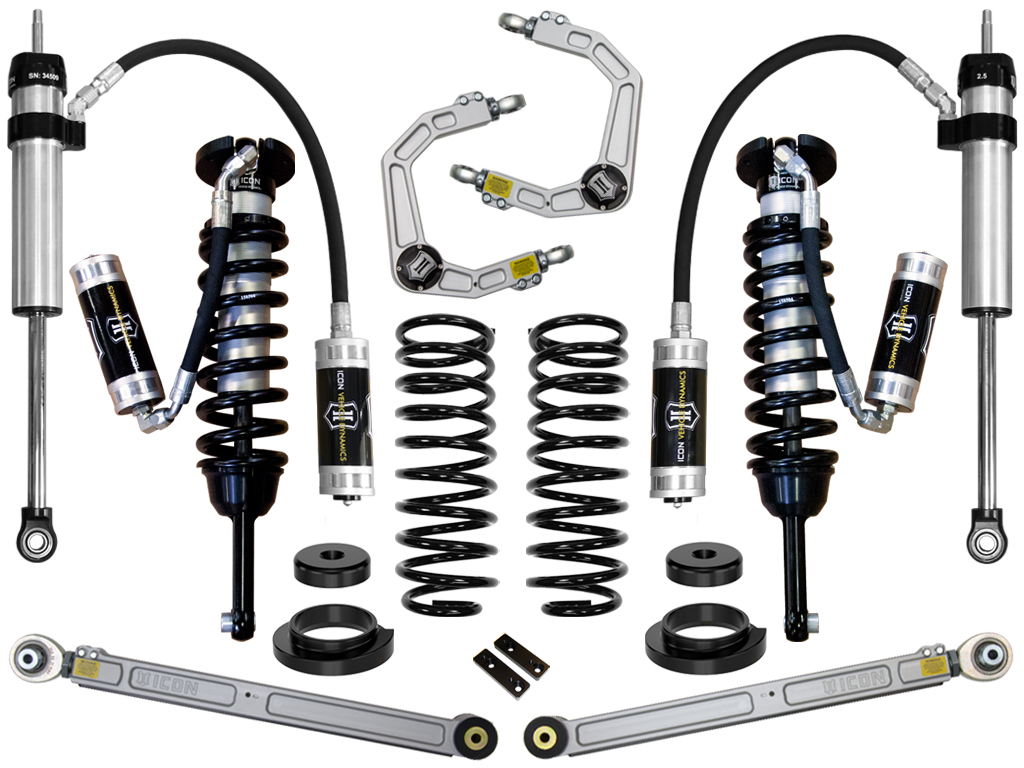

The ICON Vehicle Dynamics Stage 5 Suspension System transforms the 2003-2009 Lexus GX470 into a capable on-road and off-road performer with 0-3.5" of adjustable lift height. This comprehensive system combines advanced coilover technology with strengthened control arms and a complete rear suspension upgrade for balanced performance.

Front Suspension Components:

  • Vehicle-specific tuned 2.5" aluminum coilover shocks with remote reservoirs for superior heat dissipation
  • Height adjustable from 0-3.5" of lift to accommodate larger, more aggressive wheel and tire combinations
  • Billet aluminum Delta Joint upper control arms with on-vehicle adjustment capability
  • Extended wheel travel design improves ride quality over stock suspension

Rear Suspension Components:

  • 2.5" Aluminum Series remote reservoir shocks with 7/8" shafts and vehicle-specific valving
  • ICON 2" lift coil springs tuned to balance front-to-rear performance
  • Complete coil spring conversion kit eliminates factory air suspension system
  • Billet aluminum lower links provide increased strength over OE units and improved articulation
  • Adjustable lower links optimize pinion angle and correct roll steer geometry for better handling

Delta Joint Technology:

The included upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance and a grease seal that keeps contaminants out. Its metal-on-metal construction and greaseable design ensure longevity and noise-free operation while providing greater angularity than typical ball joints and more weather protection than standard uniballs.

This Stage 5 system delivers extended wheel travel, superior shock damping and control, and the versatility to dial in alignment settings for optimal performance whether you're on the highway or tackling challenging off-road terrain.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2003-2009 Lexus GX470; 2000-2003 Volvo S40 Base; 2004 Volvo S40 i/T5; 1984-1989 Toyota Van

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

OEM Wheels & Tires Fitment

Yes

Spring Material

Steel

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Shocks Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Mounting Hardware Included

Yes

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
