ICON Vehicle Dynamics K53174 Stage Suspension System Lift Lexus - 4 0-3.5 GX470

(2014-2019 Toyota Corolla; 2003-2009 Lexus GX470; 1981-1989 Plymouth Reliant)

Manufacturer

Part Number

K53174
Black Friday Price

$4,732.25

$5,567.35 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 4 Suspension System transforms the 2003-2009 Lexus GX470 with a complete suspension upgrade designed for enhanced on-road handling and serious off-road capability. This comprehensive system delivers 0-3.5" of adjustable lift height, extended wheel travel, and vehicle-specific tuning for superior performance in all conditions.

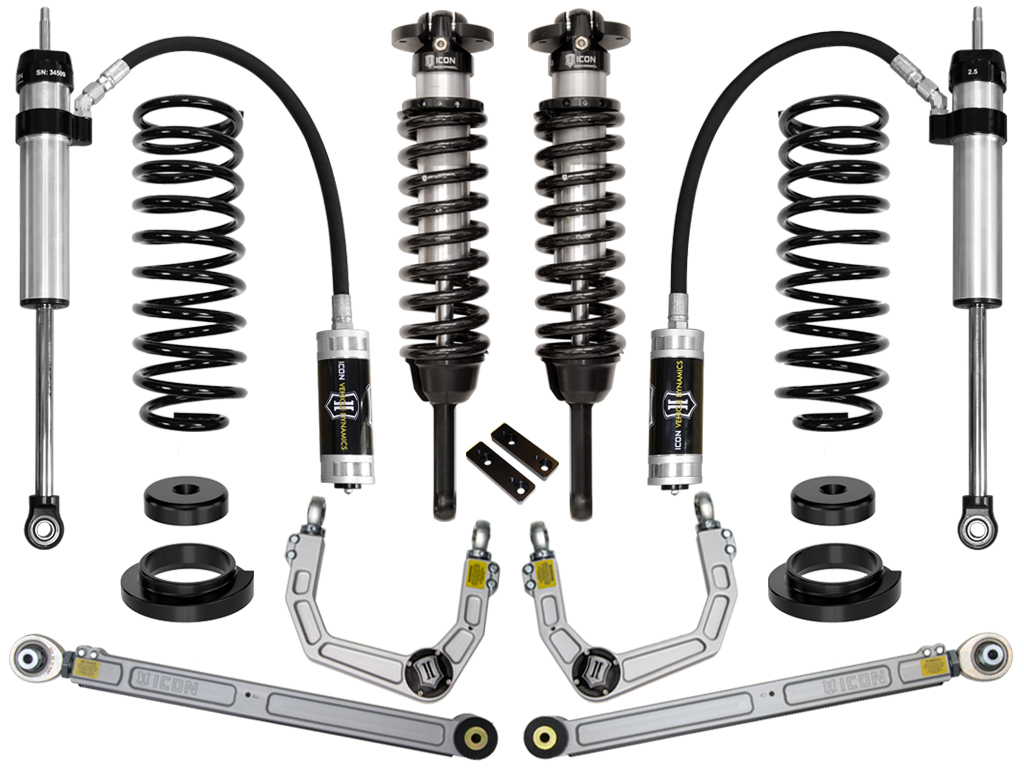

Key Components:

  • 2.5" coilover shocks with internal reservoirs and adjustable height from 0-3.5" of lift
  • Billet aluminum Delta Joint upper control arms with on-vehicle alignment adjustment
  • 2.5" Aluminum Series rear remote reservoir shocks with 7/8" shafts and vehicle-specific valving
  • ICON 2" lift rear coil springs with included coil conversion kit to eliminate factory air suspension
  • Billet aluminum adjustable lower links with optimized roll steer geometry

Delta Joint Technology:

This system features ICON's patented Delta Joint upper control arms, combining the durability of a heavy-duty ball joint with the high-angle performance of a uniball. The zinc-plated housing provides corrosion resistance, while a robust grease seal protects against the elements. The greaseable metal-on-metal construction ensures long-term, noise-free operation with greater angularity than traditional ball joints and better protection than standard uniballs.

Performance Benefits:

  • Increased wheel travel and ride quality compared to stock suspension
  • Extended travel coilovers allow for larger, more aggressive wheel and tire combinations
  • Billet aluminum lower links improve articulation and are stronger than OE units
  • Adjustable pinion angle optimization while installed on vehicle
  • Optimized roll steer geometry for improved handling on and off-road
  • Vehicle-specific shock valving for superior damping and control

The Stage 4 system is the ideal choice for GX470 owners seeking maximum capability without sacrificing daily drivability, offering professional-grade suspension performance for both pavement and trail use.

California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2014-2019 Toyota Corolla; 2003-2009 Lexus GX470; 1981-1989 Plymouth Reliant

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Shocks Included

Yes

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

OEM Wheels & Tires Fitment

Yes

Mounting Hardware Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Spring Material

Steel

Coils Quantity Front

2

Grade Type

Performance

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset
