ICON Vehicle Dynamics K53173 Stage 3 Suspension System 0-3.5" Lift Billet UCA

(2003, 2005-2009 Toyota 4Runner Sport; 2003, 2008-2009 Toyota 4Runner Limited; 2003-2007 Toyota 4Runner SR5; 1970-1981 Pontiac Firebird; 2003-2009 Lexus GX470)

Manufacturer

Part Number

K53173
Black Friday Price

$4,022.58

$4,732.45 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

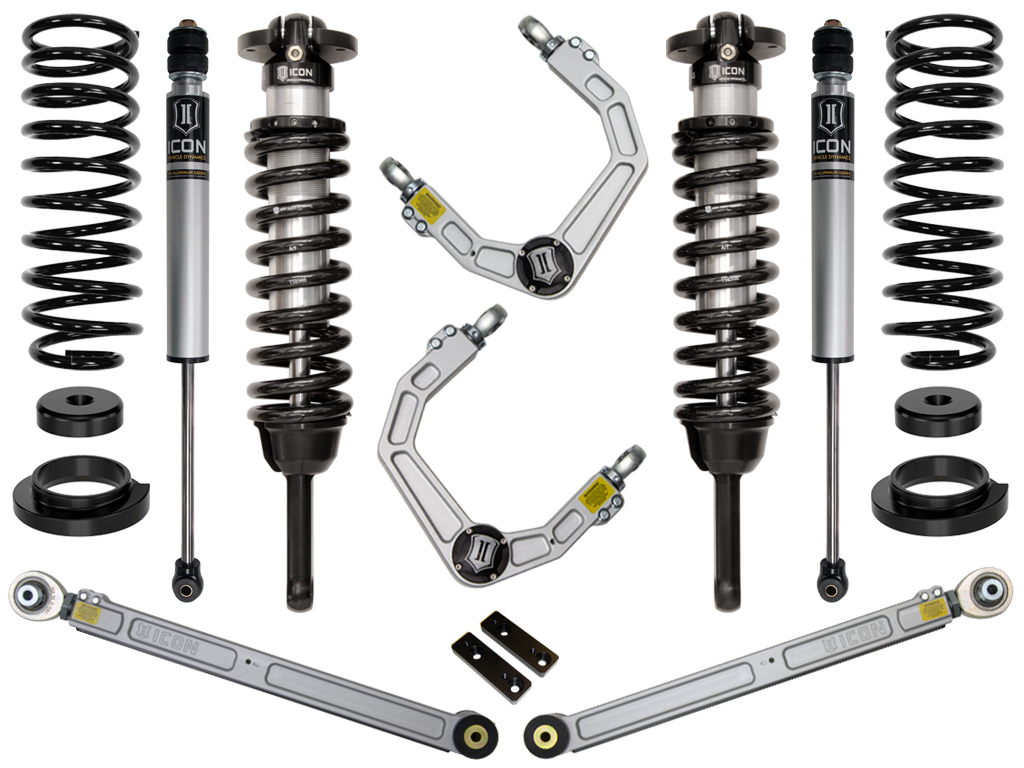

The ICON Vehicle Dynamics Stage 3 Suspension System transforms the 2003-2009 Lexus GX470 with a comprehensive upgrade designed for both on-road comfort and off-road performance. This complete system provides 0-3.5" of adjustable lift height, increased wheel travel, and vehicle-specific tuning for superior handling in all conditions.

Key Features:

  • Vehicle-specific tuned 2.5" coilover shocks with internal reservoirs for precise damping control
  • Billet aluminum Delta Joint upper control arms with on-vehicle alignment adjustment capability
  • Height adjustable coilovers provide 0-3.5" of lift to accommodate larger wheel and tire combinations
  • 2.0" Aluminum Series internal reservoir rear shocks with vehicle-specific valving
  • Billet aluminum rear lower links offer increased strength and on-vehicle pinion angle adjustment
  • Rear coil spring conversion kit eliminates factory air bags for improved reliability
  • Improved articulation and corrected roll steer geometry for enhanced handling

Patented Delta Joint Technology:

This system features ICON's patented Delta Joint (U.S. Pat. 10,731,700), a revolutionary heavy-duty high-angle ball joint that combines the durability and weather resistance of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, robust grease seals to protect against the elements, and metal-on-metal construction for long-lasting, noise-free operation. The greaseable design ensures extended service life while delivering greater angularity than typical ball joints and better weather protection than standard uniballs.

The Stage 3 system delivers increased wheel travel and ride quality over stock components, making it an excellent choice for GX470 owners seeking to enhance their vehicle's capabilities for both daily driving and off-road adventures.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2003, 2005-2009 Toyota 4Runner Sport; 2003, 2008-2009 Toyota 4Runner Limited; 2003-2007 Toyota 4Runner SR5; 1970-1981 Pontiac Firebird; 2003-2009 Lexus GX470

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Coils Quantity Rear

2

Spring Rate

650

Bushings Included

Yes

Mounting Hardware Included

Yes

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” Backspace / 0mm Offset

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5” Backspace / 0mm Offset

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Shocks Included

Yes

Coils Quantity Front

2
