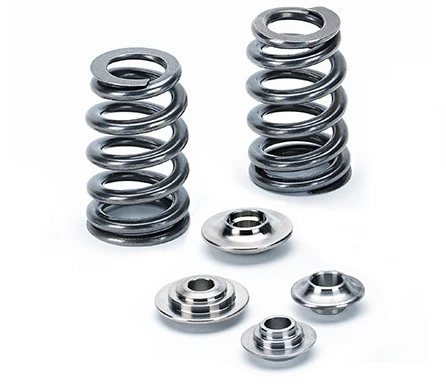

Supertech Performance SPRK-FE20N54-BE2 Conical Valve Spring Kit BMW N54 N55 S55 Turbo

Manufacturer

Part Number

SPRK-FE20N54-BE2
Sale Price

$833.80

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Supertech Performance SPRK-FE20N54-BE2 is a high-performance conical valve spring kit designed specifically for BMW N54, N55, and S55 turbocharged 3.0L engines. This complete valvetrain upgrade kit provides enhanced durability and performance for high-RPM applications, making it ideal for turbocharged and performance builds.

Key Features:

  • Complete kit includes 24 beehive/conical valve springs and 24 titanium retainers
  • Higher 88 lbs seat pressure @ 36.5mm for increased performance over standard BE version
  • Manufactured from premium super clean Chrome Silicon Vanadium Steel alloy
  • CNC-machined titanium retainers for precision fit and reduced weight
  • Computer-designed to maintain optimal wire stress levels and controlled harmonics
  • Spring rate of 7.25 lbs/mm with maximum lift capacity of 12mm
  • Open pressure: 160 lbs @ 10mm lift
  • Coil bind at 23.2mm for improved valve control

Kit Contents:

  • 24x SPR-FE20N54-BE-2 conical valve springs
  • 12x RET-BMN54-TI titanium retainers (5mm) for intake valves
  • 12x RET-BMN54-TE titanium retainers (6mm) for exhaust valves

Technical Specifications:

  • Seat Pressure: 88 lbs @ 36.5mm
  • Open Pressure: 160 lbs @ 10mm
  • Spring Rate: 7.25 lbs/mm
  • Maximum Lift: 12mm
  • Coil Bind: 23.2mm
  • Outer Spring OD: 24.4mm
  • Outer Spring ID: 17.6mm
  • Inner Spring OD: 21mm
  • Inner Spring ID: 14.2mm

The BE2 variant offers higher seat pressure (88 lbs vs 75 lbs) compared to the standard BE version, making it better suited for aggressive camshaft profiles and higher boost applications. This kit uses factory valve stem seals and provides superior structural memory and extreme-condition durability. Supertech's computer-designed spring geometry ensures wire stress levels remain within safe limits while maintaining controlled harmonics throughout the RPM range, giving your performance engine a competitive advantage in both power output and reliability.
