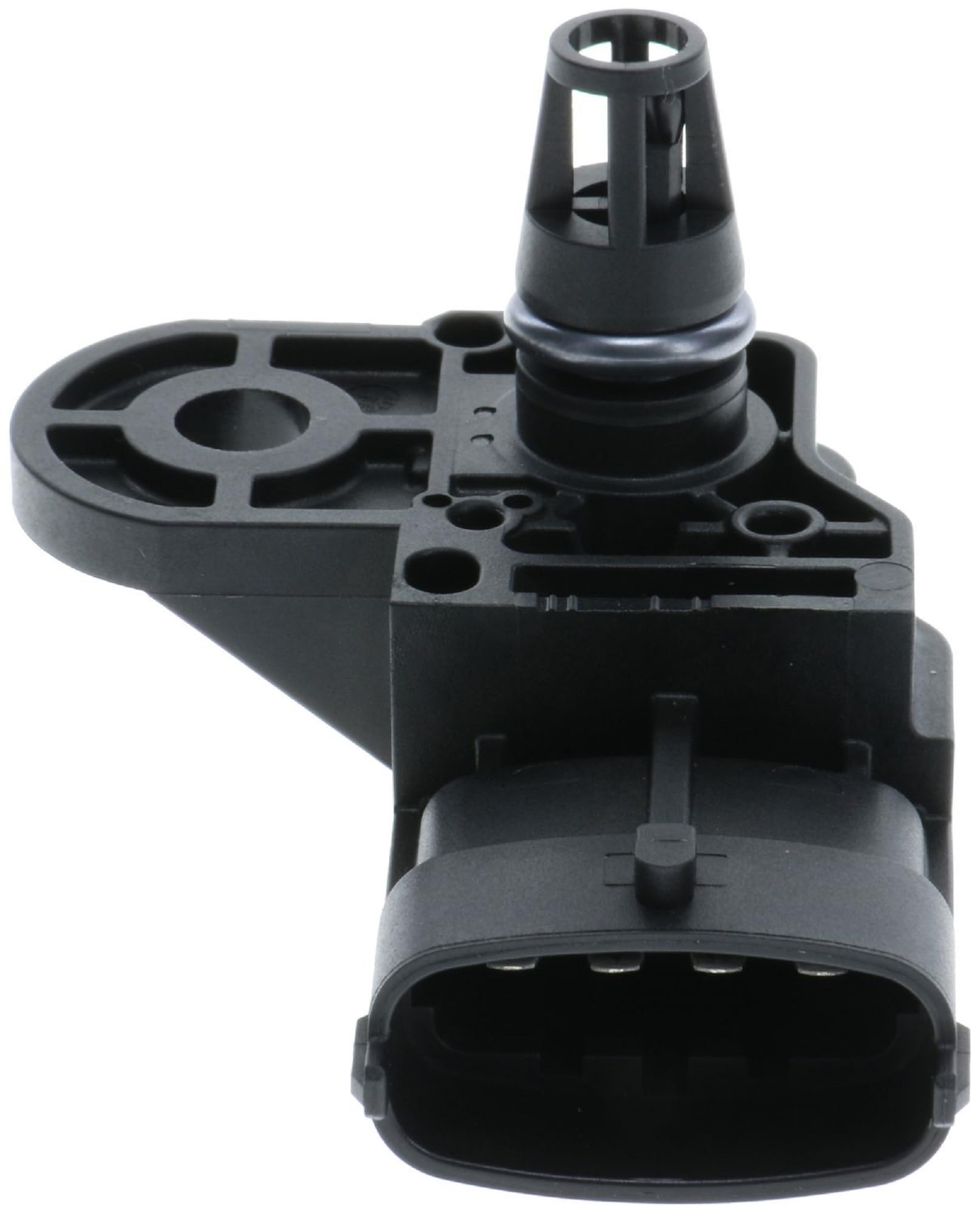

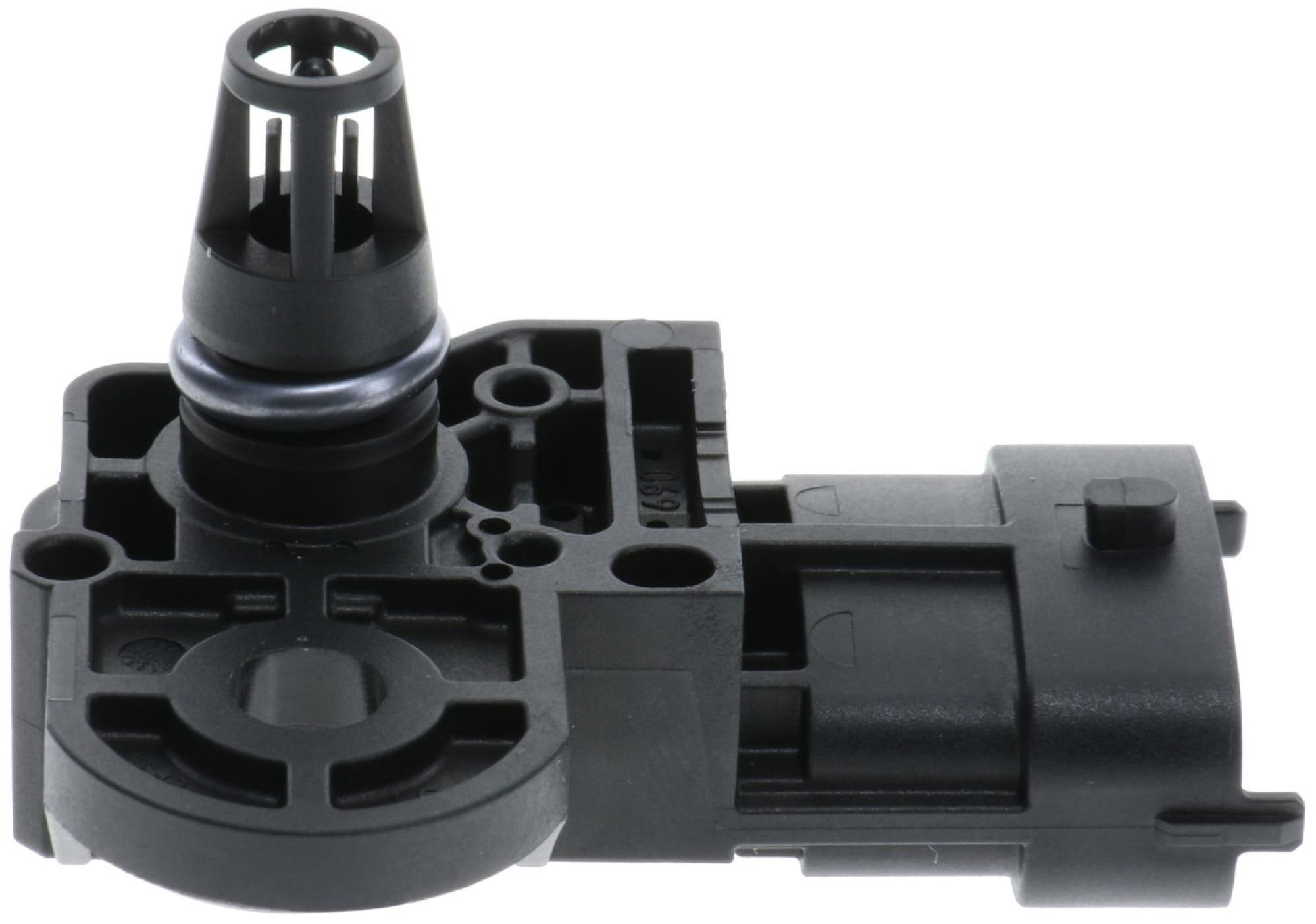

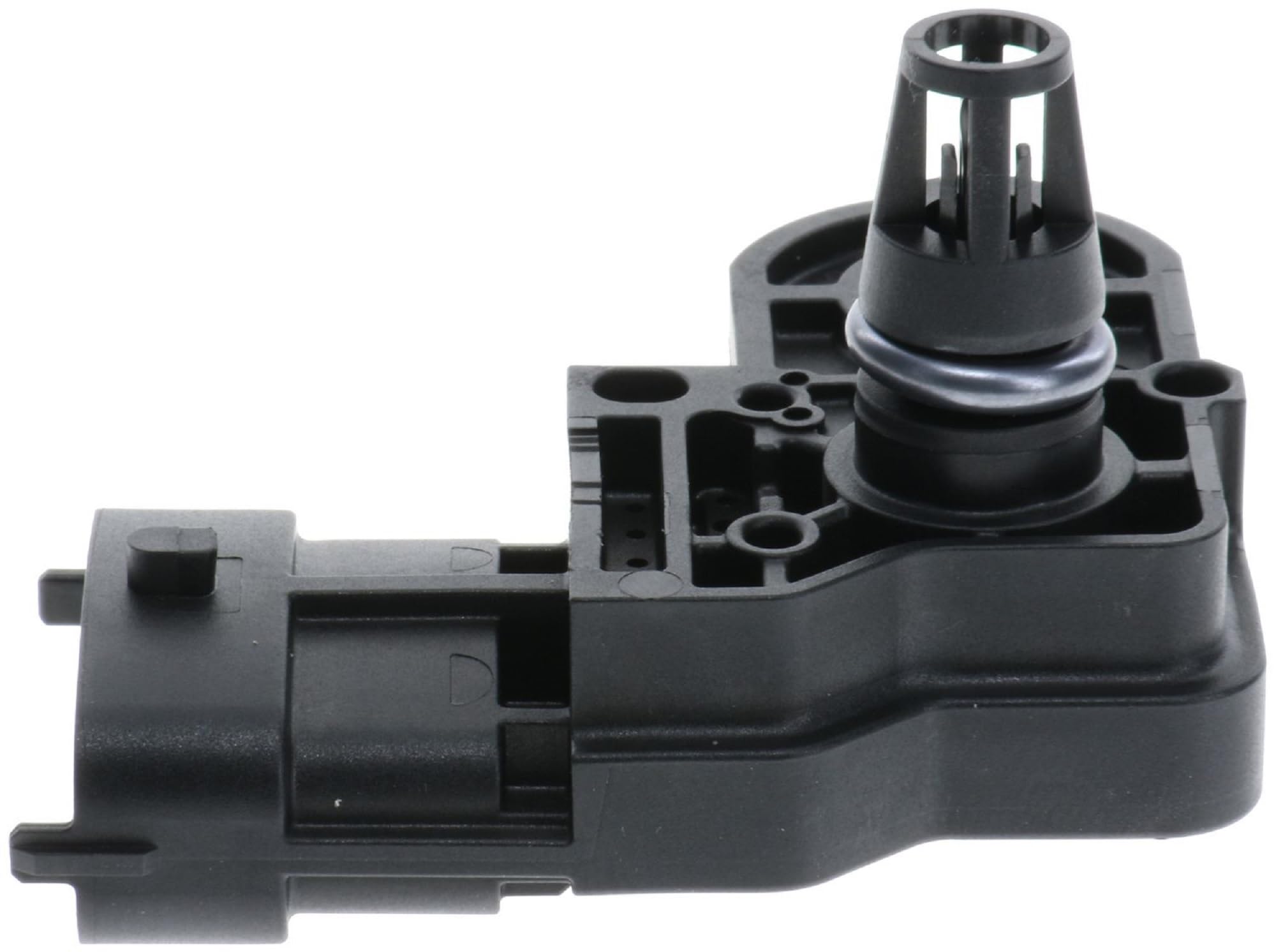

Bosch 0261230429 Manifold Absolute Pressure MAP Sensor with Integrated Temperature Sensor

The Bosch 0261230429 is a precision-engineered Manifold Absolute Pressure (MAP) sensor with an integrated air temperature sensor (NTC), also known as a T-MAP sensor. This sensor features a measuring range of 0.2 to 3.0 bar (20 kPa to 300 kPa), making it suitable for both naturally aspirated and forced induction engine applications.

Key Features:

• 4-pin connector configuration with integrated air temperature sensor
• Supply voltage range: 4.75V to 5.25V
• Accurate measurements with high durability, fast response time and wide measuring range
• Extremely sturdy design with special coatings for resistance to harmful chemicals inside the intake manifold
• Manufactured in Germany to OE quality standards

MAP sensors measure inlet manifold pressure to provide an indication of engine load and are generally used in Speed/Density or Manifold Pressure Controlled engine management systems that do not use an Air Flow/Mass Sensor. The integrated temperature sensor provides simultaneous air temperature data for precise fuel and ignition mapping. This dual-function design is ideal for performance tuning applications and standalone ECU installations.

Cross-Reference OEM Numbers: 0261230280, 0261230281, 0261230431, 0261230432, EL8A-9F479-CA, HY53-12B676-AA, 5094154
