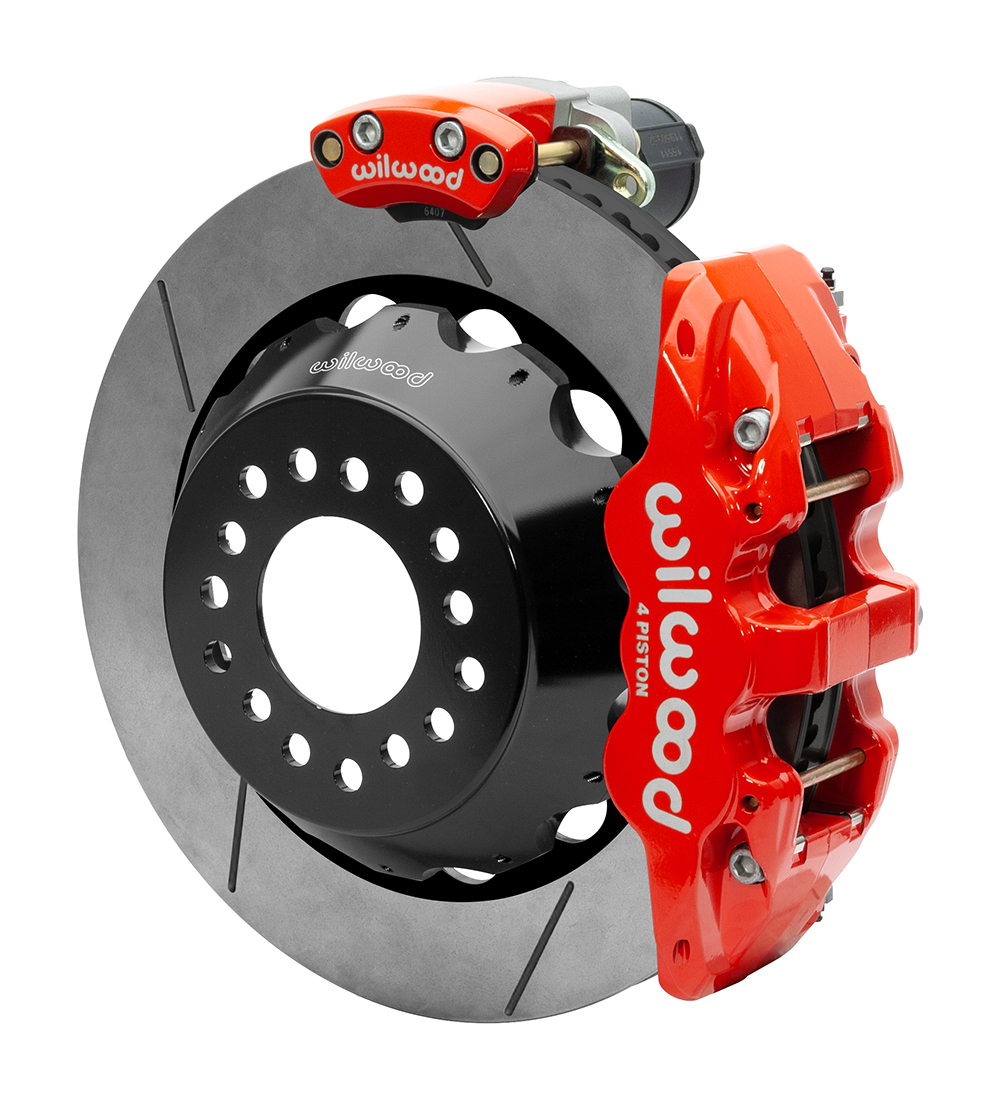

Wilwood 140-15846-R AERO4 Rear Electronic Parking Brake Kit 14in Slotted Rotor Big Ford 2.5in Offset Red

The Wilwood 140-15846-R AERO4 Big Brake Rear Electronic Parking Brake Kit delivers ultimate stopping power and modern convenience for muscle car rear axles requiring a parking brake. This kit provides the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake, making it an ideal complement to front big brake upgrades on custom, show, and high-performance street machines.

Key Features:

• Forged Narrow Superlite 4R (FNSL4R) radial mount calipers with red powder coat finish and four-piston design for maximum clamping force
• 14.00-inch rotor diameter with 1.10-inch rotor width featuring GT slotted two-piece construction for superior heat dissipation
• BP-20 compound brake pads included for superior grip, longer wear, and wider operating temperature range
• Electronic Parking Brake caliper provides static high torque holding power for parking without mechanical cabling
• EPB system provides 2400 plus pounds of clamping force with zero voltage or amp draw after actuated
• Supplied with control unit and harness assembly to simplify installation and use
• Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc

Application Specifications:

• Rear End: Big Ford New Style
• Axle Offset: 2.50 inches
• Designed for 5 x 4.50 in., 5 x 4.75 in., or 5 x 5.00 in. bolt patterns
• Minimum recommended wheel diameter: 18 inches
• Caliper Material: Forged billet aluminum
• Caliper Finish: Red powder coat

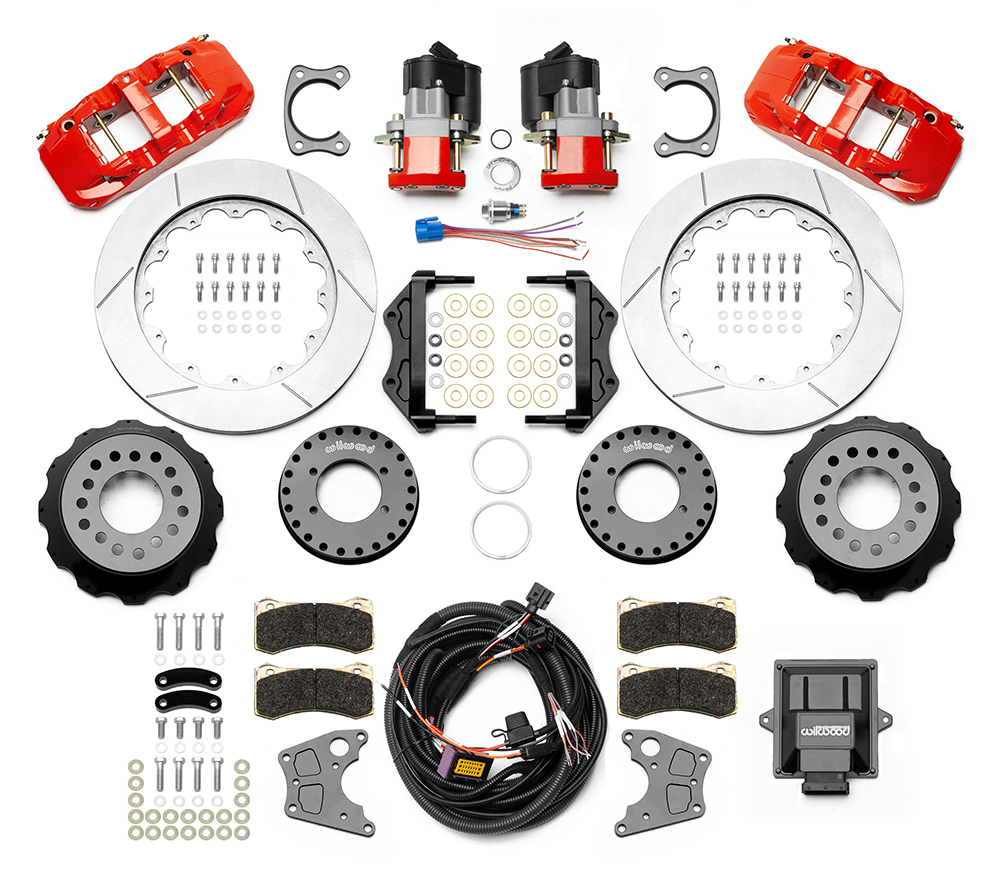

This complete bolt-on brake conversion kit includes mounting brackets, hardware, calipers, rotors, brake pads, electronic parking brake control unit, and wiring harness. Brake lines are not included and must be purchased separately. These calipers integrate Big Brake style with Wilwood's latest technology to generate big stopping power in extreme environments across a broad range of vehicle applications.
