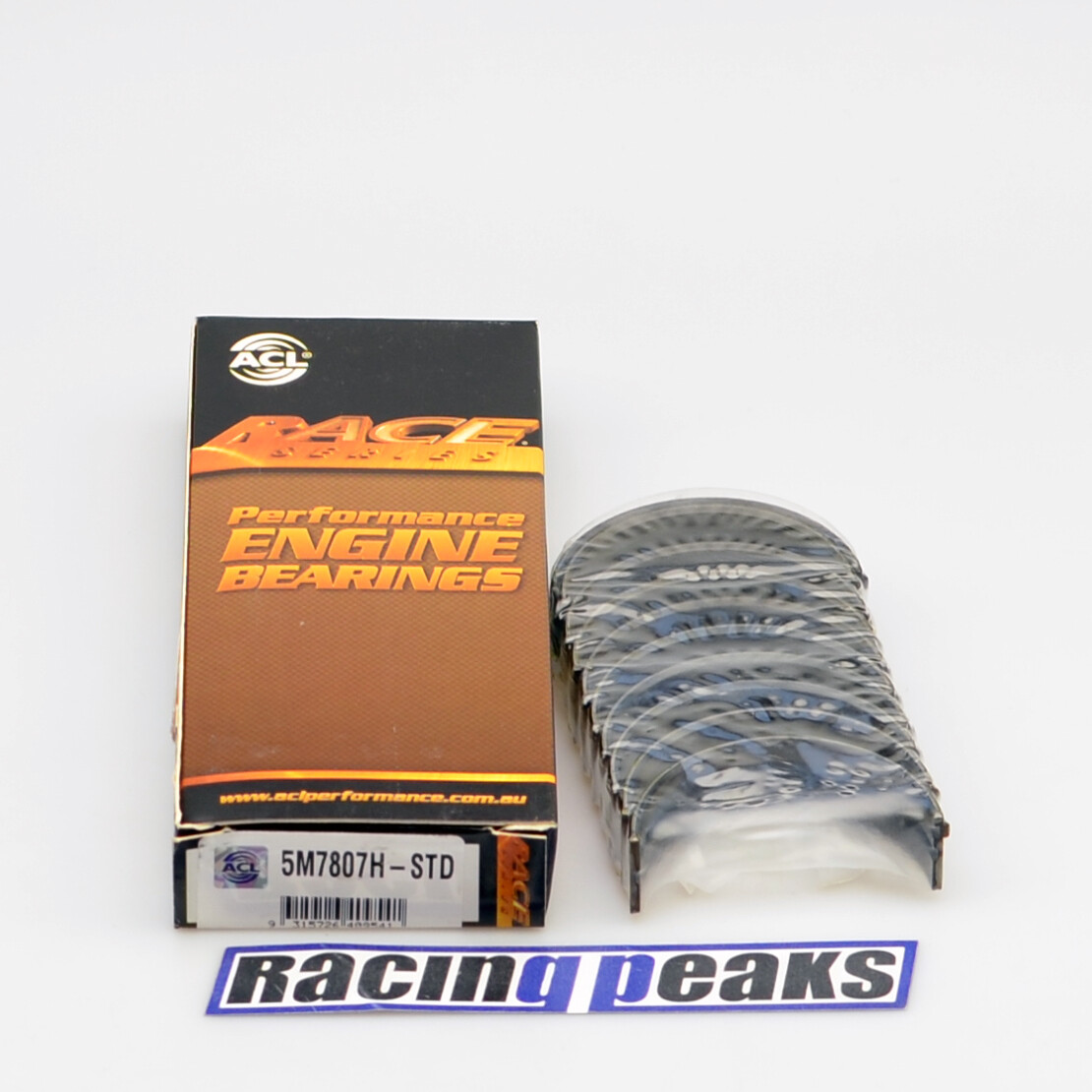

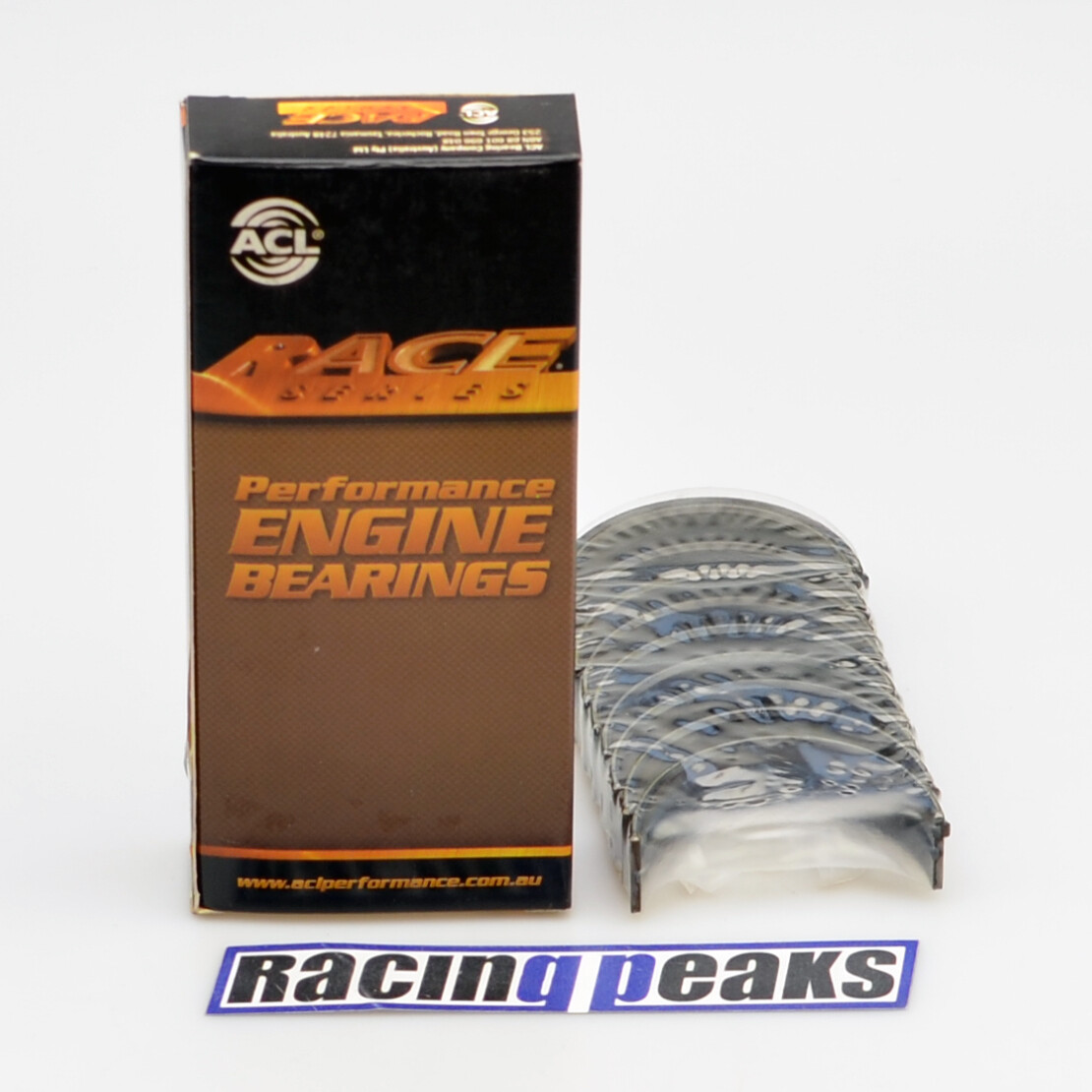

ACL 5M7807HX-STD Race Series Main Bearing Set for Renault 1.6L-2.0L F-Series Engines

Manufacturer

Part Number

5M7807HX-STD
Black Friday Price

$110.23

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL 5M7807HX-STD Race Series Main Bearing Set delivers premium tri-metal construction engineered for high-performance and racing applications in Renault F-series engines. Designed to withstand elevated RPM conditions and increased loads, these main bearings are built to championship-winning standards.

Key Features:

  • High-strength overlay plate with reduced thickness for superior fatigue resistance
  • Hardened steel backing for improved bearing retention and housing support
  • Elimination of flash plating on bearing backs for enhanced heat transfer and grip
  • Increased eccentricity to compensate for bore distortion at high RPM
  • 3/4 grooved design for optimized load distribution and oil flow to rod bearings
  • HX designation provides an additional 0.001" (0.025mm) oil clearance versus standard H-series
  • Standard bore size for unmodified crankshafts
  • 10-piece complete main bearing set
  • Manufactured in Australia by ACL Race Series

Applications: Compatible with Renault F-series engines including F1N, F2N, F2R, F3N, F3P, F3R, F7P, F7R, F4R, F8M, and F8Q engines. Fits 1.2L, 1.4L, 1.6L, 1.7L, 1.8L, 1.9L, and 2.0L configurations found in Renault Clio, R19, R21, Mégane, Scénic, Laguna, Kangoo, Express, and Trafic models.

Advanced Race Engineering: ACL Race Series bearings feature unique tri-metal construction without cosmetic tin flash plating, preventing plate migration under high loads and heat. The HX-STD designation indicates bearings with 0.0005" (0.013mm) thinner wall thickness compared to H-STD bearings, providing precisely controlled oil clearance for performance applications. These bearings are proven in Formula 1, NASCAR, IHRA, and NHRA racing environments.

OEM Cross References: Replaces Renault part numbers 7700740980, 7700740984, 7701349570, 35925J, 35925, 35926J, 35926. Interchange with 5M9444, MS-1603AL, 6613M, 7175M, H1080/5, 77090608, 021HS20010000, MB5180XP, MB5180AM.

Recommended oil clearance: 0.00075" - 0.001" per inch of journal diameter plus 0.0005" (0.020-0.025mm per 25mm plus 0.013mm). ACL Race Series bearings can be selectively fitted with H-STD bearings to fine-tune clearances in 0.0005" increments. For optimal performance and longevity, always verify bearing clearances with plastigage or micrometers during installation.

Products specifications

Size

Standard
