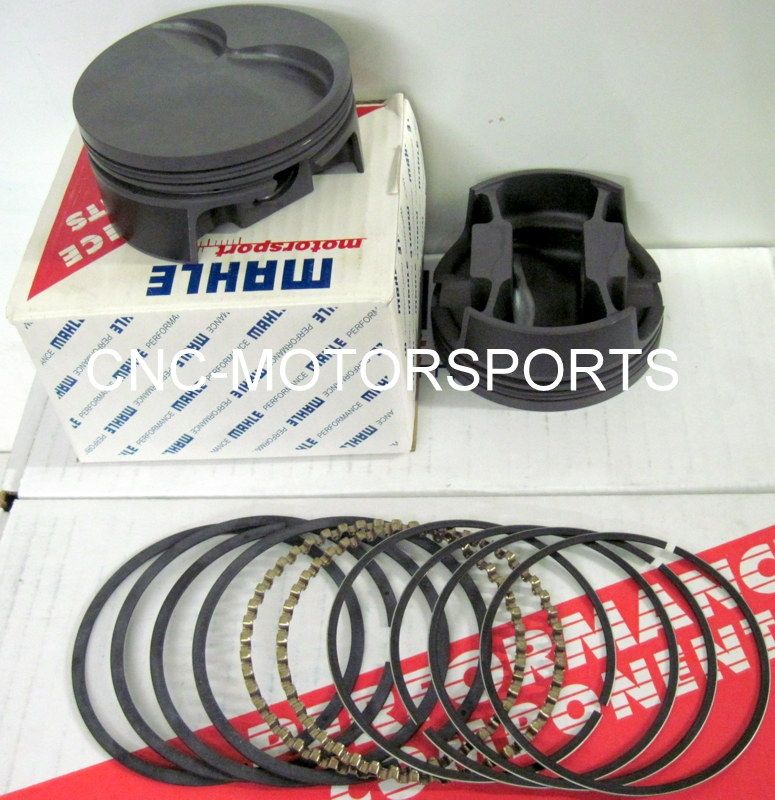

MAHLE 930227530 LSX Combo PowerPak Piston & Ring Kit 408ci 4.030 Bore 10.9CR 2618 Alloy

Manufacturer

Part Number

930227530
Black Friday Price

$748.29

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

MAHLE Motorsports 930227530 is a complete LSX Combo PowerPak piston and ring kit designed for GM LS-based 408ci stroker builds. These pistons were engineered for high-output, naturally aspirated, and power-adder applications with versatility and budget in mind. The combination valve pocket design accommodates LS1, LS3, and LS7 cylinder heads, providing exceptional build flexibility.

These MAHLE PowerPak pistons are forged from 2618 aluminum alloy, allowing for increased detonation resistance — making them an ideal choice for boosted, nitrous, or high-compression naturally aspirated applications.

Key Specifications:

  • Displacement: 408 cubic inches
  • Bore Diameter: 4.030 in.
  • Compression Height (RCH): 1.110 in.
  • Stroke: 4.000 in.
  • Rod Length: 6.125 in.
  • Pin Diameter: 0.927 in.
  • Dome Volume: -5.8cc (flat top with valve reliefs)
  • Piston Weight: 423 grams each
  • Compression Ratio: 10.9:1
  • Alloy: 2618 Forged Aluminum

Features & Benefits:

  • Dual phosphate coating provides a dry lubricant film in pin bores and ring grooves, protecting against galling and micro-welding during initial start-up and break-in.
  • MAHLE's proprietary Grafal anti-friction coating is applied to each piston skirt to reduce wear, drag, scuffing, friction, and piston noise.
  • LSX Combo valve pockets are compatible with LS1/LS2/LS6 cathedral port heads and LS3/L92 rectangular port heads.
  • Each PowerPak kit includes hand-deburred forged pistons, high-quality steel pins, round wire locks, and low-drag performance rings.
  • The piston crown is machineable, allowing for custom compression ratio tuning.

The MAHLE 930227530 is engineered for serious LS stroker engine builds demanding reliability and performance under extreme conditions.

Products specifications

Rings Included

Yes

Piston Style

Flattop, With 2 valve reliefs

Piston Mass

423g

Coatings

Phosphate plus Grafal

Crown Vol

-5.8cc

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Pins Included

Yes

Piston Kit Quantity

Sold as a set of 8

Pin Diameter

0.927

Pin Style

Floating

Piston Material

Forged, 2618

Clips Included

Yes

Clip Style

Round Wire

Pin Material

Steel
