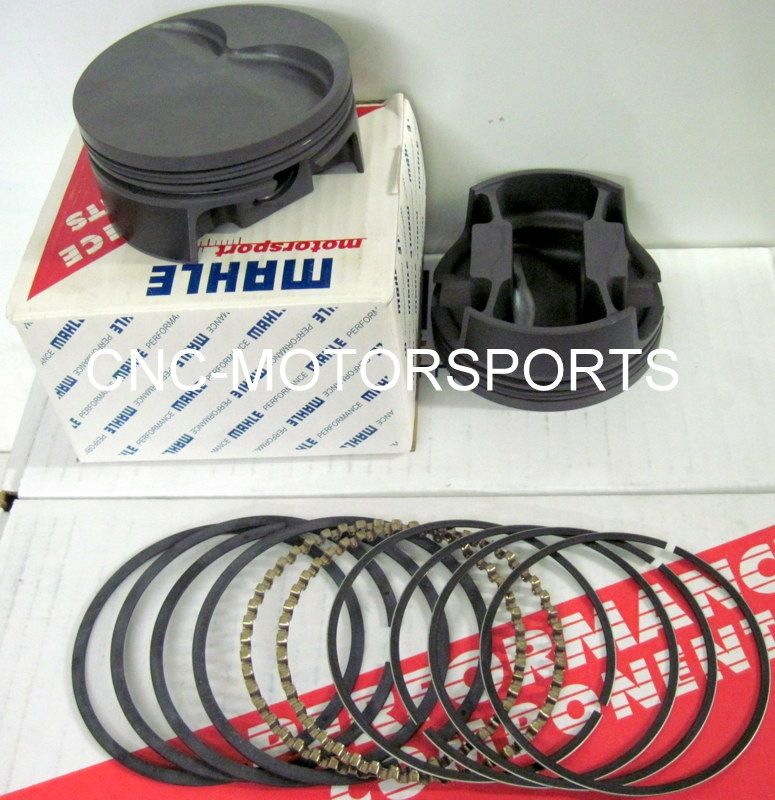

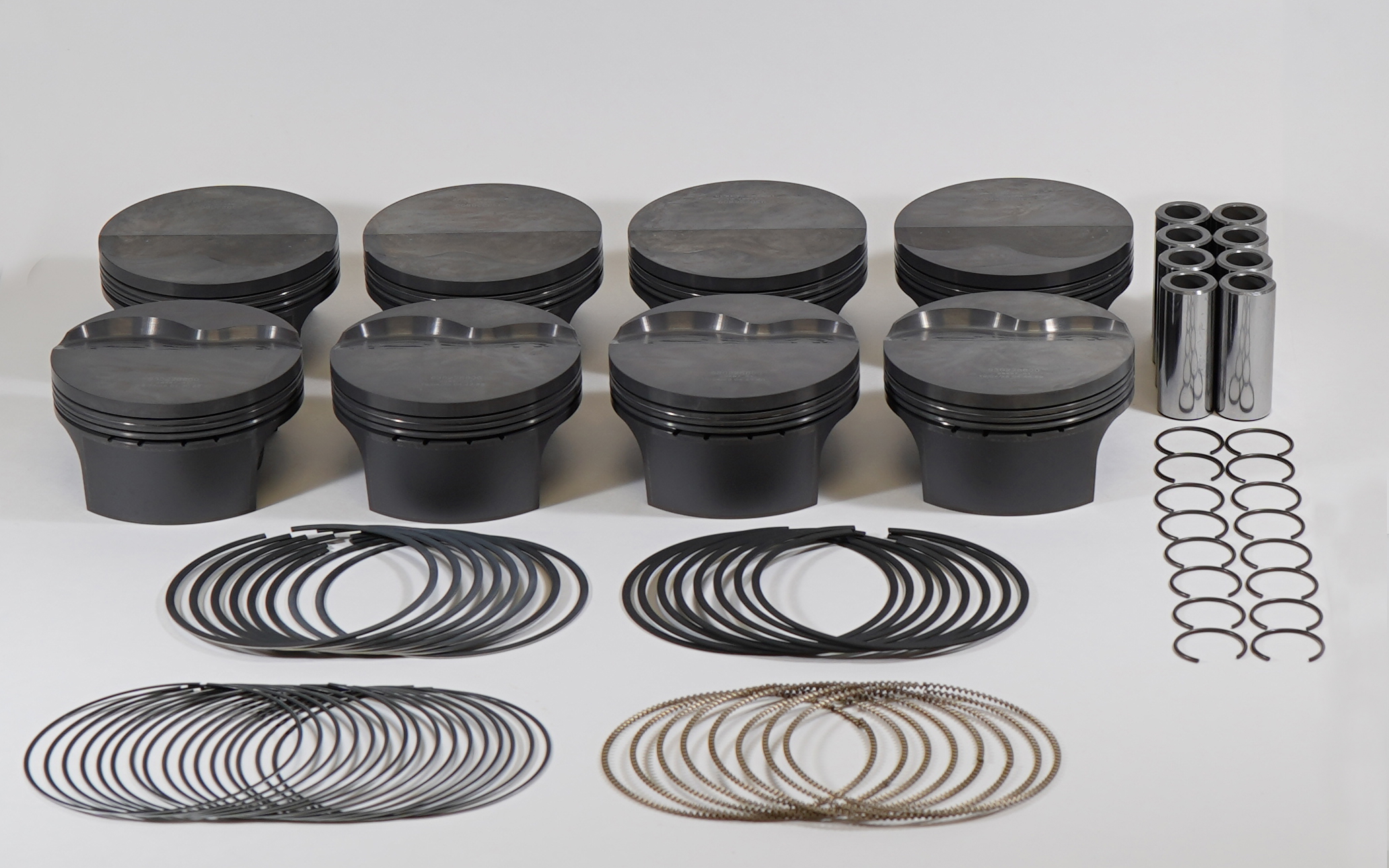

MAHLE 930226935 LSX Combo PowerPak Piston & Ring Kit 4.135 Bore Flat Top 2618 Alloy

Manufacturer

Part Number

930226935
Black Friday Price

$726.66

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930226935 is an LSX Combo PowerPak Piston and Ring Kit engineered for GM LS-platform engine builds demanding high output performance. Forged from 2618 aluminum alloy, these flat-top pistons deliver superior detonation resistance and thermal strength for naturally aspirated, nitrous, supercharged, and turbocharged applications. With a 4.135-inch bore, 3.622-inch stroke, and 10.4:1 compression ratio at -5.8cc, this kit is purpose-built for serious street and race engine combinations targeting approximately 389 cubic inches of displacement.

A standout feature of the LSX Combo design is the universal combination valve pocket that accommodates LS1/LS2/LS6-style cathedral port heads, LS3/L92-style rectangular port heads, and LS7-style cylinder heads—giving engine builders maximum flexibility when selecting or switching cylinder heads without needing a different piston.

Key Features:

  • Forged 2618 aluminum alloy construction for increased detonation resistance and high-temperature strength
  • Flat top piston crown with -5.8cc valve reliefs and 10.4:1 compression ratio
  • Universal LSX combo valve pockets compatible with LS1, LS3, and LS7 style cylinder heads
  • Slipper skirt forging with MAHLE's proprietary Grafal anti-friction coating to reduce drag, scuffing, friction, and piston noise
  • Dual phosphate dry lubricant coating on pin bores and ring grooves to prevent galling and micro-welding during initial startup and break-in
  • Includes high-strength steel wristpins and round wire-lock retainers
  • Includes performance ring set: moly-coated ductile iron top ring, cast iron secondary ring, and stainless steel oil control ring
  • Hand-deburred, fully machined crowns with CNC-finished pin bores

Specifications:

  • Displacement: 389 CID
  • Bore: 4.135 in.
  • Stroke: 3.622 in.
  • Rod Length: 6.125 in.
  • Compression Height: 1.304 in.
  • Pin Diameter: 0.927 in.
  • Dome/Dish Volume: -5.8cc (Flat Top)
  • Piston Weight: 483 grams (per piston)
  • Compression Ratio: 10.4:1
  • Alloy: 2618 Forged Aluminum

The MAHLE PowerPak line is race-proven across circle track, drag racing, and high-performance street builds. Each kit represents MAHLE's commitment to precision machining, advanced coatings technology, and over 100 years of motorsport engineering heritage.

Products specifications

Piston Material

Forged, 2618

Coatings

Phosphate plus Grafal

Pin Diameter

0.927

Pin Style

Floating

Rings Included

Yes

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Crown Vol

-5.8cc

Pins Included

Yes

Clips Included

Yes

Clip Style

Round Wire

Piston Kit Quantity

Sold as a set of 8

Piston Style

Flattop, With 2 valve reliefs

Piston Mass

483g

Pin Material

Steel
