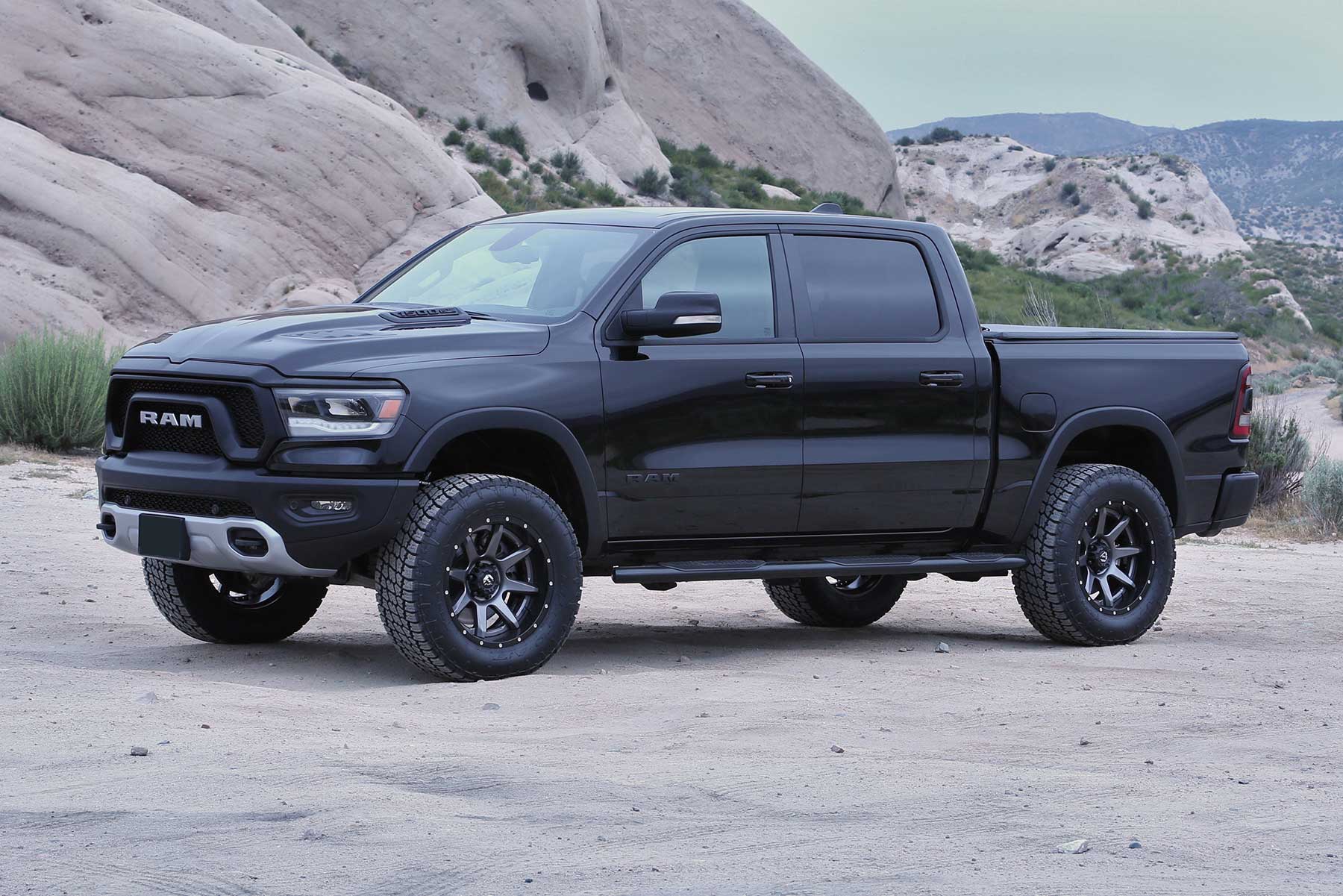

The Fabtech K3168M is a complete 3-inch lift system engineered specifically for 2019-2020 Ram 1500 Rebel trucks, combining upgraded suspension components with Stealth monotube shocks for superior on-road comfort and off-road capability. This system provides clearance for 35-inch tires while maintaining the factory turning radius and ride quality.

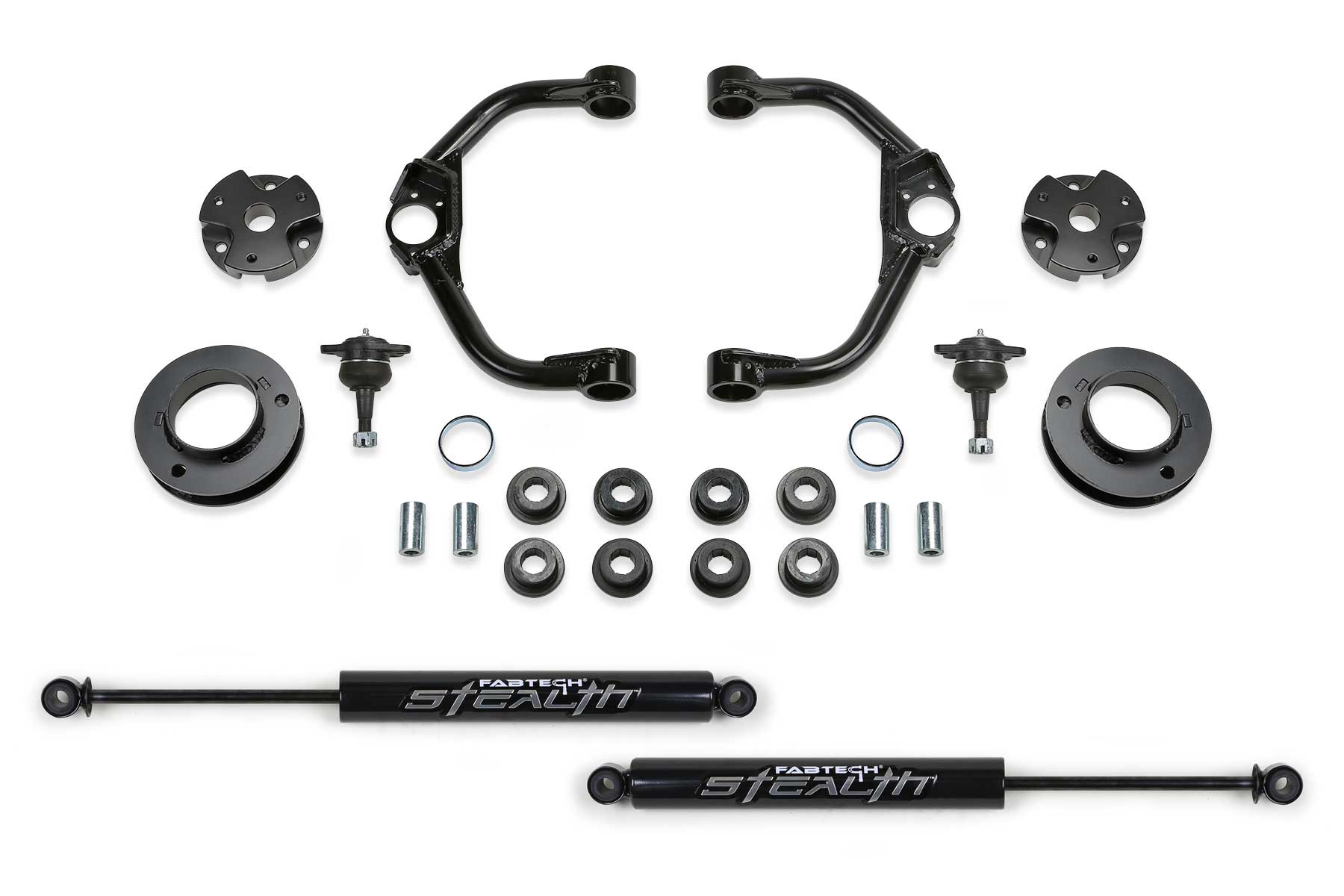

Heavy-Duty Upper Control Arms:
The factory Ram 1500 upper control arms feature plastic construction with light-duty ball joints. Fabtech replaces these with tubular steel upper control arms equipped with robust, heavy-duty ball joints that dramatically increase suspension strength and durability. These UCAs are extensively tested to ensure full suspension travel without binding, and they maintain complete lock-to-lock steering capability without sacrificing turning radius.
Front Suspension Components:
- Steel spacer that mounts to the top of the factory coilover shock
- Coil spring collar positioned below the coil spring
- Combined components deliver a full 3 inches of lift with proper suspension geometry
- Engineered to provide bind-free suspension travel throughout the entire range of motion
Rear Suspension:
The rear lift is achieved with coil spring spacers that raise the vehicle while preserving the factory rake and ride characteristics. This design maintains balanced handling and load capacity.
Fabtech Stealth Shocks:
This kit includes Fabtech Stealth monotube shocks featuring Nitrocarb-coated piston rods for exceptional corrosion resistance and rock chip protection. The sealed monotube design delivers excellent highway ride comfort while providing the damping capacity needed for aggressive off-road use.
Key Benefits:
- Clearance for 35-inch tires
- Maintains factory turning radius and steering geometry
- Superior strength compared to factory plastic upper control arms
- Designed for both daily driving and off-road performance
- Straightforward installation process
- Commanding stance without excessive lift height
This complete lift system is engineered and tested to provide years of reliable service while enhancing the capability and appearance of your Ram 1500 Rebel.
