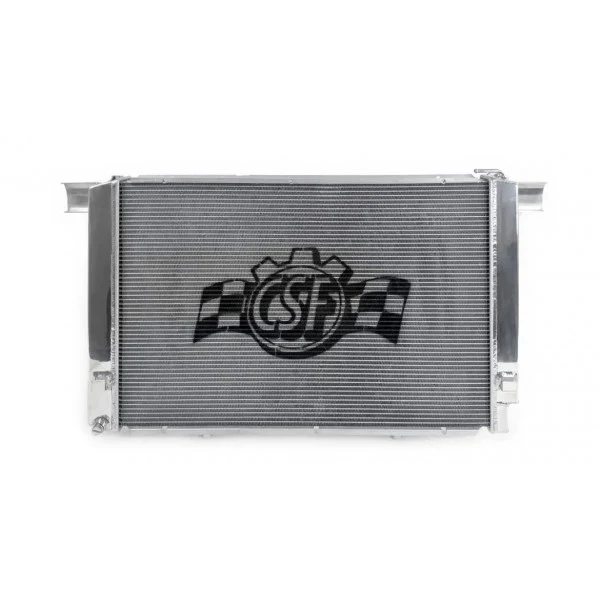

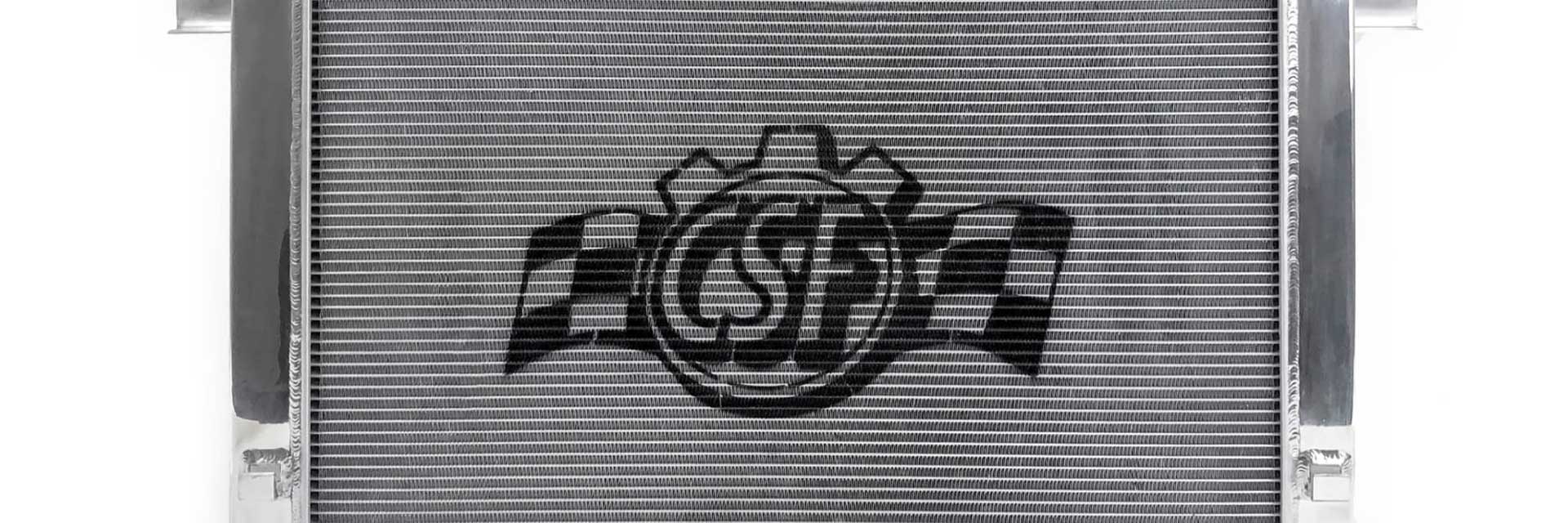

CSF 129-500-01-03-64 High-Performance All-Aluminum Radiator

The CSF 129-500-01-03-64 is a high-performance all-aluminum replacement radiator engineered for superior cooling efficiency and durability. This radiator replaces OEM part number 129-500-01-03 and features CSF's exclusive B-Tube Technology, delivering approximately 15% greater heat transfer surface area compared to conventional radiator tubes.

Key Features:

• 2-row 42mm dual-core construction with CSF's proprietary B-Tube Technology
• Ultra-efficient multi-louvered fins with 6.5mm fin height for maximum surface area contact
• 100% TIG-welded all-aluminum construction for superior strength and lighter weight
• CNC machined brackets and quick-connect fittings for precise fit and long-term durability
• Drop-in fit design requiring no modifications to install
• Compatible with OEM fan shroud, A/C condenser, hoses, and all factory ducting
• Polished satin finish for a clean, professional appearance
• Increases cooling capacity by 40% and cooling efficiency by 15-20% over stock

CSF's B-Tube Technology utilizes specially engineered tubes shaped like a "B" rather than conventional oval tubes. This innovative design creates dual liquid laminar flow and allows for thinner, lighter aluminum construction while maintaining superior strength. Each radiator undergoes rigorous testing including leak testing, thermal cycling, vibration testing, and wind tunnel validation to ensure maximum performance and reliability.

Specifications:

• CSF Part Number: 8057
• OEM Part Number: 129-500-01-03-64 (replaces 129-500-01-03)
• Construction: All-aluminum with plastic components
• Core Type: 2-row crossflow design
• Transmission Cooler: Integrated
• Inlet Location: Upper driver side
• Outlet Location: Upper passenger side
• Warranty: 2-year limited warranty
