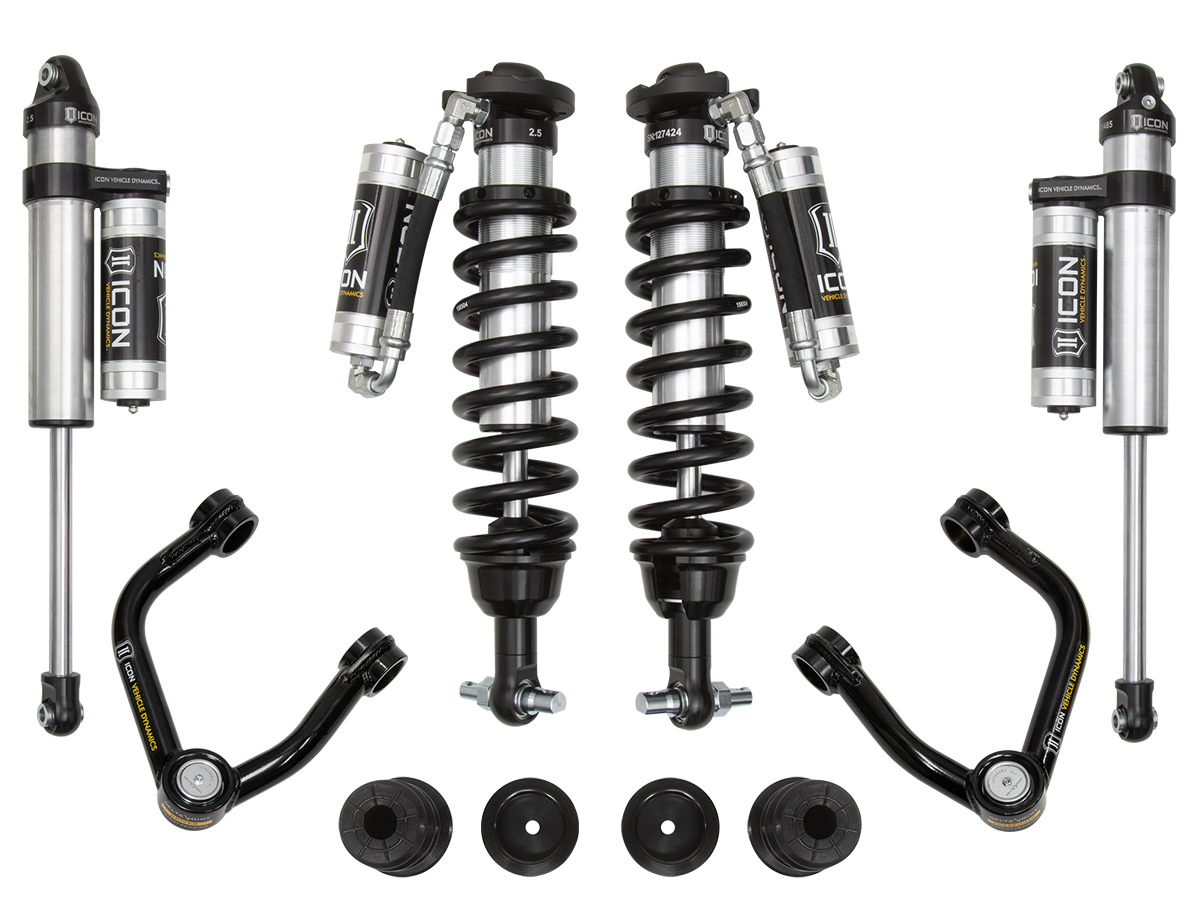

ICON Vehicle Dynamics K93204T 0-3.5" Stage 4 Suspension System with Tubular UCA

(1995-2004 Toyota Tacoma; 2019-2021 Ford Ranger; 2005-2007, 2009-2010 Scion tC Base; 2007-2008 Scion tC Spec)

Manufacturer

Part Number

K93204T
Black Friday Price

$3,319.93

$3,905.80 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics K93204T is a complete Stage 4 suspension lift system engineered to dramatically improve on- and off-road ride quality for the 2019–2023 Ford Ranger. With a primary focus on maximizing wheel travel and damping performance, this system delivers outstanding vehicle control in virtually any driving condition.

At the heart of the front end upgrade are ICON tubular steel upper control arms (UCAs) featuring ICON's patented Delta Joint — a heavy-duty, high-angle ball joint that combines the bind-free articulation of a traditional uniball with the weather resistance and durability of a conventional ball joint. The Delta Joint's zinc-plated housing provides a first layer of corrosion protection, while a tough grease seal prevents contaminants from reaching the inner workings. Metal-on-metal construction paired with a greasable design ensures long service life and noise-free operation. The tubular UCA design corrects front-end geometry, adds built-in caster, and improves suspension component clearance throughout the full range of travel.

The front suspension features vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs, providing generous nitrogen and oil volume for enhanced heat dissipation and consistent damping performance. Coilovers are height adjustable from 0 to 3.5 inches over stock, opening the door to larger, more aggressive wheel and tire combinations. Corrosion-resistant CAD-plated shock bodies with 7/8" shafts and FK rod end bearings further contribute to long-term reliability and minimal deflection.

Out back, ICON 2.5 Aluminum Series remote reservoir rear shocks use vehicle-specific valving to seamlessly balance front-to-rear performance, while the included foam bump stop kit increases rear-end compliance over rough terrain.

Kit Highlights:

  • Lift range: 0–3.5" of adjustable ride height over stock
  • 2.5 Series front coilover shocks with remote reservoirs and ICON-engineered coil springs
  • Tubular steel upper control arms with patented Delta Joint technology
  • Corrected front-end geometry with added caster for improved handling
  • 2.5 Aluminum Series remote reservoir rear shocks with vehicle-specific valving
  • Foam bump stop kit included for improved rear compliance
  • CAD-plated shock bodies with 7/8" shafts and FK rod end bearings
  • Fully serviceable shocks and components
  • Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
  • Delta Joint UCAs carry ICON's exclusive 5-year limited warranty

Recommended aftermarket tire size is 285/70R17. Minor fender trimming may be required for larger tires. Not compatible with Ranger Raptor. This system is designed for direct bolt-in installation and is fully serviceable for years of dependable use on the street and trail.

Products specifications

Fits

1995-2004 Toyota Tacoma; 2019-2021 Ford Ranger; 2005-2007, 2009-2010 Scion tC Base; 2007-2008 Scion tC Spec

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Bushings Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Tires

285/70/R17 (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Dual Rate Coil Springs

NO

Add-On Part

252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)

Mounting Hardware Included

Yes

Spring Material

Steel

Add-On Part

191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Coils Quantity Front

2

Grade Type

Performance

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Shocks Included

Yes
