Zone Offroad D1202 2-Inch Front Leveling Kit with Adventure Series UCAs for RAM 1500

The Zone Offroad D1202 is a 2-inch front leveling kit engineered specifically for the 2019 and newer RAM 1500 4WD. Unlike conventional leveling kits that rely on a single tall strut spacer or preload spacer — both of which can push factory suspension components beyond their design limits — the D1202 uses a purpose-built combination approach to deliver a clean, level stance without compromising ride quality or accelerating component wear.

How It Works:

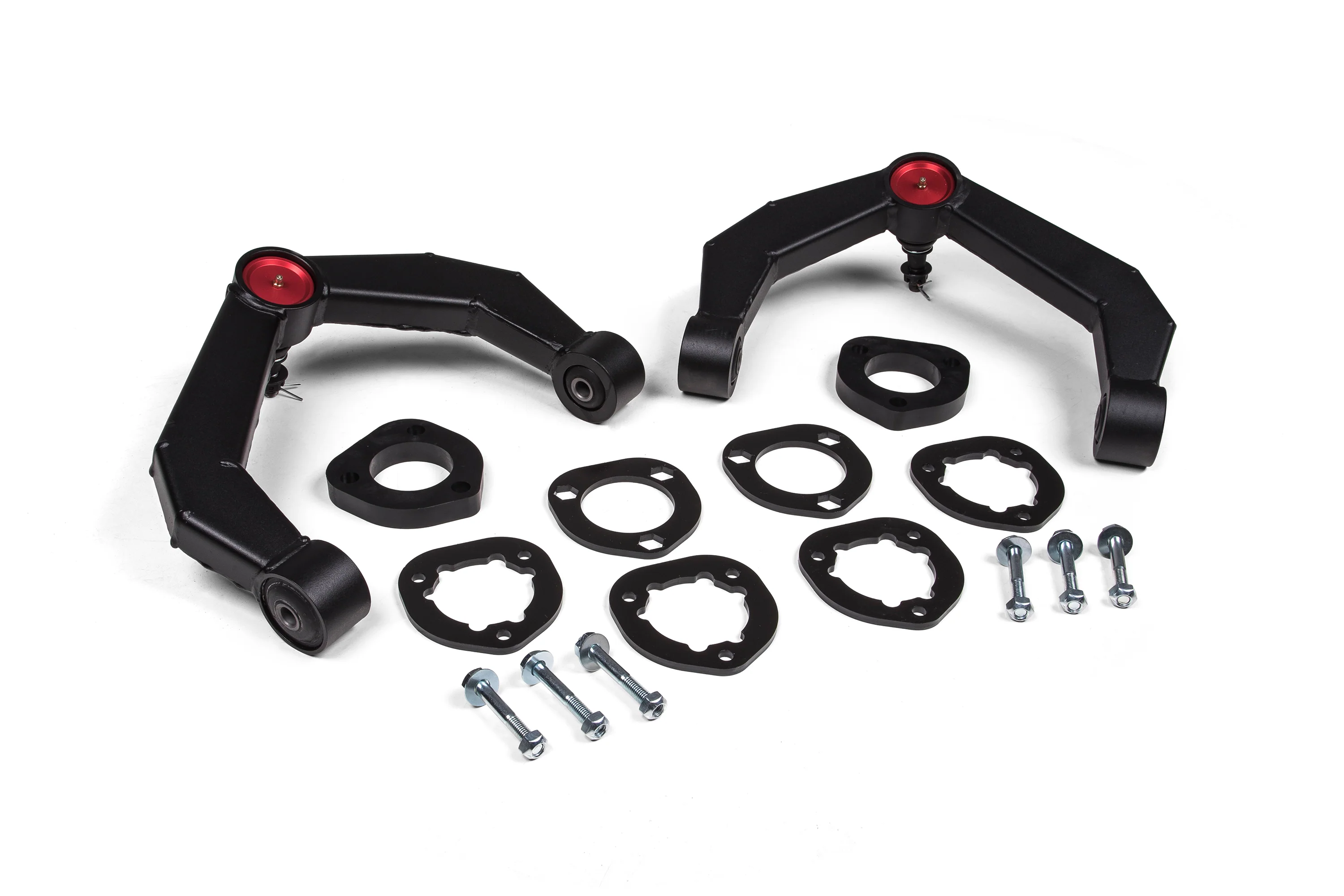

The kit pairs a steel fabricated top-mounted strut spacer with a preload spacer to achieve the full 2 inches of front lift. This dual-spacer design prevents the factory strut from being overextended during droop travel, preserving OEM-like suspension geometry and ride behavior. The D1202 also addresses a critical weakness of the RAM 1500 platform at leveled height — the factory upper ball joint, which becomes maxed out when a leveling kit is installed — by including Adventure Series upper control arms (UCAs). These fully boxed and welded UCAs feature an indexed ball joint cup that repositions the ball joint to a neutral angle at 2 inches of lift, improving droop travel and reducing premature wear.

Key Features:

• 2-inch front lift via combination top-mounted strut spacer and preload spacer
• Prevents strut overextension during suspension droop
• Adventure Series UCAs with indexed ball joint cup for corrected geometry and improved travel
• Fully boxed and welded UCA construction for superior strength and durability
• High-quality greaseable ball joints with removable red anodized aluminum dust cap
• CNC-machined frame-side mounting cups with OE-style rubber bushings for quiet, maintenance-free operation
• Parts arrive fully assembled and ready to install
• Provides clearance for up to 33-inch tires
• Durable textured black powder coat finish on UCAs
• Includes easy-to-follow installation instructions and Zone Offroad decals
• Backed by Factory Protection Plus: limited lifetime warranty and 5-year/100,000-mile extended drivetrain warranty

The Zone Offroad D1202 is the right way to level your RAM 1500 — delivering an aggressive, even stance along with improved off-road capability and tire clearance, all while keeping your truck reliable and comfortable for daily driving.
