COMP Cams 98500R-4 Race Xd Offset Pushrod Seat Set For Diameter Lifters - 0.160 Right 0.842 0.875

Manufacturer

Part Number

98500R-4
Black Friday Price

$57.95

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

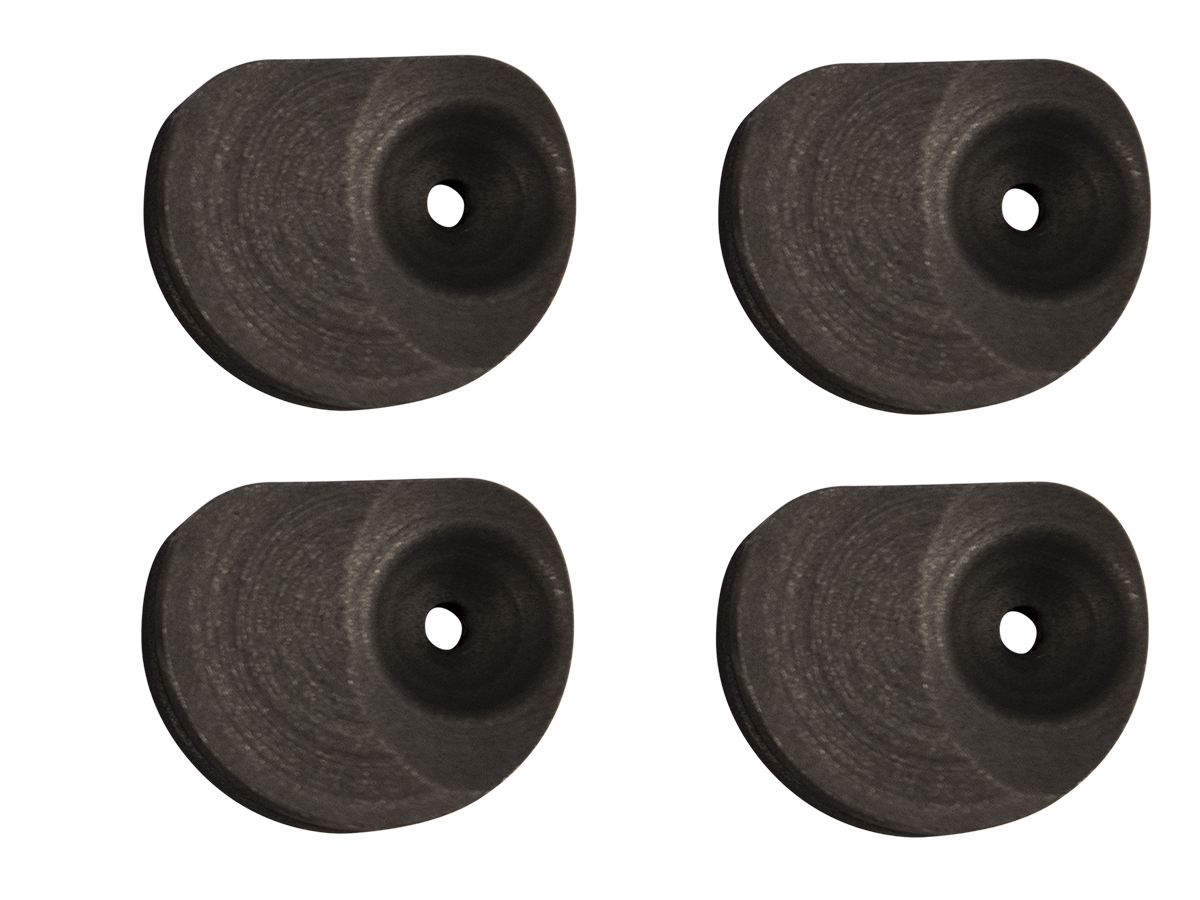

These interchangeable pushrod seat inserts are a key component of the Race XD's modular valvetrain system, allowing engine builders to configure pushrod positioning without replacing the entire lifter set.

The 0.160" right offset placement moves the pushrod seat to the right, providing critical clearance for large or aggressive intake port configurations where a centered seat would cause interference. This makes the 98500R-4 an essential upgrade option when swapping cylinder heads or redesigning the valvetrain on race engines with extreme intake angles.

Key Features:

  • 0.160" Right Offset — shifts pushrod contact point right to clear large intake ports and extreme intake angles
  • Compatible with 0.842" / 0.875" diameter Race XD Solid Roller Lifter bodies
  • Dual pushrod compatibility — accommodates both 5/16" and 3/8" ball-end pushrods
  • Interchangeable modular design — swap offset positions without purchasing new lifters when changing cylinder heads or valvetrain configurations
  • Engineered to reduce pushrod deflection for more accurate valvetrain geometry

These pushrod seat inserts are part of COMP Cams' Race XD ecosystem, which also includes centered seats (98500C-4) and 0.080" left offset seats (98500L-4) for 0.842" diameter lifters, as well as a full range of seats for 0.904" diameter lifters. When combined with the Race XD lifter bodies' REM-finished surfaces, proprietary bronze alloy roller bushings, and advanced axle oiling system, the 98500R-4 seats help deliver a complete, tunable valvetrain solution for serious racing applications.

Products specifications

Pushrod Seat Offset Amount

0.16

Compatible Lifter Diameters

0.842/0.875

Pushrod Seat Offset Location

Right

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

No

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

Title

Race XD 0.160" Right Offset Pushrod Seat Set for 0.842"/0.875" Diameter Lifters
