Industrial Injection 22B406 S464 2nd Gen Turbo Swap Kit 6.7L Cummins .90 A/R

The Industrial Injection 22B406 is an S464 BorgWarner-based 2nd Gen T4 Turbo Swap Kit engineered for the 2010–2012 6.7L Cummins. Designed as a direct-fit replacement for the factory VGT turbo, this kit delivers strong mid-range torque, quicker spool characteristics, and lower exhaust gas temperatures (EGTs) compared to the stock turbocharger — making it a popular choice for serious towing and competition builds.

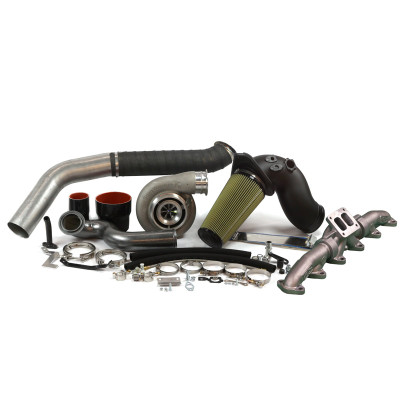

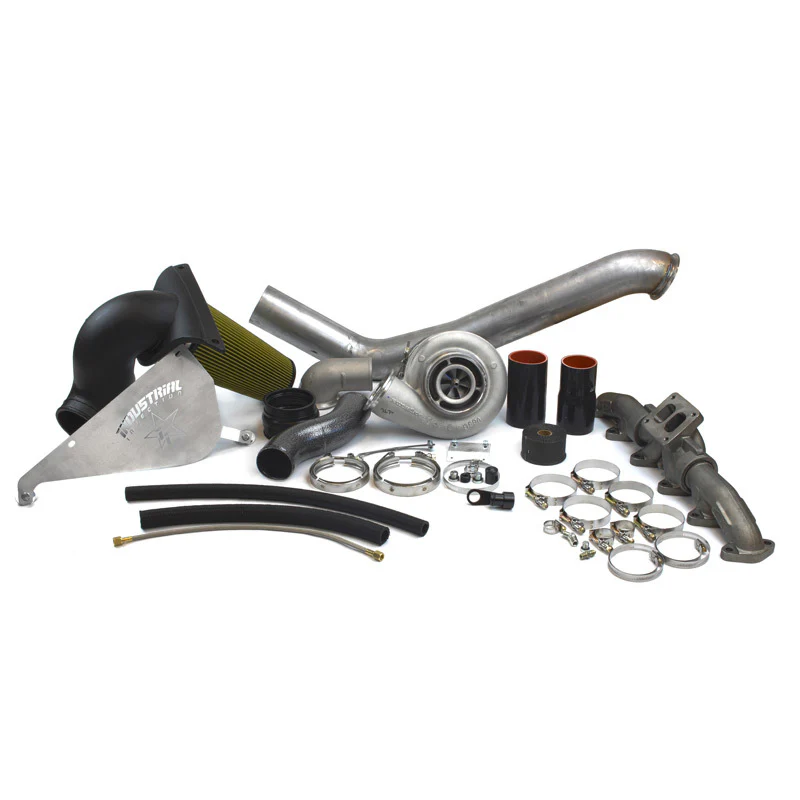

The kit ships as a complete installation package, including all hardware needed for a clean, professional-quality swap. The S464 platform features a .90 A/R T4 turbine housing, which strikes an ideal balance between spool response and top-end airflow, making it well-suited for diesel trucks used in heavy hauling or sled pulling applications.

Turbo Specifications:

• Compressor Wheel: 63.5mm inducer
• Turbine Wheel: 83/74mm
• Turbine Housing A/R: .90
• Max Airflow: 66 lbs/min
• Inlet/Outlet: T4 flange turbine inlet

Kit Features:

• Complete install kit — includes all components needed for a clean swap
• Custom S&B designed intake included
• Lower EGTs compared to factory VGT turbocharger
• Increased reliability over stock turbo under heavy load
• Quick spool-up for towing and mid-range performance
• Injector upgrades recommended for optimal spool and performance

⚠ Competition Use Only: All Industrial Injection performance products are intended for closed-circuit competition vehicles only. These products are not legal for on-road, off-road, or dual-use applications. Compliance with all applicable state and federal emissions standards is the sole responsibility of the purchaser.
