Zone Offroad T5F Suspension Lift Kit with Fox Adventure Series Shocks - 5-Inch 2.0

Manufacturer

Part Number

T5F
Black Friday Price

$1,454.91

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Zone Offroad T5F is a complete 5-inch suspension lift kit engineered for the 2016–2018 Toyota Tundra 4WD. Designed to deliver serious off-road capability and a commanding stance, this system provides the height and clearance needed to run up to 35-inch tires while maintaining dependable handling and proper suspension geometry.

At the heart of this kit are precision ductile iron steering knuckles made in the USA, which correct steering geometry and maintain ESC system compatibility after lifting. High-strength crossmembers correct lower control arm positioning while maximizing ground clearance, and a front differential drop is included to reduce CV axle angles and promote long-term drivetrain reliability.

The T5F variant pairs this comprehensive lift system with FOX 2.0 Adventure Series aluminum monotube shocks front and rear, delivering improved heat dissipation and enhanced off-road performance over factory dampers. The rear of the truck is raised using fabricated lift blocks and a U-bolt kit for a leveled, aggressive stance.

Key Features:

  • 5-inch front lift height via knuckle and drop cross-member method
  • 3-inch rear lift height using fabricated blocks
  • FOX 2.0 Adventure Series aluminum monotube rear shocks included
  • Ductile iron steering knuckles correct geometry and maintain ESC compatibility
  • High-strength crossmembers correct lower control arm positioning
  • Front differential drop reduces CV axle angles post-lift
  • Lower strut extensions for straightforward installation — no strut disassembly required
  • Clears up to 35x12.5-inch tires
  • Powdercoated finish for corrosion resistance
  • No cutting required
  • Made in the USA

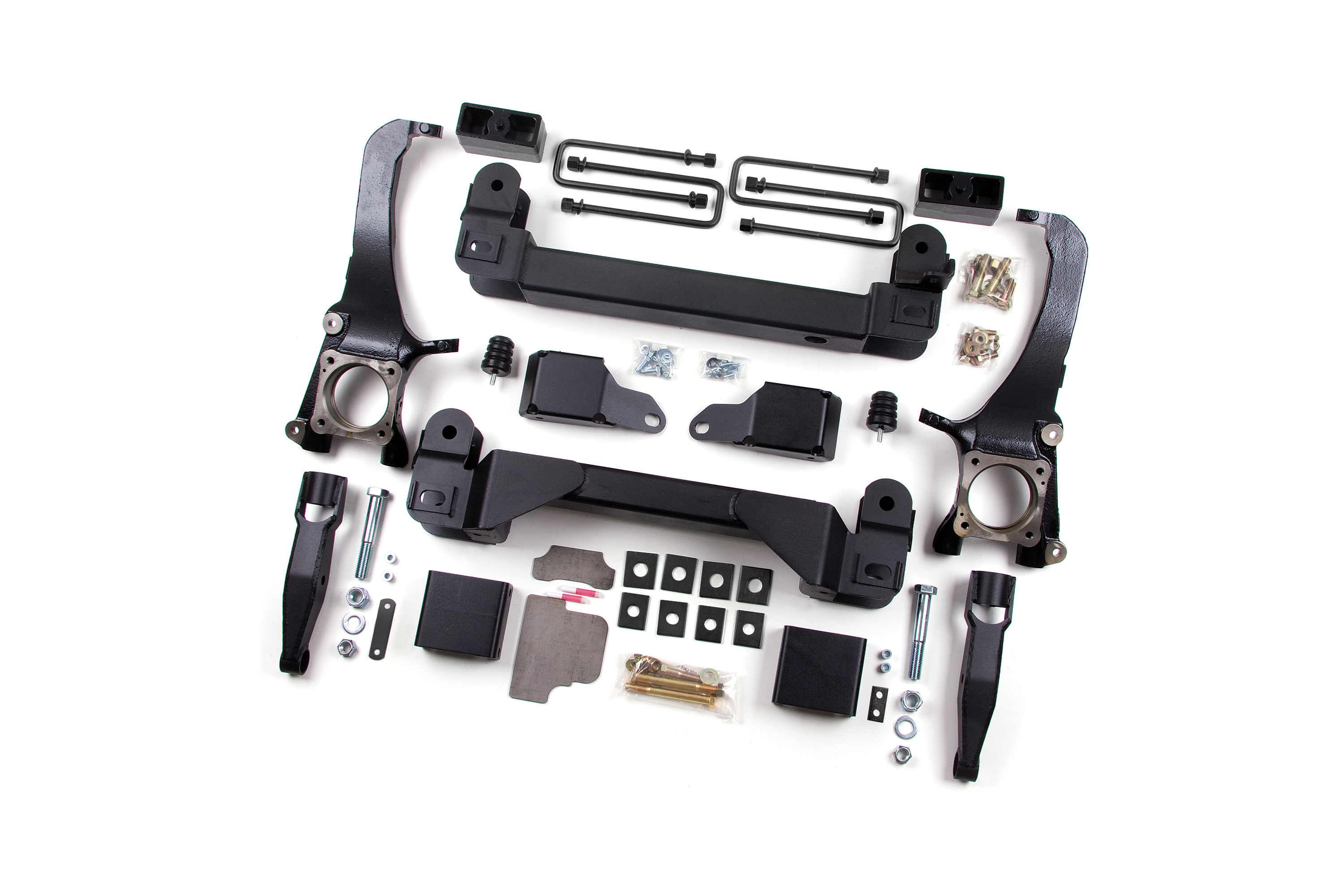

Kit Contents:

  • Crossmembers
  • Lower strut extensions
  • Ductile iron steering knuckles
  • Tie rod ends
  • Rear lift blocks and U-bolt kit
  • FOX 2.0 Adventure Series shocks (front and rear)
  • All necessary mounting and installation hardware

Important Notes:

  • Will NOT fit TRD Pro models equipped with Bilstein or Fox Piggyback Struts
  • Stock 18-inch wheels cannot be installed after lifting
  • Factory 20-inch wheels with more than 6.25-inch backspacing cannot be installed
  • Vehicles with a two-piece rear driveshaft require an additional carrier bearing drop kit (ZONT5409)
  • Some 2WD models may require rear driveline modification

Just placed my order we will have to wait and see how the process goes before I comment further

Clearly states which transmission this fits.

Ok

Absolutely no issues

Excellent product and quick service

Easyer then i thought

got product in good order, waiting to install it before making final judgment
