The Zone Offroad T7F is a complete 6-inch front / 4-inch rear suspension lift kit engineered for the 2016–2018 Toyota Tacoma 4WD. Designed to deliver improved ground clearance, a more aggressive stance, and the capability to run up to 35-inch tires, this kit includes every component needed for a comprehensive suspension upgrade.
At the heart of the system, high-strength crossmembers correct lower control arm positioning and form a solid subframe, while ductile iron steering knuckles restore proper steering geometry and maintain compatibility with the factory Electronic Stability Control (ESC) system. Top-mounted strut spacers provide the front lift height and install easily without replacing the factory struts.
The rear of the kit utilizes cast lift blocks and extended U-bolts to raise and level the stance, complemented by bump stop extensions, sway bar relocation brackets, and brake line relocation hardware to maintain correct operating angles throughout the suspension travel. A full-width belly skid plate is also included for added underbody protection on the trail.
Fox 2.0 Adventure Series Shocks are paired front and rear to complete the system. These shocks feature a 2-inch OD steel body with a 5/8-inch heat-treated, hard chrome-plated shaft, delivering a comfortable street ride and predictable, controlled handling in off-road conditions. An internal floating piston (IFP) design helps separate oil from nitrogen gas for consistent, fade-free damping performance.

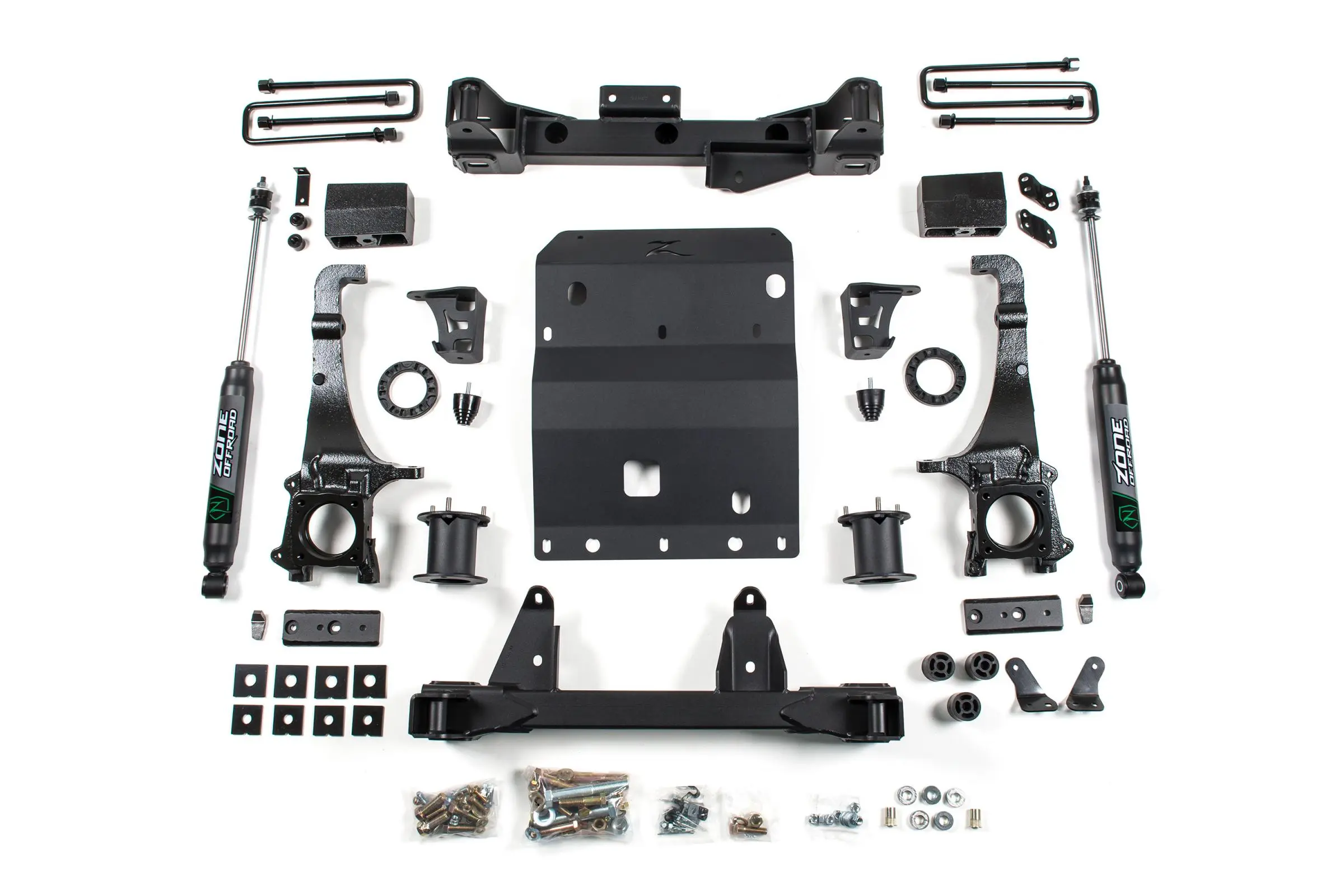

What's Included:
- High-strength steel crossmembers
- Ductile iron steering knuckles
- Top-mounted strut spacers
- Fox 2.0 Adventure Series front and rear shocks
- Full-width belly skid plate
- Rear cast lift blocks and U-bolt kit
- Bump stop extensions
- Sway bar relocation brackets
- Brake line relocation brackets
- All necessary mounting and installation hardware
Kit Specifications:
- Front Lift Height: 6 inches (Knuckle & Strut Spacer method)
- Rear Lift Height: 4 inches (Cast Block method)
- Maximum Tire Size: 35 x 12.5
- Recommended Wheel Size: 18x9 or larger with 4.5-inch backspacing
- Finish: Powdercoat
- Cutting Required: No
- Welding Required: Minor (steering stops)
- Stock Wheels Compatible: No — 18-inch or larger wheels required
- TRD Pro Models: Not compatible
