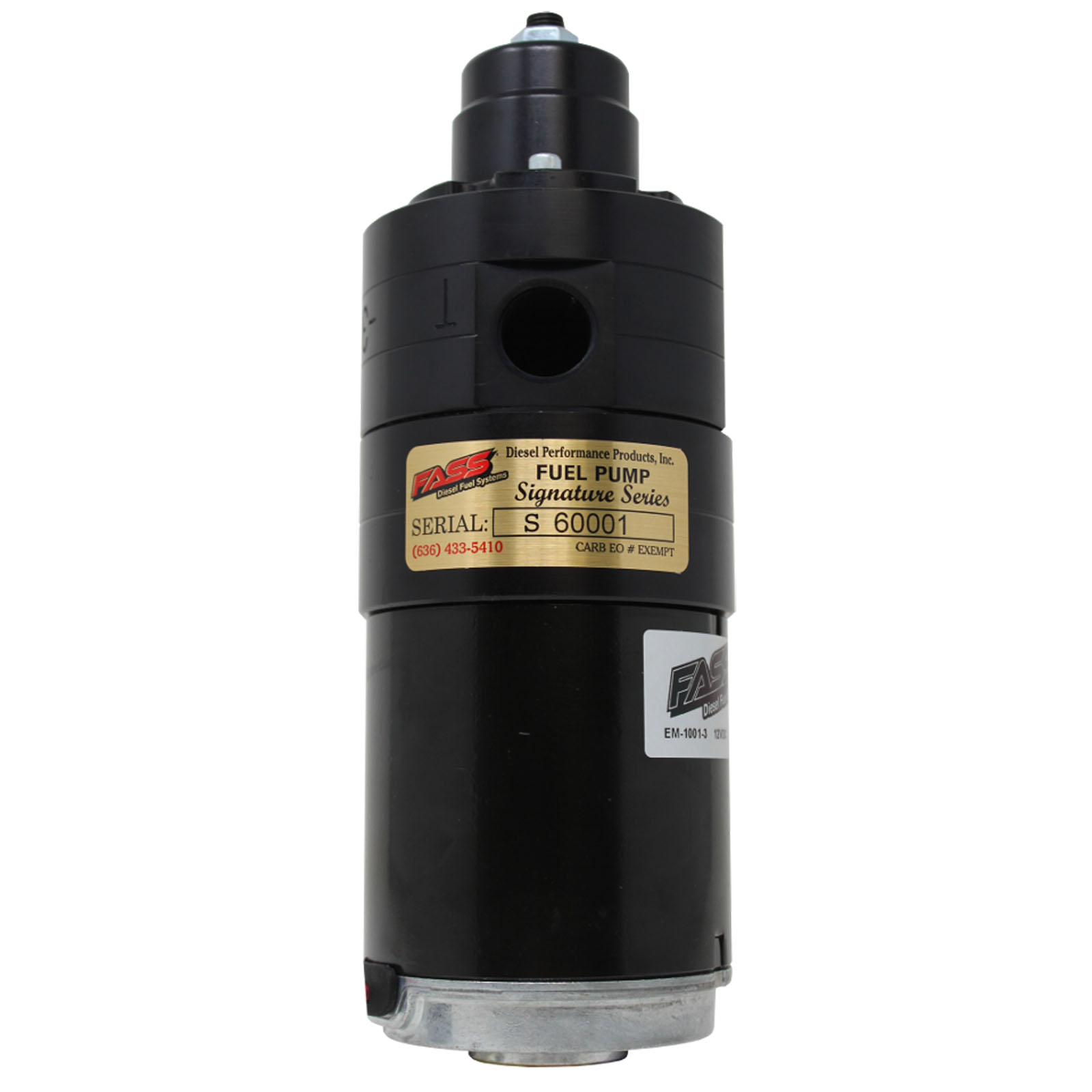

FASS FASD05165G Signature Series Adjustable Diesel Fuel Lift Pump - 165GPH

The FASS FASD05165G Signature Series Adjustable Diesel Fuel Lift Pump delivers high-performance fuel delivery for 2010-2014 Dodge Ram 6.7L Cummins diesel engines. Rated at 165 gallons per hour with adjustable fuel pressure from 1-20 PSI, this system provides the versatility to customize fuel delivery for everything from stock applications to high-performance race engines supporting 900-1,000 wheel horsepower.

Key Features:

• Manufactured with the same motor used in FASS Titanium Signature Series systems
• Adjustable fuel pressure from 1-20 PSI for race and competition applications
• Built-in boost compensation port raises fuel pressure under full throttle
• Whisper Technology for quiet operation
• Fuel pressure gauge port for easy monitoring

What's Included:

• 6061 T-6 billet aluminum bulkhead fitting with 5/8 inch suction tube and 1/2 inch fuel return port
• PTFE Teflon pickup tube that can be cut to adapt to different fuel tank depths
• Complete mounting hardware
• 10 gauge wiring harness with heavy-duty electrical connector

The improved bulkhead design allows direct return line plumbing, eliminating filler neck cutting and speeding up installation. This is a fuel pump system only and must be used with your factory fuel filter. A fuel pressure gauge is recommended when adjusting pressure settings.
