FAST 146602B-KIT LSXRT 102mm Intake Manifold and Big Mouth Throttle Body Kit for LS Truck Engines

Manufacturer

Part Number

146602B-KIT
Black Friday Price

$1,495.95

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

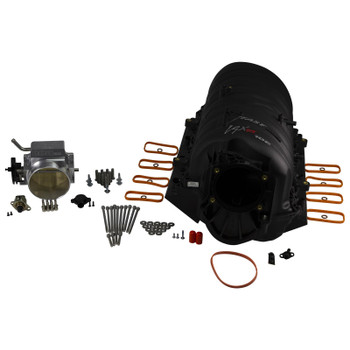

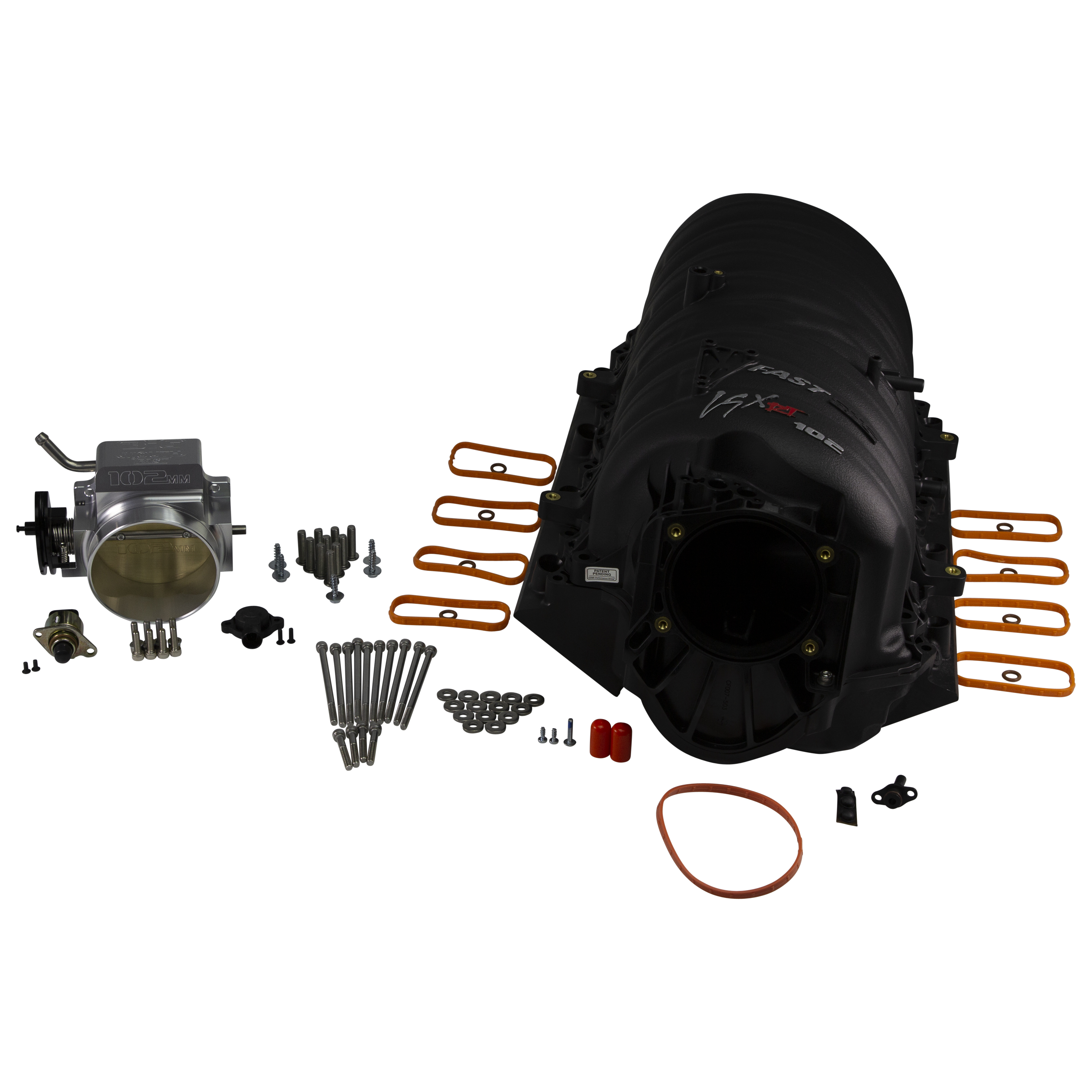

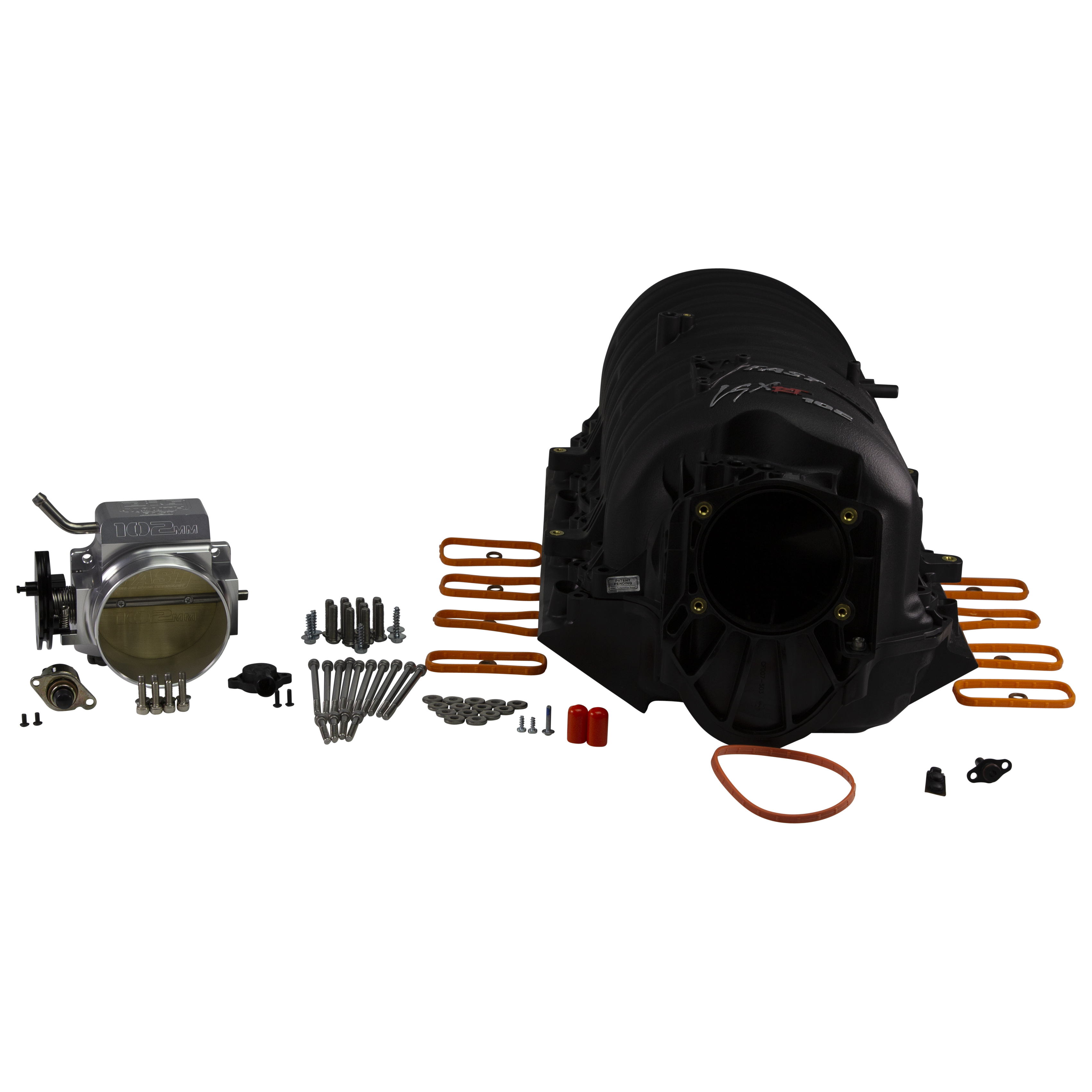

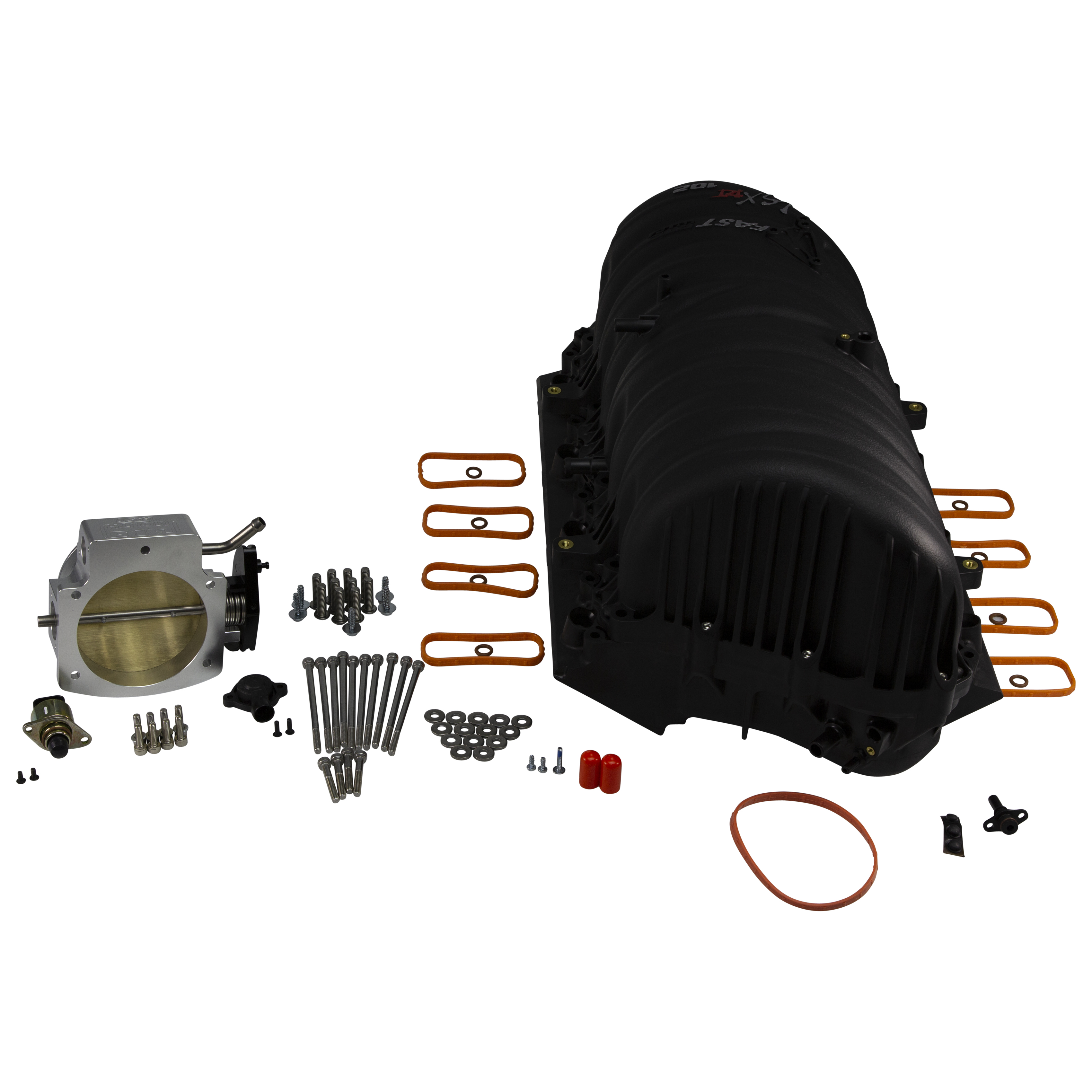

The FAST 146602B-KIT combines the LSXRT 102mm intake manifold with the Big Mouth 102mm billet throttle body, specifically designed for GM 4.8L, 5.3L, and 6.0L truck engines with cathedral port cylinder heads, as well as LS1, LS2, and LS6 applications where hood clearance is not a concern. This complete kit delivers an incredible 25 peak horsepower gain over stock intakes on a 6.0L engine.

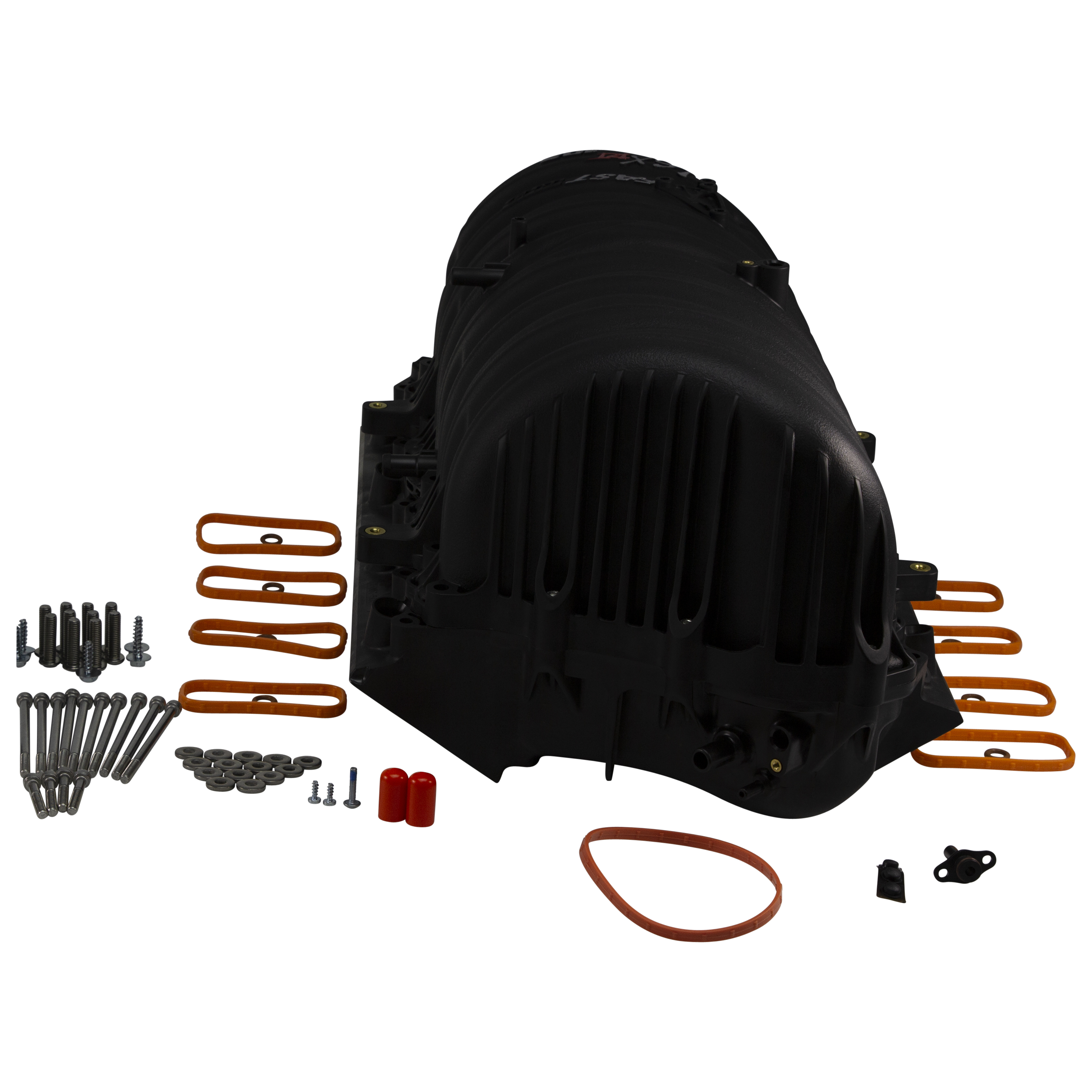

LSXRT 102mm Intake Manifold Features:

  • Modular design allows for easy porting and disassembly with removable individual runners
  • Constructed from proprietary precision injection molded polymer offering lighter weight, greater strength, and lower heat soak propensity than aluminum
  • Longer, less restrictive runner design for improved airflow
  • Integrated nitrous bungs, plug-and-play compatible with ZEX LSX Direct Port Nitrous System
  • Permits use of factory accessories and OEM fuel/emission connections without adjustments or clearance issues
  • Compatible with stock 90mm or aftermarket 92mm throttle bodies, optimized for 102mm applications

Big Mouth 102mm Throttle Body Features:

  • Constructed from billet aluminum for maximum strength and durability
  • Increased throttle blade thickness eliminates deflection, especially critical in boosted applications
  • Smoother operating offset blade pivot improves throttle response with beefed up linkage and dual throttle spring mechanism
  • Includes TPS (Throttle Position Sensor) and IAC (Idle Air Control) for complete bolt-on installation
  • Designed for Gen III and Gen IV engines with cable-driven throttle bodies
  • Optimized cross-sectional flow eliminates airflow turbulence at part throttle operation

This complete performance kit is ideal for street/strip applications and racing where maximum airflow and horsepower gains are the priority. The advanced polymer construction keeps intake charge temperatures lower than aluminum while providing a rigid, durable structure that withstands the demands of high-performance engines.

Products specifications

Fitment

Cathedral Port Truck and Car Engines

Throttle Body Bore

102

Replacement Upper Shell Part Number

146100B

Replacement Lower Shell Part Number

146601

Throttle Body Style

Cable Driven

Includes Fuel Injectors?

No

Includes Fuel Rails?

No

Manifold Material

Polymer

Includes Manifold to Cylinder Head Gaskets?

Yes

Includes Throttle Body to Manifold Hardware?

Yes

Includes Throttle Body?

Yes
