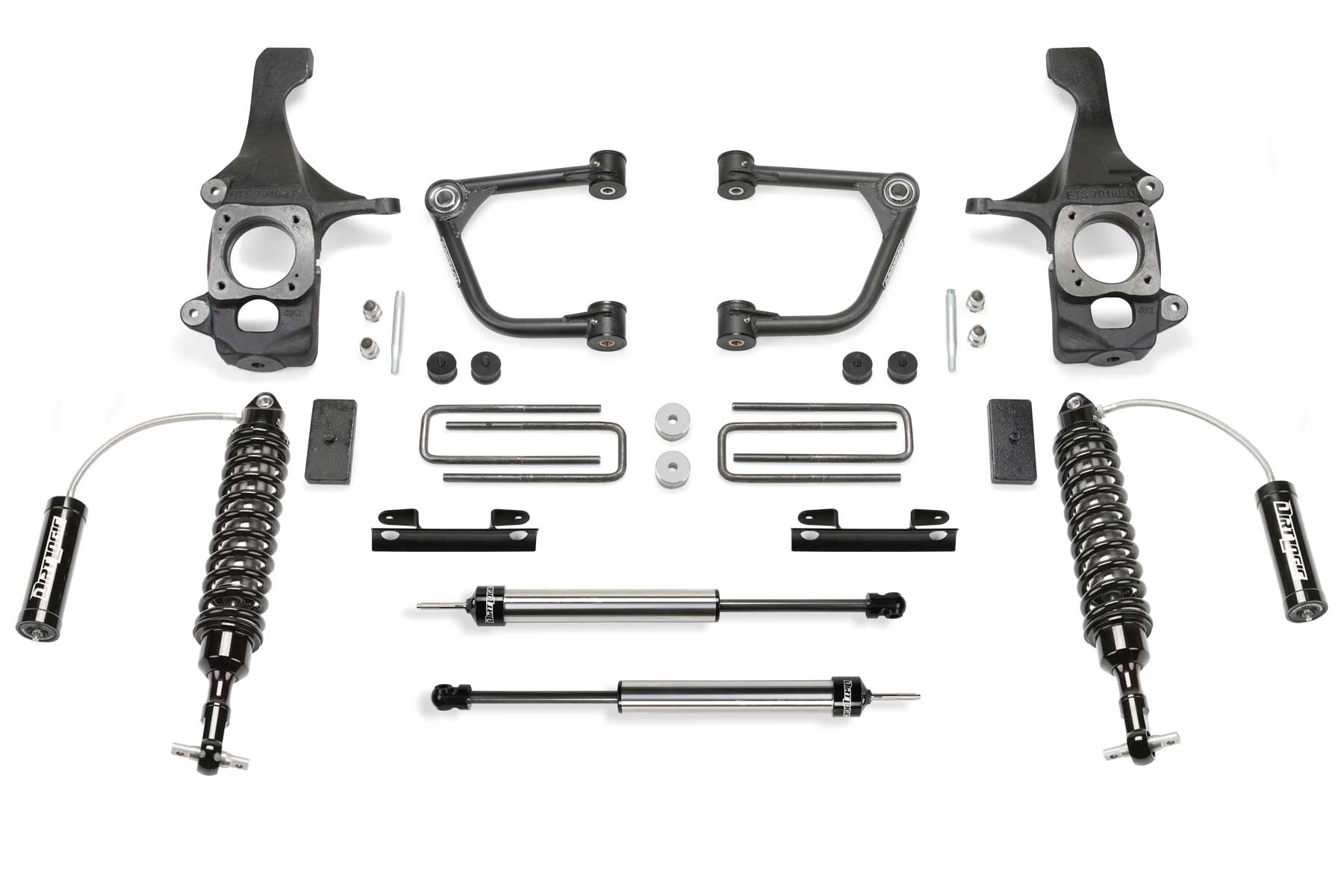

The Fabtech K7076DL suspension lift kit is engineered specifically for 2016-2019 Toyota Tundra TRD PRO 4WD models, providing a 2-inch lift that enables clearance for 35-inch tires while dramatically improving suspension performance. When combined with the factory 2-inch TRD PRO lift, this system delivers a total ride height equivalent to a 4-inch lift on standard Tundra models.
Dirt Logic 2.5 Coilover Shocks:
At the core of this system are premium stainless steel Dirt Logic 2.5 coilover shocks with remote reservoirs. These high-performance coilovers provide exceptional damping capacity for aggressive off-road use while maintaining a smooth, controlled ride on the highway. The stainless steel body and NitroSteel piston rods deliver maximum corrosion resistance for long-term durability in harsh conditions.
Tubular Uniball Upper Control Arms:
Fabtech includes tubular upper control arms featuring large 1-inch stainless steel uniballs for maximum strength during extreme off-road use. These UCAs work in conjunction with extended-length ductile iron steering knuckles that allow increased suspension travel without binding while adding additional caster to properly handle oversized tires.
Complete Front Suspension Components:
- Front differential relocation brackets maintain proper CV axle angles throughout the full range of suspension travel
- Bump stop extensions control compression travel and prevent suspension over-cycling
- All necessary hardware for complete installation included
Rear Suspension Upgrade:
The rear lift is achieved with 1-inch lift blocks and u-bolts, though these can be omitted if a level stance is preferred. Stainless steel Dirt Logic 2.25 rear shocks provide superior ride quality both on and off-road, delivering consistent performance across all driving conditions.
This comprehensive lift kit is backed by a 5-year/60,000-mile powertrain warranty, making it an excellent choice for Tundra TRD PRO owners seeking increased ground clearance for 35-inch tires without sacrificing ride quality or suspension performance.
