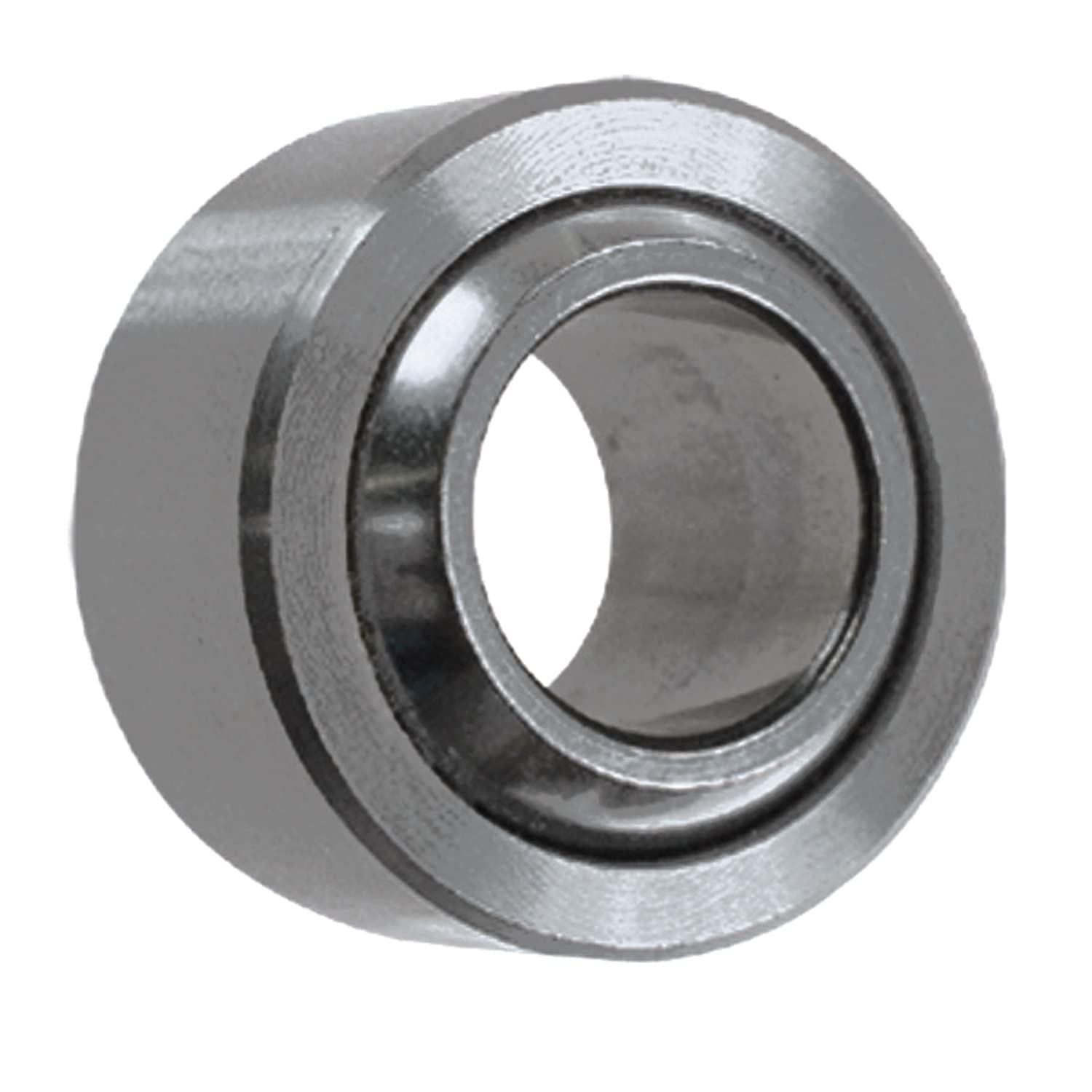

QA1 WPB12TG WPB-TG Wide Series Stainless Steel Spherical Bearing 3/4in. Bore PTFE Lined with Staking Groove

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

WPB12TG
9 reviews
Sale Price

$33.61

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 WPB12TG is a precision-grade, wide-body spherical bearing from QA1's WPB-TG Series, built for demanding performance and racing applications. Featuring a 3/4 in. (0.750 in.) bore and a 1.375 in. receiver race diameter, this bearing delivers tighter tolerances than traditional commercial-grade spherical bearings for superior precision and reliability.

Key Features:

  • 440C Stainless Steel Ball — heat-treated, precision-ground, and hard chrome plated for smooth, long-lasting operation
  • Stainless Steel Race — heat-treated for maximum strength and corrosion resistance
  • Self-Lubricating PTFE Liner — eliminates the need for regular greasing and reduces maintenance
  • Staking Groove (TG) — V-groove design allows the bearing to be staked securely into place during installation
  • Wide-Body Design — increased width provides greater load capacity and stability compared to narrow series bearings
  • Precision-Grade Tolerances — tighter than traditional spherical bearings for more accurate, controlled motion

The WPB12TG is sold individually and is an ideal choice for suspension links, chassis components, and other performance or racing applications where corrosion resistance, precision, and a maintenance-free design are required.

Products specifications

Approx Bearing Weight

0.24

B (+0.0000/-0.0005)

0.75

Ball Dia Ref

1.25

D (+0.0000/-0.0005)

1.375

G (+0.000/-0.010)

1.253

Inner Ball Diameter (in.)

0.7500 in.

Inner Ball Width (in.)

0.875 in.

Misalign Angle

13

No Load Breakaway

3-12

O Flat Dia Ref

0.845

P (+0.000/-0.015)

0.06

Quantity

Sold individually.

R (+0.002/-0.005)

0.015

Race Width (in.)

0.630 in.

Receiver Race Diameter (in.)

1.3850 in.

Rod End Ball Diameter (in.)

1.250 in.

Rod End Bearing Material

Stainless steel

Rod End Misalign Angle (degrees)

13 degrees

S Min

0.02

T (+/-0.005)

0.63

ULT. Static Radial Load (lbs.)

37,000 lbs.

UTL Axial Push

7730

UTL Radical Static

37000

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
