ICON Vehicle Dynamics K93085T Stage 5 Suspension System 2-2.63" Lift Kit with Tubular UCA

(2015-2020 Ford F-150; 2002-2003 Toyota Prius Base; 2016 Scion iA Base)

Manufacturer

Part Number

K93085T
Black Friday Price

$4,078.16

$4,797.84 Save 15%

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 5 Suspension System is engineered specifically for 2015-2020 Ford F-150 4WD trucks, delivering exceptional performance both on-road and off-road. This comprehensive lift system increases wheel travel and ride quality over stock while maintaining factory towing capacity, making it ideal for drivers who demand capability without compromise.

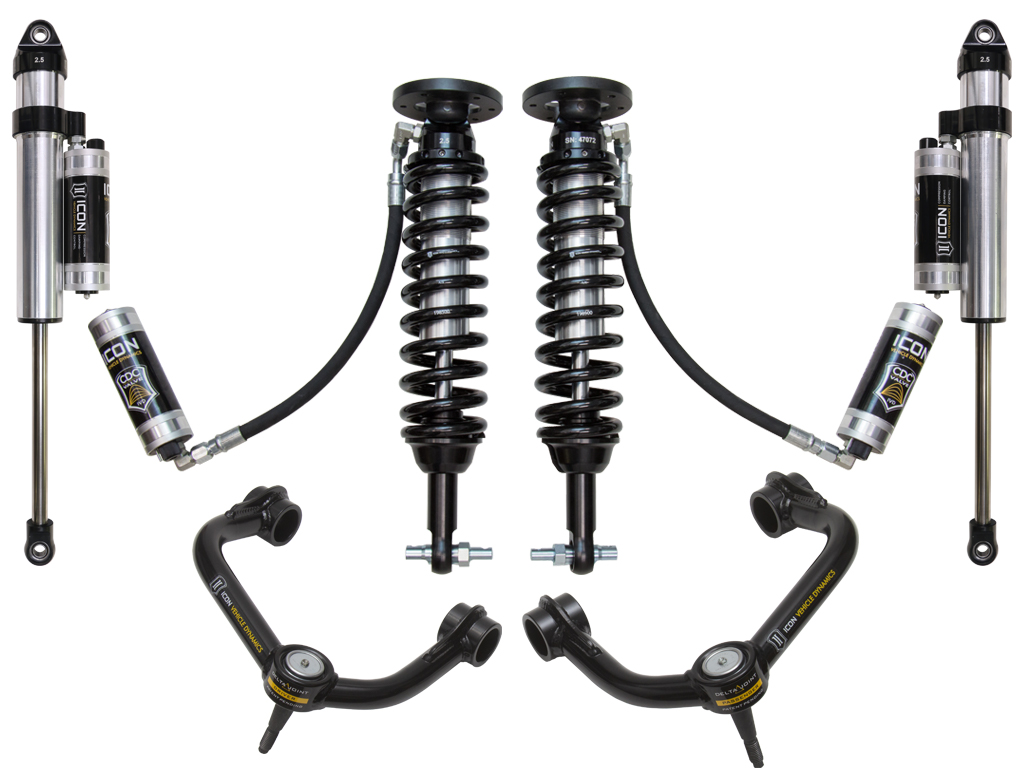

Complete Stage 5 System Includes:

  • Vehicle-specific tuned 2.5" coilover shocks with remote reservoir and CDC Valve for quick compression adjustment
  • ICON-engineered Eibach coil springs for superior vehicle feel through the full range of travel
  • Height adjustable from 2-2.63" of lift to accommodate larger, more aggressive wheel and tire combinations
  • Tubular upper control arms with patented Delta Joint technology for added strength and durability
  • 2.5" aluminum series piggyback reservoir rear shocks with CDC Valve and vehicle-specific valving

Patented Delta Joint Technology:

The tubular upper control arms feature ICON's innovative Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a traditional ball joint with the performance characteristics of a uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, a tough grease seal to protect against the elements, and metal-on-metal construction for long-lasting, noise-free operation. This design provides greater angularity than typical ball joints while being more robust than standard uniballs, making it perfect for daily driven applications.

Performance Features:

  • Unique valving developed specifically for the lighter weight of 2015-2020 F-150 trucks
  • Remote reservoirs provide exceptional cooling properties for consistent damping performance
  • Increased caster over stock while retaining factory alignment spec range
  • CDC Valve allows quick end-user compression adjustment without disassembly
  • Balanced front-to-rear performance for superior vehicle control

This Stage 5 system represents the pinnacle of ICON's suspension engineering, designed for serious drivers who want to maximize the capabilities of their F-150 in any terrain while maintaining daily drivability and comfort.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2015-2020 Ford F-150; 2002-2003 Toyota Prius Base; 2016 Scion iA Base

Bushings Included

No

Mounting Hardware Included

Yes

Grade Type

Performance

Coils Quantity Front

2

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Shocks Included

Yes

Prop 65

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Spring Color

Black

Spring Material

Steel

Maximum Lift

2.63

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset

Recommended Aftermarket Tires

33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
