Edelbrock 35680 Pro-Flo 4 EFI System Ford 429/460 Sequential Port Fuel Injection

The Edelbrock Pro-Flo 4 EFI System #35680 is an advanced sequential-port electronic fuel injection system engineered specifically for Ford 429/460 engines (385-series big-blocks manufactured from 1968-1987). This complete plug-and-play system delivers modern fuel injection performance with a direct bolt-on installation that requires no laptop tuning.

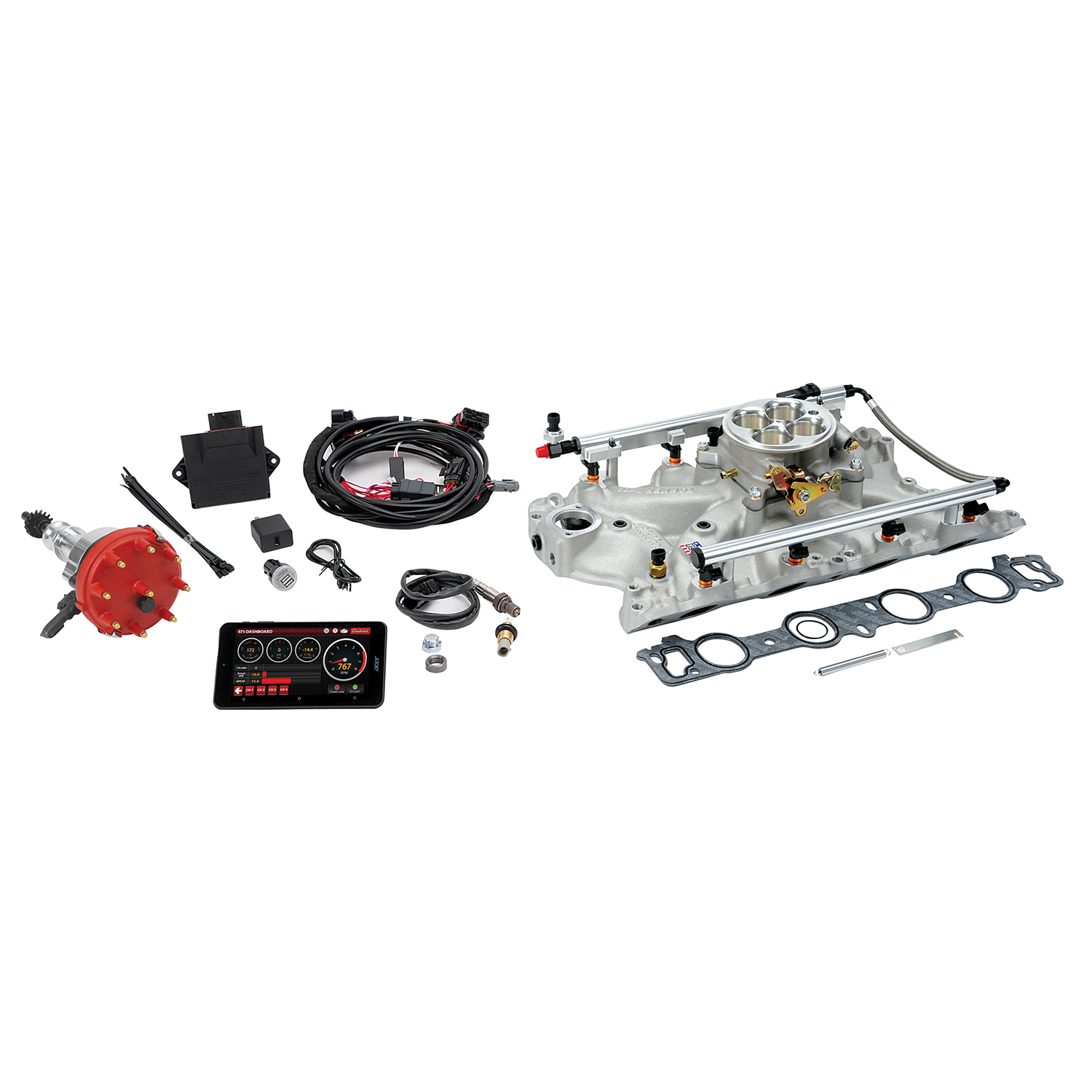

System Components:

• Single-plane Victor-style aluminum intake manifold with integrated fuel rails
• Square-bore 4150-style throttle body
• High-flow 42 lb/hr fuel injectors (fully sequential)
• Custom distributor designed for Pro-Flo 4 integration
• Low-profile ECU with advanced processor and upgraded Bluetooth connectivity
• Complete sensor package and wire harnesses
• 7-inch Android tablet with pre-installed E-Tuner app

Advanced Technology:

• Self-Calibrating Fuel Map Technology automatically adjusts for optimal performance
• Wide-Band O2 Closed Loop Mixture Control maintains target air-fuel ratios
• Self-learning ECU continually refines calibration as you drive
• Rated for 625 horsepower at 43 PSI fuel pressure
• Setup Wizard guides you through initial configuration

Tuning Capabilities:

• Real-time monitoring of engine parameters via tablet display
• Adjustable air-fuel ratios and ignition timing curves
• Idle speed, acceleration enrichment, and rev-limiter control
• Fan control and multiple display screens
• Wireless tuning and monitoring from inside or outside the vehicle

The system is compatible with factory-style Ford 429/460 cylinder heads but optimized for use with Edelbrock Performer and Victor Jr. cylinder heads. The manifold comes fully preassembled and ready to run, minimizing installation time and complexity while delivering the power and efficiency benefits of modern sequential fuel injection.
