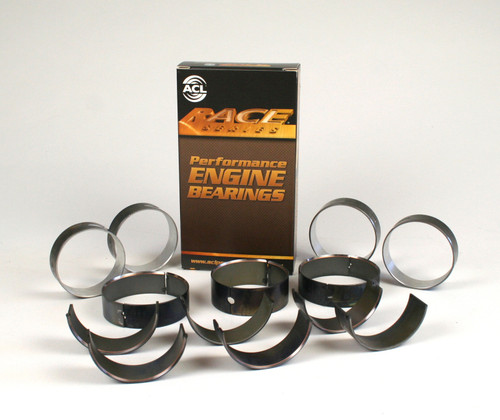

ACL Bearings 8B8630HX-STD High Performance Connecting Rod Bearing Set Toyota V8

The ACL Bearings 8B8630HX-STD is a high-performance connecting rod bearing set engineered for Toyota 1UR-FE, 2UR-FE, 2UR-GSE, and 3UR-FE V8 engines. This complete set includes 8 connecting rod bearings (16 half shells) manufactured with ACL's Race Series tri-metal construction and advanced F781 bearing material for superior durability and performance in demanding applications.

Key Features:

• Standard size bearing set designed for unmodified crankshafts
• HX-Series design with .001" (0.001 inch) extra oil clearance for enhanced lubrication
• Tri-metal construction with F781 bearing material for exceptional strength
• Improved material composition, dynamic thickness, and heat conduction properties
• Optimized oil groove design and oil distribution for better lubrication
• Identical bearing halves for simplified installation
• Shaft size range: 2.204" to 2.2047" (55.982mm to 56mm)
• Tunnel size range: 2.3228" to 2.3238" (59mm to 59.024mm)
• Overall bearing length: 0.6693" (17mm)

ACL Race Series bearings are designed to handle higher bearing loads than OEM components, making them ideal for both performance street builds and racing applications. The HX designation indicates this set features additional oil clearance compared to standard H-Series bearings, providing extra protection for high-RPM and high-power applications. These bearings deliver the endurance and capability needed for engines operating under extreme loads where standard bearings may fail.

Application Note: Designed for Toyota V8 engines including 1UR-FE (4.6L), 2UR-FE/2UR-GSE (5.0L), and 3UR-FE (5.7L) applications. Always verify clearances and measurements before installation to ensure proper fit and optimal performance.
