Edelbrock 15812 Stage 1 Supercharger Kit for 2019-21 Ford F-150 5.0L 4V with Tune

(2019-2020 Ford F-150)

Manufacturer

Part Number

15812
Black Friday Price

$9,548.65

2 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

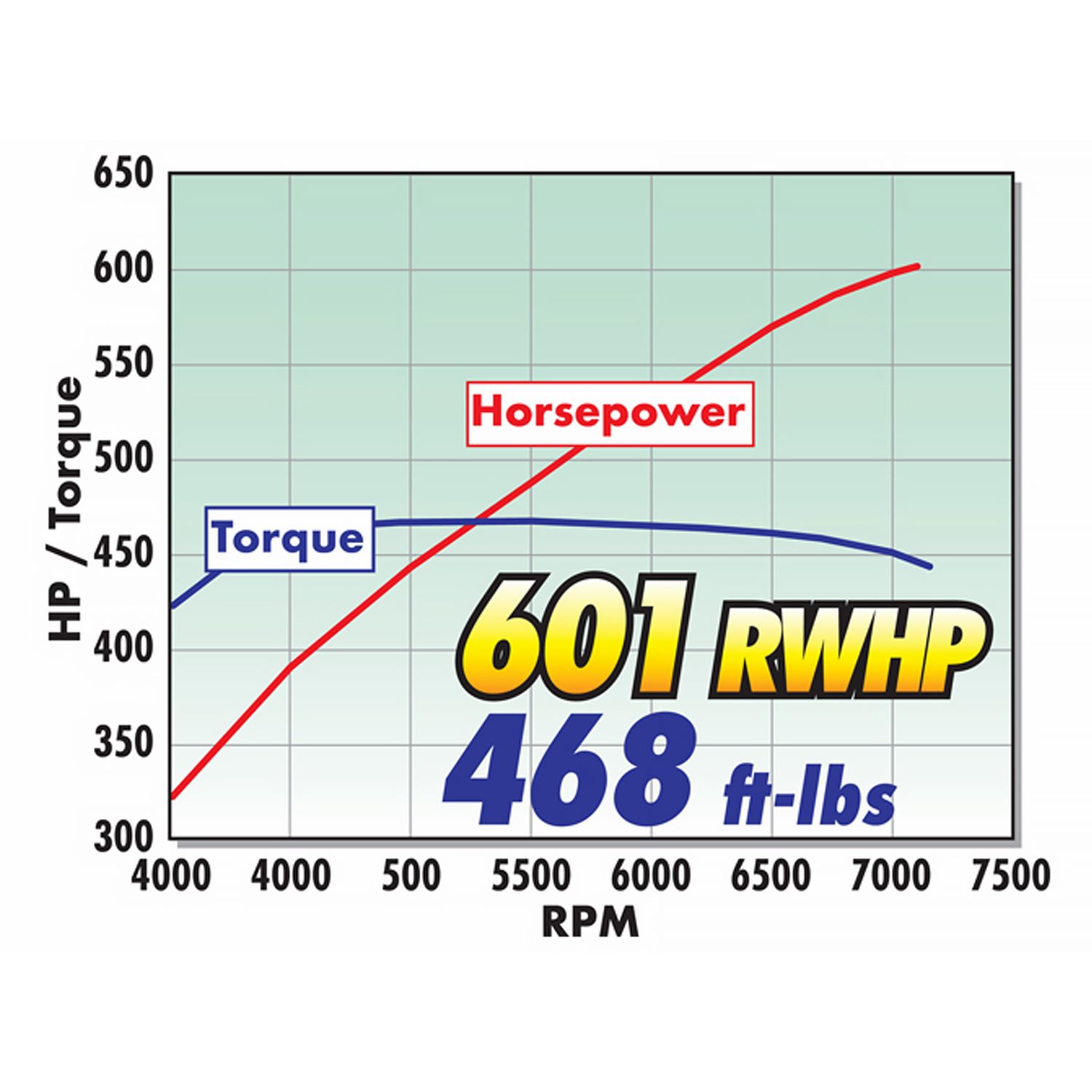

The Edelbrock Stage 1 Supercharger System #15812 is engineered to deliver serious power gains for 2019-2021 Ford F-150 trucks equipped with the Gen III DI/PI 5.0L Coyote engine and 10-speed automatic transmission. This complete forced induction system produces approximately 601 wheel horsepower and 468 lb-ft of torque on 93 octane fuel, transforming your truck's performance for towing, hauling, or spirited driving.

Key Features:

  • Eaton Gen VI 2650 TVS Supercharger: High-efficiency rotating assembly with four-lobe design and 170 degrees of twist delivers maximum airflow with minimal temperature rise and exceptionally quiet operation
  • Integrated Bypass Valve: Eliminates parasitic loss under light throttle conditions to maintain fuel economy when not under boost
  • Front Drive, Front Inlet Design: Shorter, less restrictive intake path improves airflow without requiring a power-robbing jackshaft
  • Dual-Pass 3-Core Air-to-Water Intercooler: High-capacity intercooler system with front-mount heat exchanger keeps intake air temperatures low for consistent power delivery
  • 50-State Emissions Legal: CARB-certified for use in all 50 states
  • Dual Calibration: Includes optimized tunes for both 91 and 93 octane fuel for stock vehicles with optional cat-back exhaust
  • 3-Year/36,000-Mile Powertrain Warranty: Industry-leading warranty protection where applicable

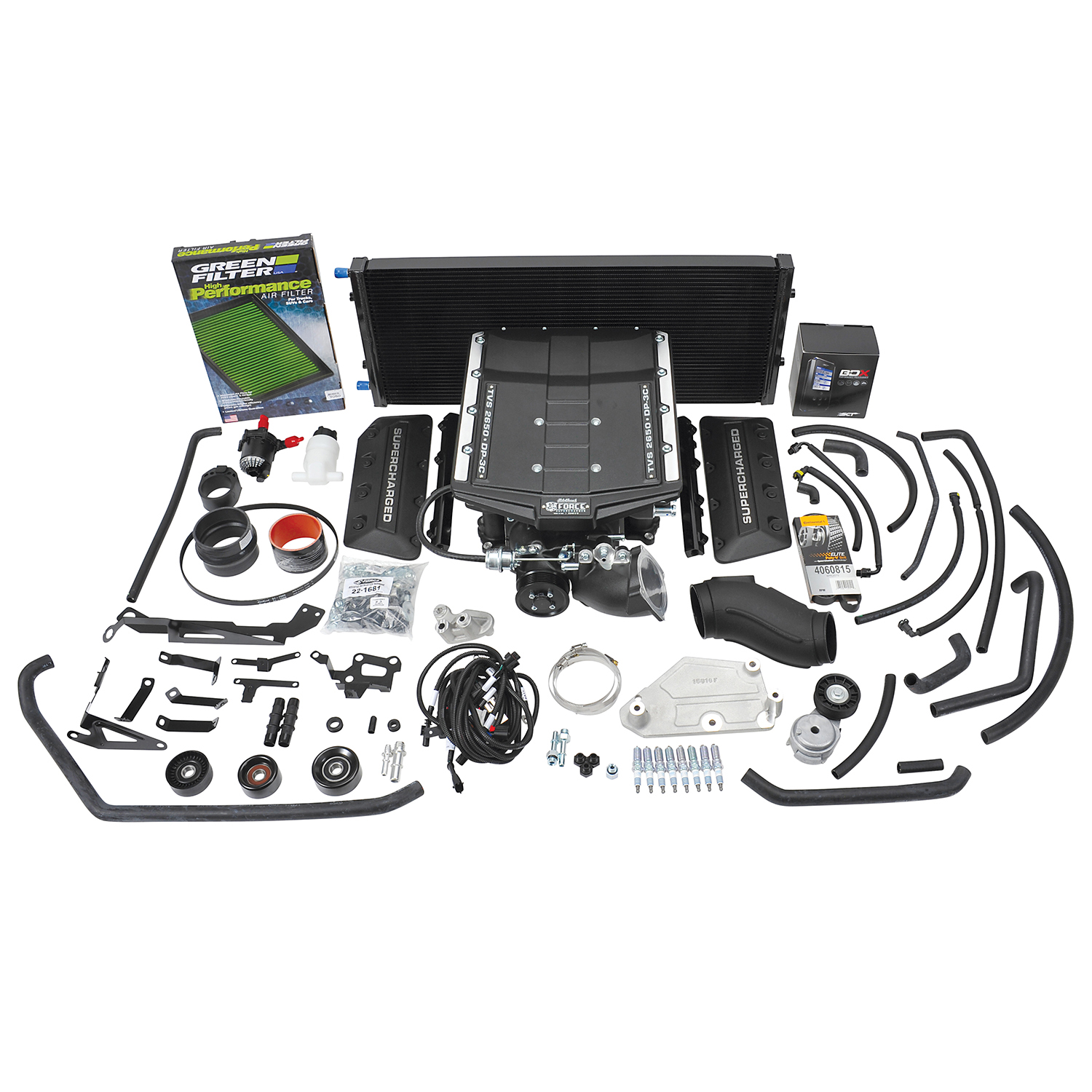

This is a complete bolt-on supercharger system designed for ease of installation and maximum reliability. Whether you're looking to improve towing performance, reduce acceleration times, or simply unleash the full potential of your 5.0L F-150, the Edelbrock Stage 1 Supercharger delivers exceptional power gains with factory-like drivability.

Products specifications

Fits

2019-2020 Ford F-150

Housing Material

Cast aluminum

Finish

Black Powder Coated

Mounting Bracket Included

Yes

Universal Or Specific Fit

Specific

Mounting Hardware Included

Yes

Gasket Or Seal Included

Yes

Pulley Belt Width

6-Rib

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Outside Pulley Diameter

3.5

Oil Capacity

150

Internal Step Up

Yes

Vehicle Model

F-150

Harmonic Balancer Diameter

Stock

Rotor Type

Eaton TVS 2650

Quantity

Kit

System Type

Stage 1 - Street System

Maximum Boost Pressure

13

Maximum Torque

468RW

Maximum Pressure Reading

13

Maximum Horsepower

601RW

CARB Executive Order Number

D-215-115

Center Housing Cooling Type

Intercooler

Tensioner Included

Yes

Hose Included

Yes

Calibration

Yes

9040

D-215-122
