Edelbrock 153880 E-Force Stage II Supercharger Kit 2018-2020 Mustang 5.0L

Manufacturer

Part Number

153880
Sale Price

$12,732.97

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

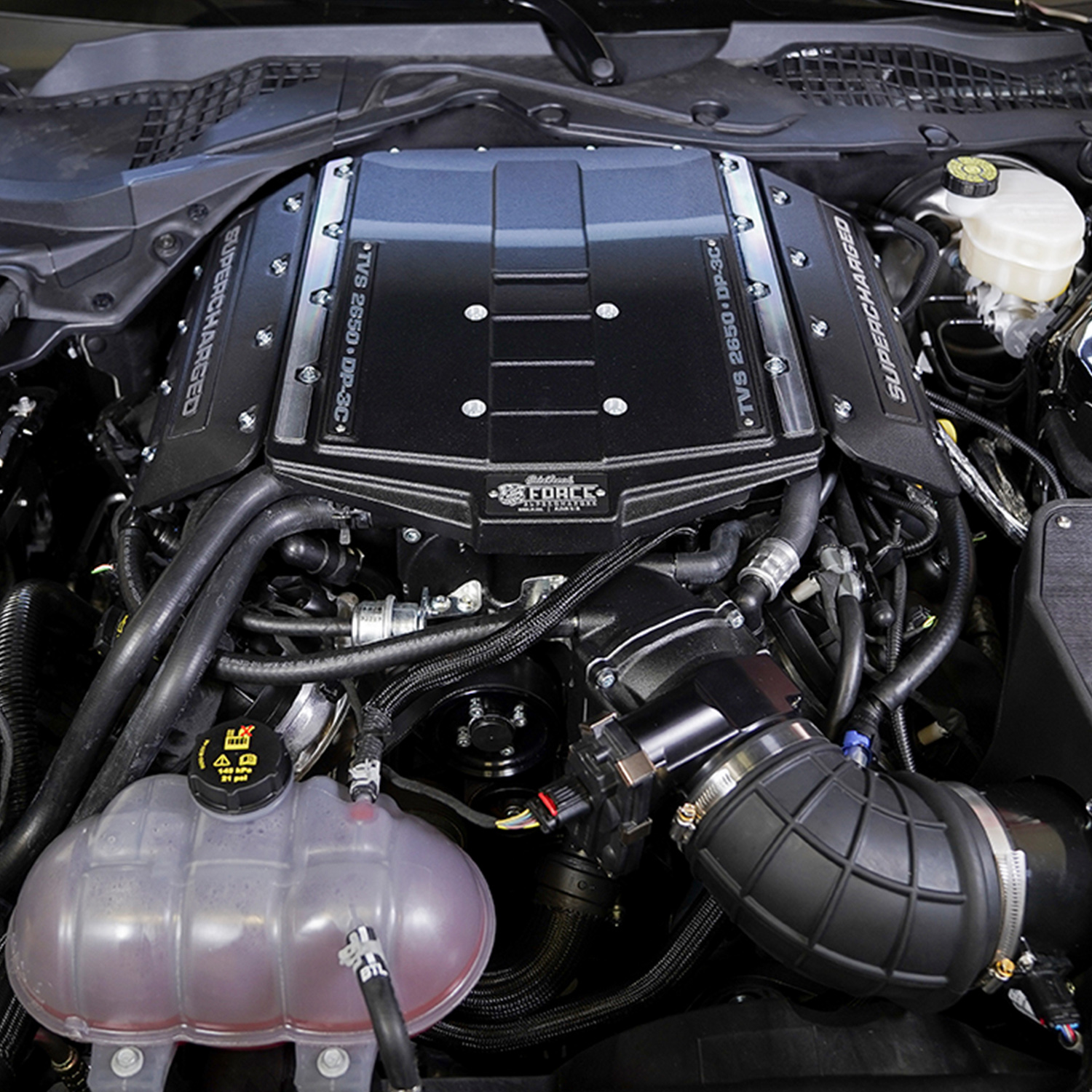

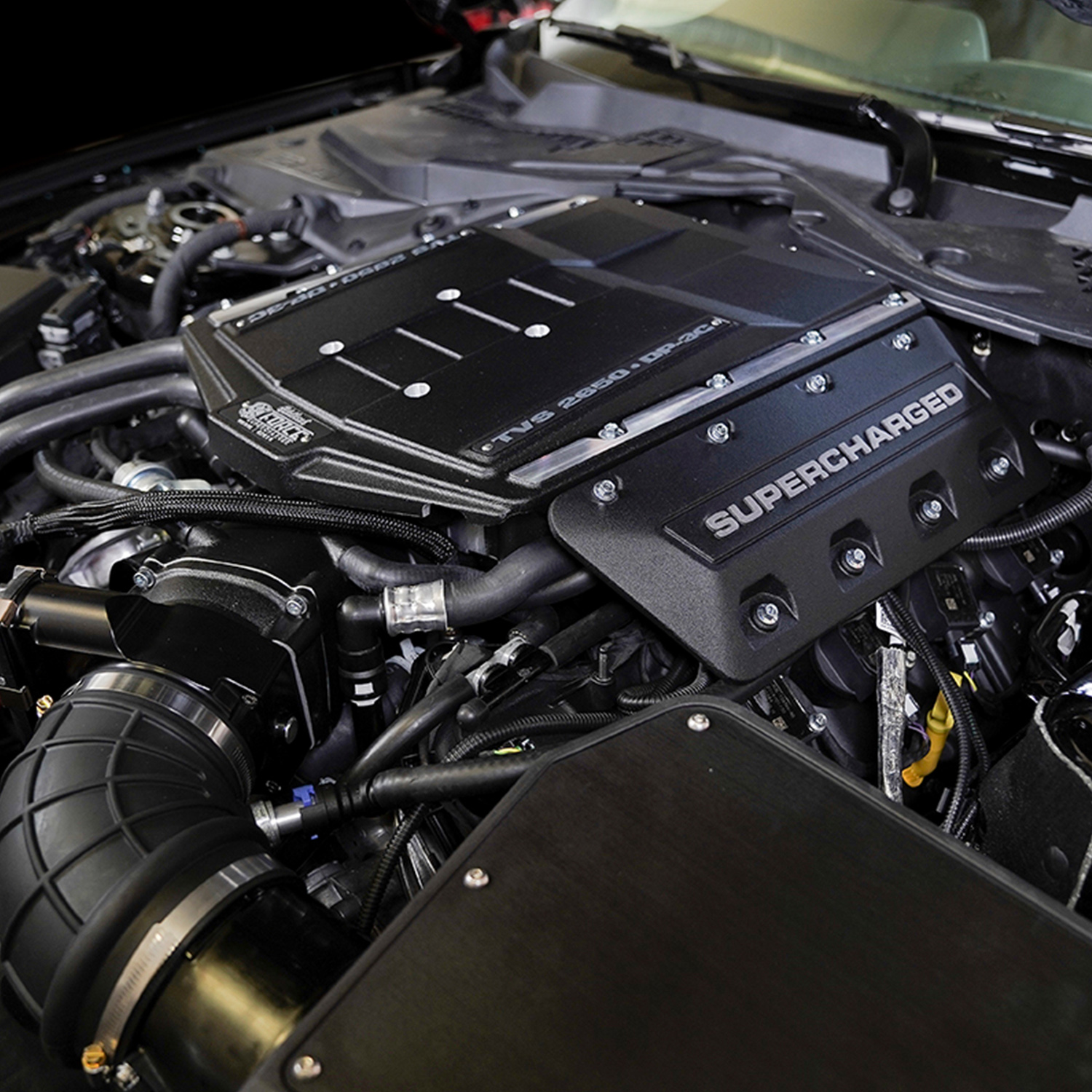

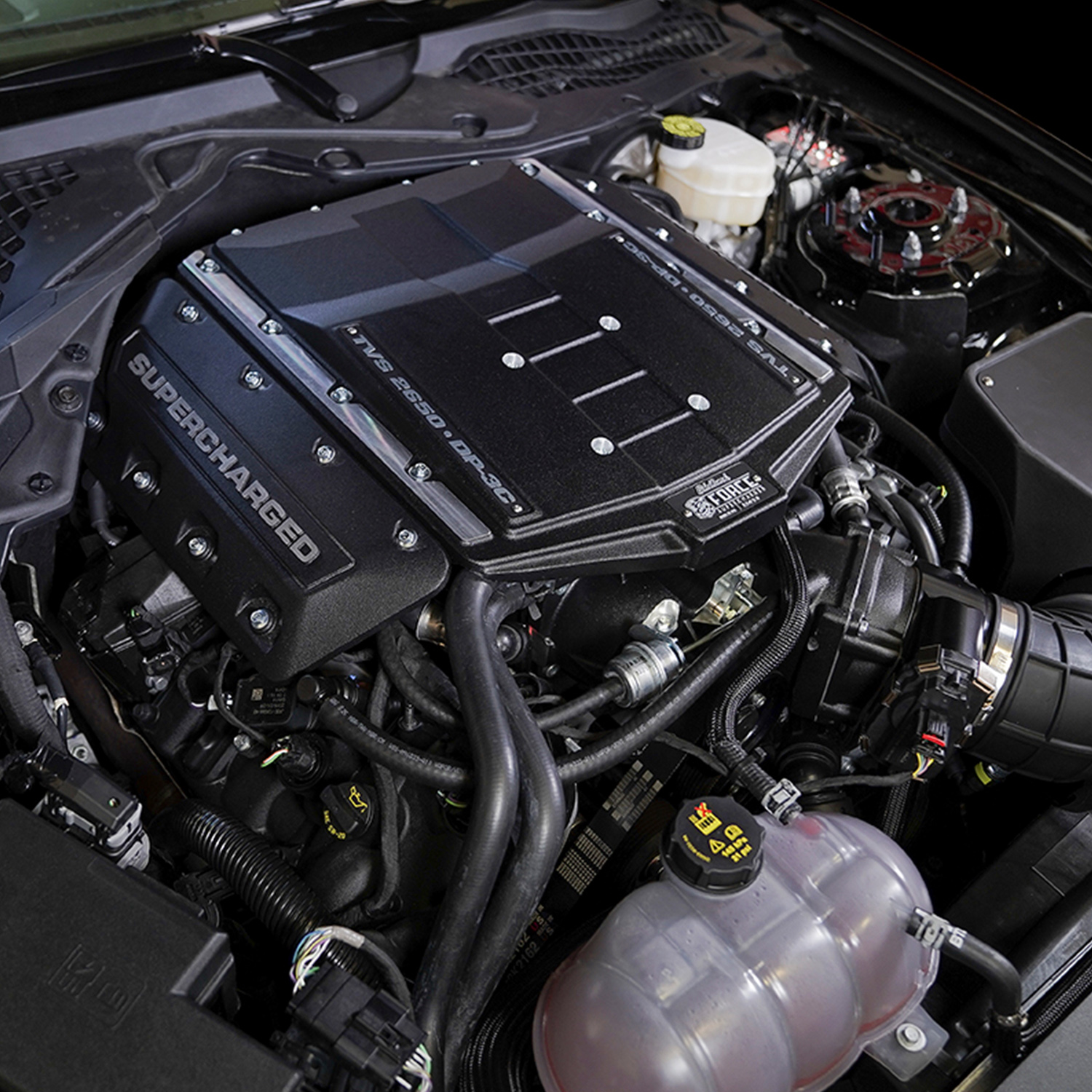

The Edelbrock E-Force Stage II Supercharger System delivers the highest horsepower of any 50-state legal supercharger available for 2018-2020 Ford Mustang 5.0L Coyote engines. This complete bolt-on kit is engineered to maximize the potential of the Gen 3 DI/PI Coyote engine without requiring any hood or body modifications.

Key Features:

  • R2650 TVS rotor assembly with integrated DP3C (dual-pass, three-core) air-to-water intercooler for superior cooling and increased power potential
  • Advanced 170-degree high-twist lobes with upgraded bearings and reinforced timing gears for exceptional reliability
  • Massive 103mm billet aluminum throttle body—23mm larger than Stage I for dramatic airflow improvement
  • High-flow air intake system with 113mm MAF housing for optimized performance
  • Upgraded fuel system with 50 lb/hr direct-port fuel injectors and Fuel Pump Voltage Booster to support increased power output
  • 8-rib drive belt upgrade minimizes slippage and maintains consistent boost pressure under full throttle
  • Durable black powder-coated finish integrates seamlessly into the Mustang engine bay

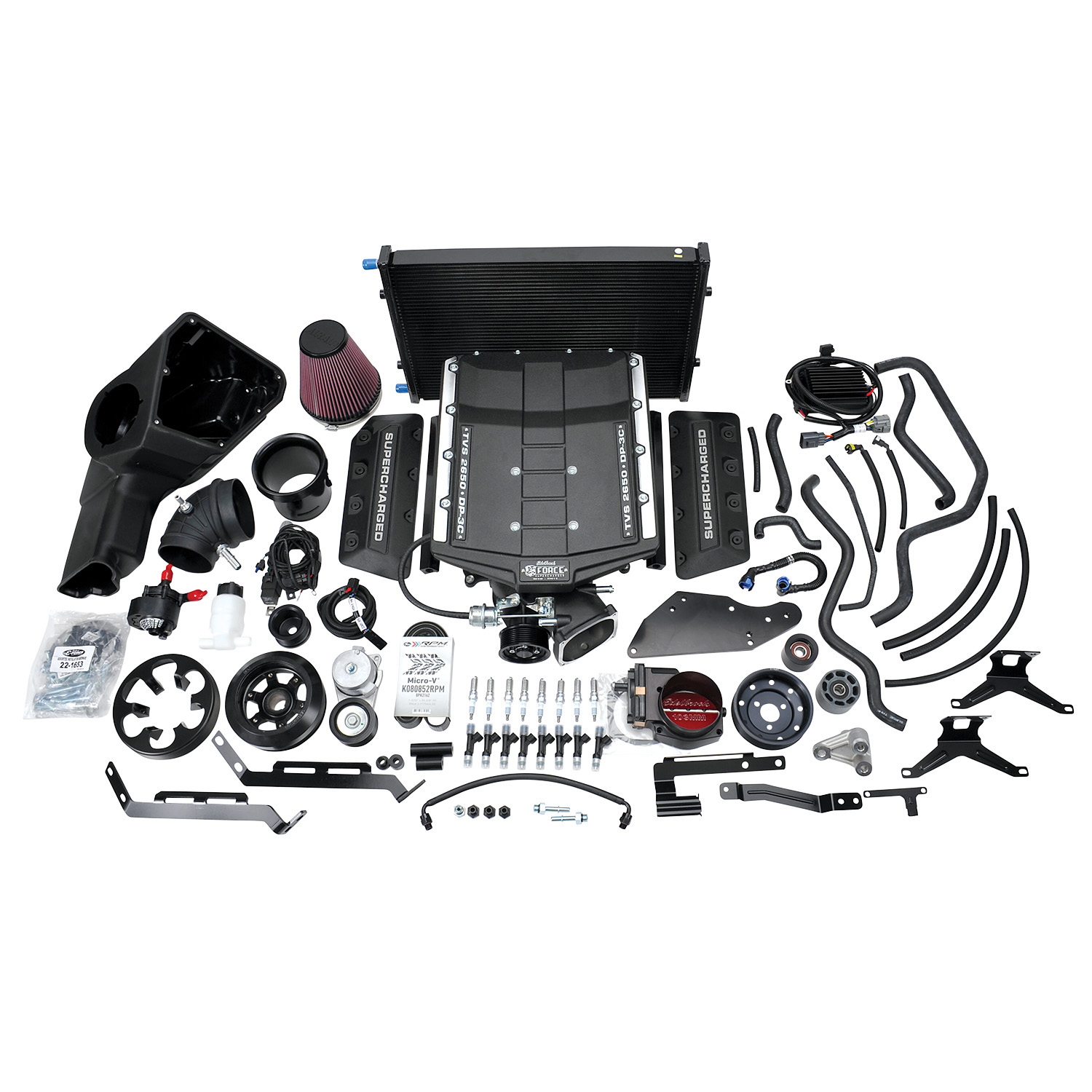

  • Complete kit includes preformed hoses, all necessary hardware, and detailed full-color installation manual

This Stage II system represents a significant upgrade over the Stage I kit with its larger throttle body, enhanced fuel delivery, and improved airflow characteristics. Backed by Edelbrock's industry-leading 3-year/36,000-mile powertrain warranty and certified 50-state emissions legal. Note: This kit does not include a handheld tuner, which must be purchased separately.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products specifications

Fuel Pump Included

Yes

Housing Material

Cast aluminum

Finish

Black Powder Coated

Universal Or Specific Fit

Specific

Mounting Hardware Included

Yes

Gasket Or Seal Included

Yes

Mounting Bracket Included

Yes

Vehicle Model

Mustang

RGL

WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Outside Pulley Diameter

3.5

Oil Capacity

150

Internal Step Up

Yes

Calibration

No

Air Filter Included

Yes

Fuel Injector Type

50

Rotor Type

Eaton TVS 2650

Quantity

Kit

CARB Executive Order Number

D-215-115

Harmonic Balancer Diameter

7.75

Center Housing Cooling Type

Intercooler

System Type

Stage 2 - Street/Strip System

Hose Included

Yes

Spark Plugs Included

Yes

CARB Executive Order Number

D-215-121

Pulley Belt Width

8-Rib

E.O.

D-215-122
