Industrial Injection 22A424 SX-E A/R Gen Style Single Turbo Kit - S300 62/74 0.91 2nd

(2007-2009 Dodge Ram 2500; 2007-2009 Dodge Ram 3500)

Manufacturer

Part Number

22A424
Black Friday Price

$2,969.57

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

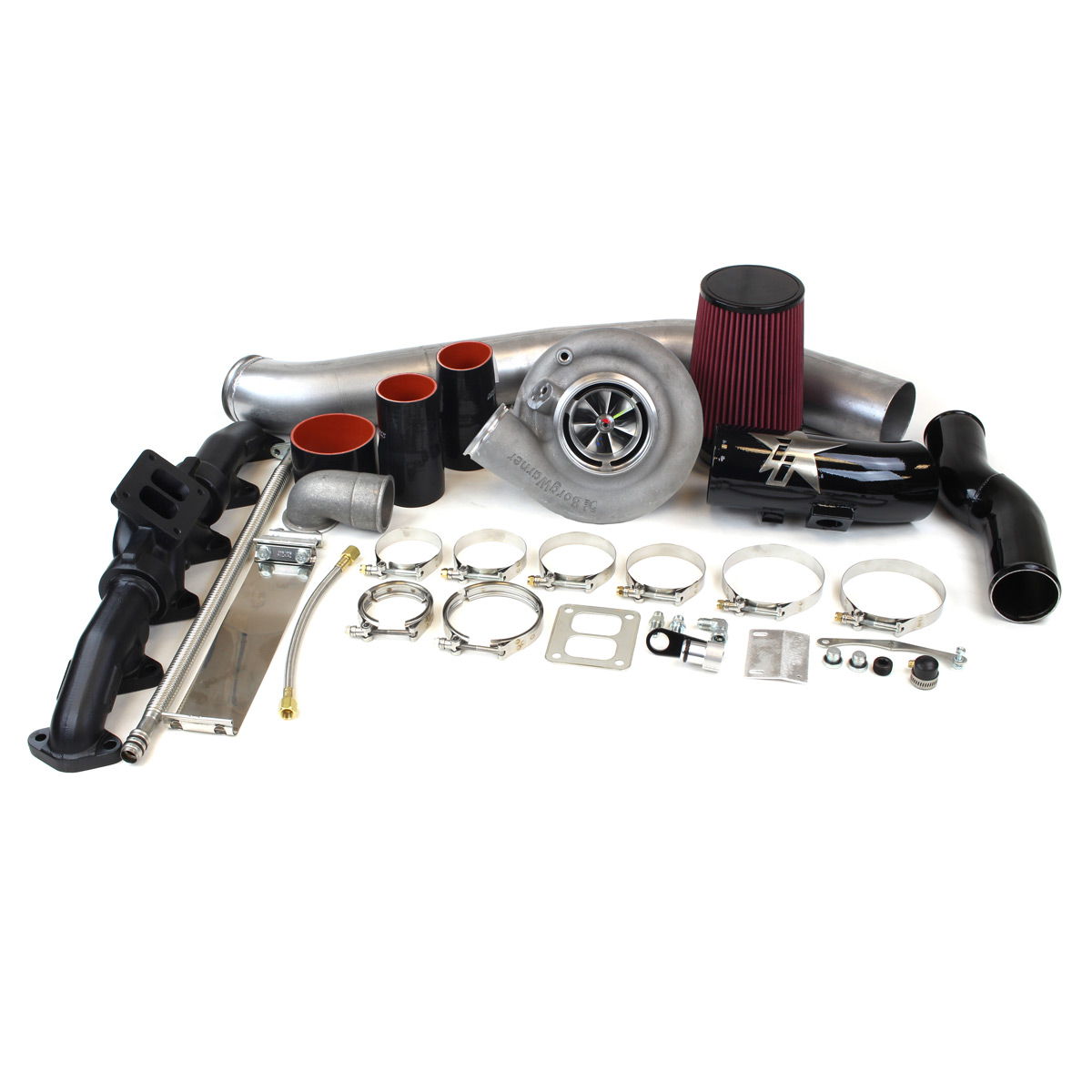

The Industrial Injection 22A424 is an S300 SX-E 62/74 Single Turbo Kit configured with a 0.91 A/R T4 twin-scroll turbine housing — the most popular A/R option in the lineup — and built around a 2nd Gen center-mount manifold design for the 6.7L Cummins diesel engine. This is a complete, bolt-on performance upgrade engineered to replace the factory Variable Geometry Turbocharger (VGT) with a purpose-built diesel performance turbo system.

The Borg Warner S300 SX-E turbocharger at the heart of this kit features a 62mm compressor wheel paired with a 74mm turbine wheel, rated to support up to 600 horsepower. The SX-E series turbos are purpose-built for diesel performance, delivering substantially more airflow and quicker spool-up compared to conventional modified S300 turbos. The SX-E comes standard with an upgraded 360-degree thrust bearing and Forged Milled Wheel (FMW) compressor for maximum durability and performance.

This kit utilizes a high-flow T4 manifold in a 2nd Gen center-mount configuration, positioning the turbo between cylinders three and four on the head — the optimal location for even airflow distribution across all cylinders. The factory 6.7L offset turbo placement (cylinders four and five) leaves front cylinders underserved; this kit corrects that with the proven 2nd Gen center-mount design.

Key Features:

  • Borg Warner S300 SX-E turbocharger — 62mm compressor / 74mm turbine wheel (up to 600hp)
  • 0.91 A/R T4 twin-scroll turbine housing — the most popular configuration
  • 360-degree thrust bearing and Forged Milled Wheel (FMW) compressor
  • High-flow T4 manifold in 2nd Gen center-mount style
  • Eliminates the failure-prone factory VGT (Variable Geometry Turbocharger)
  • Reduces EGTs (Exhaust Gas Temperatures) and broadens the overall powerband
  • Includes high-flow HX40 downpipe
  • Complete kit — ready to install

Turbine Housing Options Available:

  • 0.88 A/R T4 Single Scroll
  • 0.91 A/R T4 Twin Scroll (this kit)
  • 1.00 A/R T4 Twin Scroll

Important: This turbo kit requires custom ECM tuning or programming (such as EFILive) to accommodate a non-VGT turbocharger on the 6.7L Cummins platform. For closed-circuit competition use only. Not legal for on-road, off-road, or dual-use. Compliance with all applicable state and federal emissions standards is the consumer's responsibility.

Products specifications

Fits

2007-2009 Dodge Ram 2500; 2007-2009 Dodge Ram 3500
