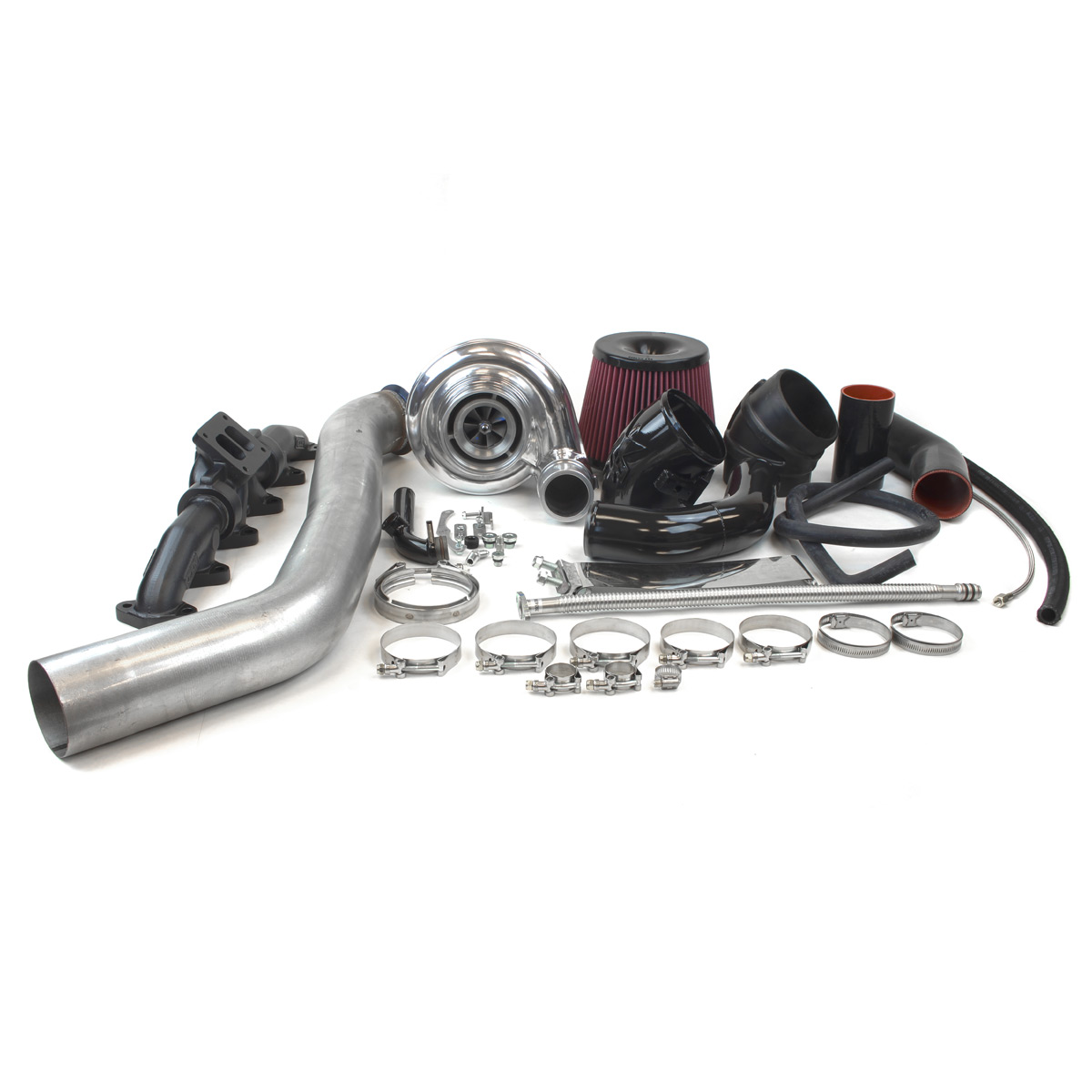

Industrial Injection 22C414 S467.7 Turbo Swap Kit 6.7L Cummins .90 A/R Race Cover

The Industrial Injection 22C414 is a complete S467.7 turbocharger swap kit engineered for the 6.7L Cummins diesel engine. Built around the proven S400 platform with a race cover compressor housing and a .90 A/R T4 turbine housing, this kit delivers fast spool-up characteristics while still producing strong mid-range and top-end power — making it the ideal choice for high-output competition builds that demand quick throttle response.

This is a complete drop-in turbo swap kit that includes all major hardware, brackets, lines, and plumbing required for a clean, professional installation on 2013–2018 Ram 2500/3500 trucks equipped with the 6.7L Cummins. The .90 turbine A/R option within the S467.7 lineup is the quickest-spooling configuration, prioritizing low-end response and reduced turbo lag over ultimate top-end flow.

Key Features:

• 67.7mm forged milled compressor wheel for high efficiency and durability
• 83/74mm turbine wheel for strong exhaust energy extraction
• .90 A/R T4 turbine housing — quickest spool option in the S467.7 lineup
• 85 lbs/min maximum airflow capacity
• Race cover S400 architecture for improved compressor efficiency
• Designed to deliver lower EGTs (exhaust gas temperatures) vs. stock VGT turbo
• Complete install kit — includes major swap hardware for a clean installation
• Increased reliability over the factory variable geometry turbocharger

Turbo Specifications:

• Compressor Wheel: 67.7mm
• Turbine Wheel: 83/74mm
• Turbine A/R: .90 T4
• Max Airflow: 85 lbs/min
• Also available in 1.00 A/R (22C415) and 1.10 A/R (22C416)

Injector upgrades and a proper engine tune are strongly recommended to fully realize the spool and power potential of this kit. Also available in 1.00 A/R (part# 22C415) and 1.10 A/R (part# 22C416) turbine housing options for builders targeting more top-end power.

Competition Use Notice: All Industrial Injection performance products are intended for closed-circuit competition use only. These products are not legal for on-road, off-road, or dual-use applications. Compliance with all applicable state and federal emissions standards is the sole responsibility of the consumer. California residents: This product can expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov for more information.
