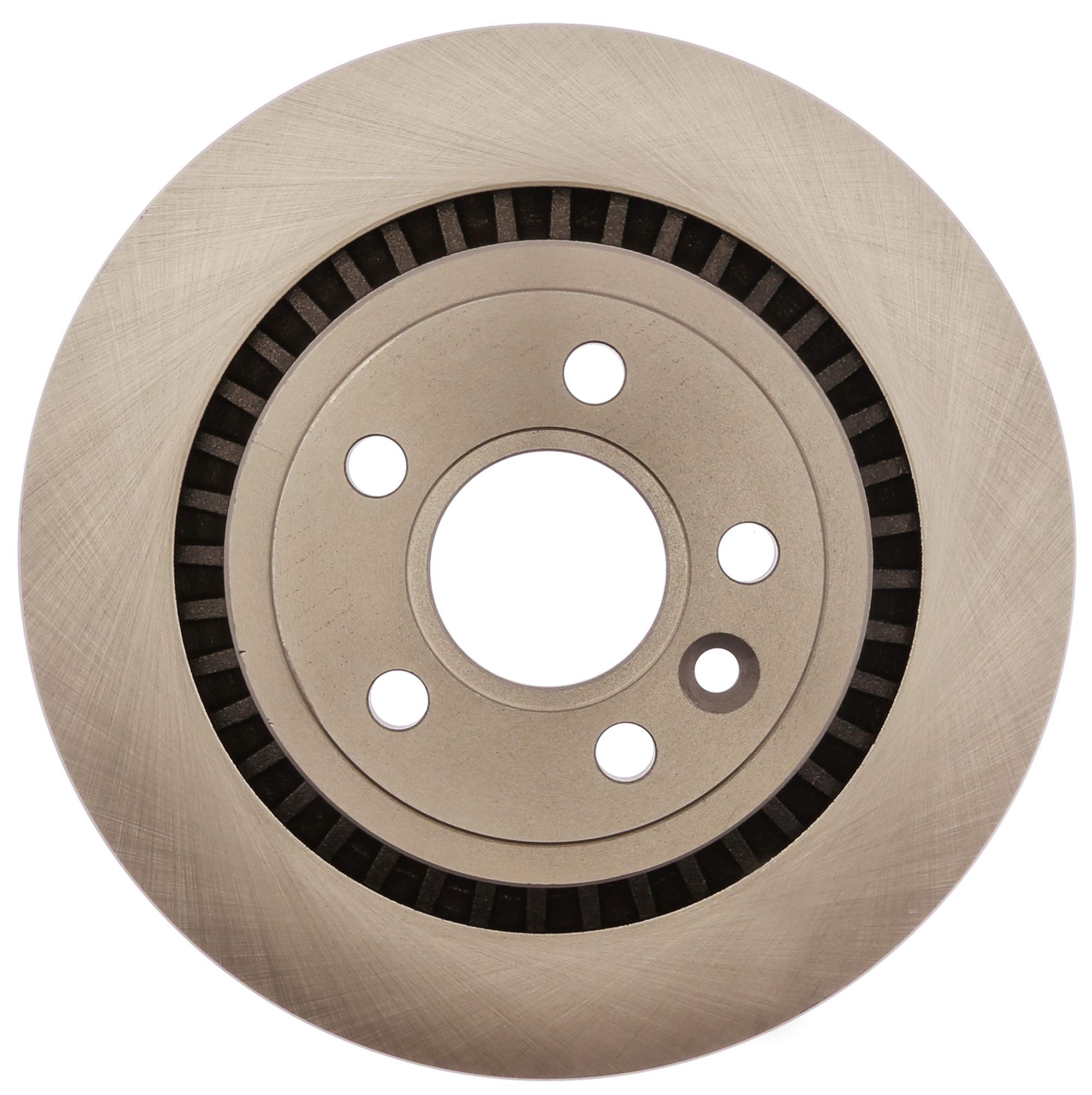

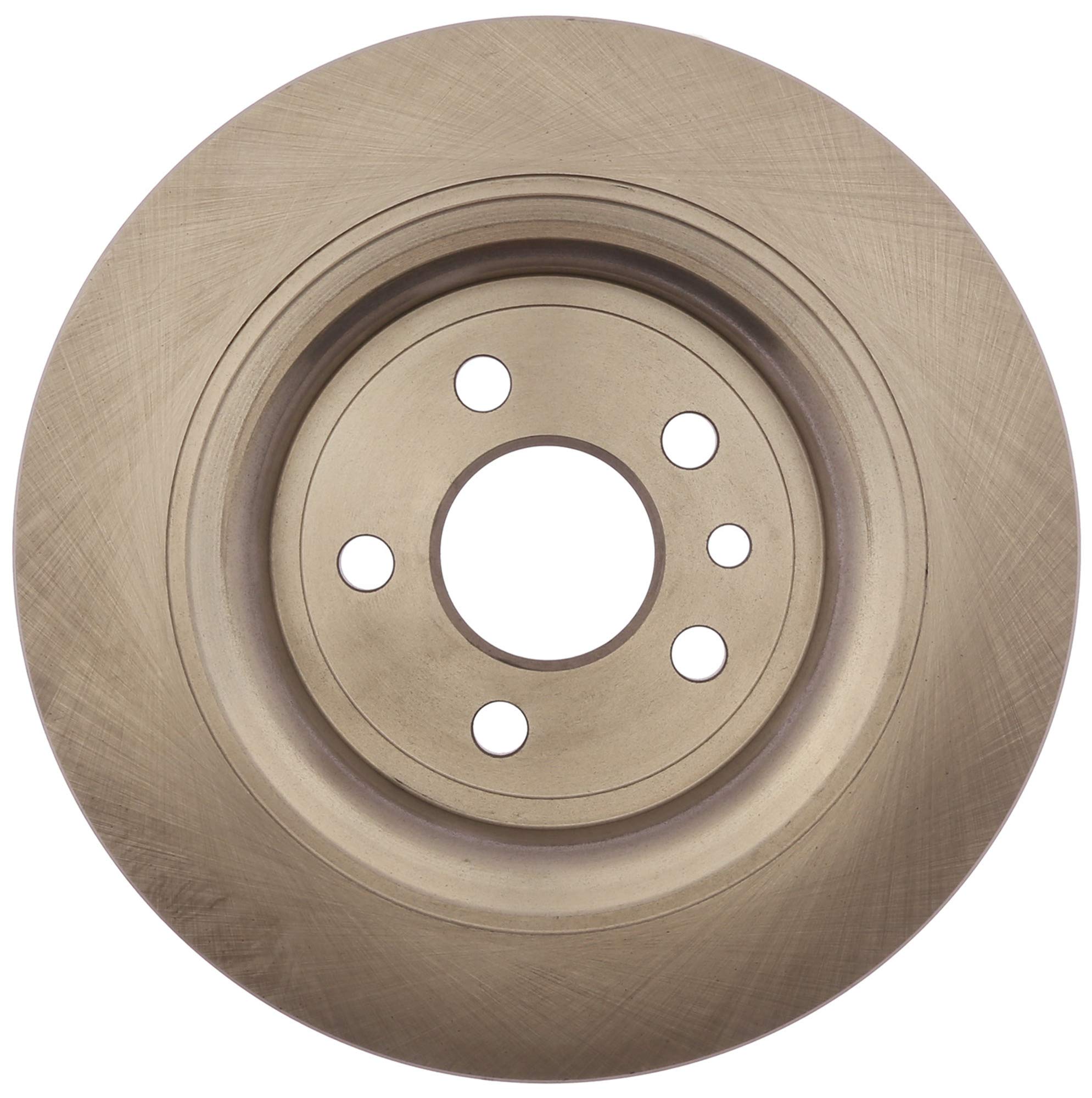

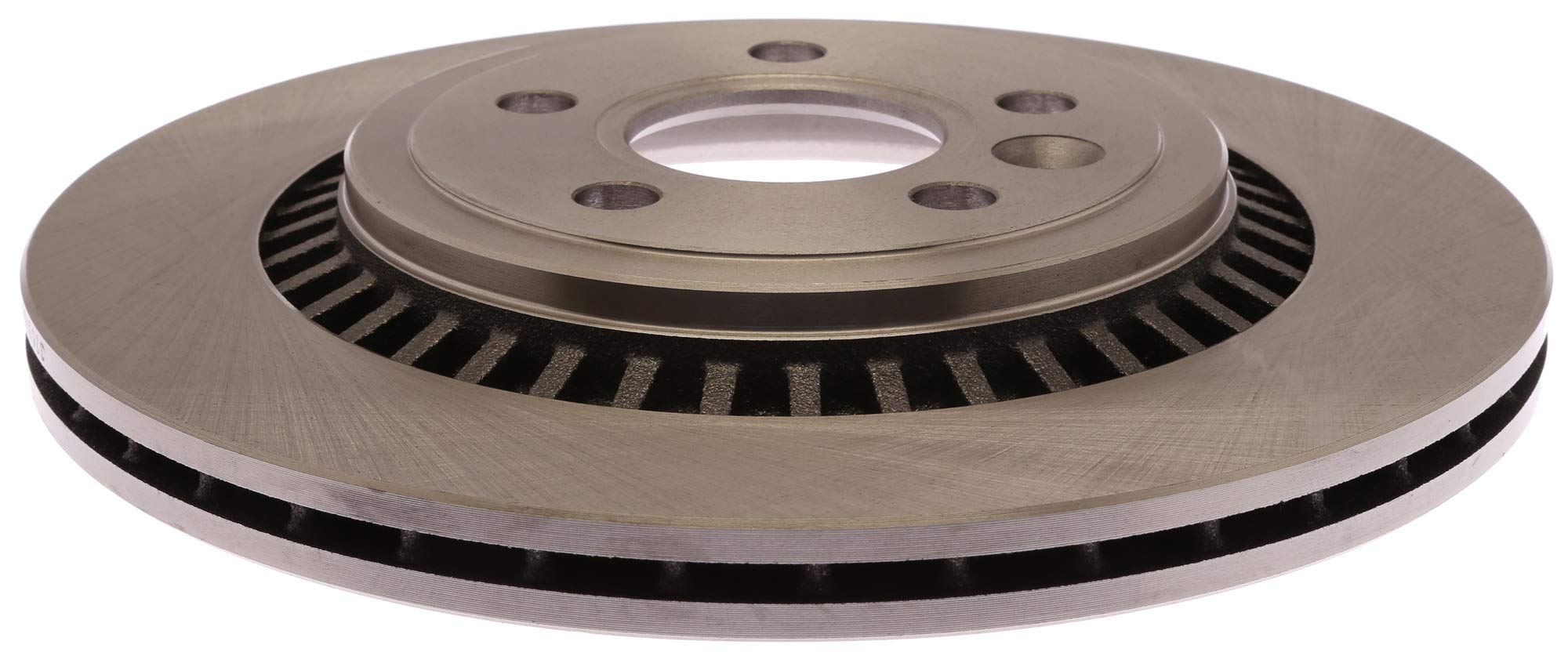

Raybestos 980609R R-Line Rear Vented Disc Brake Rotor

The Raybestos 980609R R-Line brake rotor is engineered to deliver dependable stopping power for daily driving conditions. This rear vented rotor is designed from OE samples and manufactured with G3000-qualified material to ensure proper form, fit, and function for reliable braking performance.

Key Features:

• Meets SAE standards for tensile strength to provide maximum service life and structural integrity
• Non-directional ground finish ready to install right out of the box
• Minimal lateral runout of 0.004" with thickness variation less than 0.0005" for reduced pedal pulsation and brake noise
• Mill balanced and 100% validated to minimize vibrations and ensure smooth stopping performance
• OE-matched vane configuration, weight, and design for optimal heat dissipation
• Vented design for enhanced cooling and fade resistance

Technical Specifications:

• Center Hole Diameter: 2.504" (63.6mm)
• Inside Diameter: 8.386" (213mm)
• Mounting Bolt Hole Circle Diameter: 4.252" (108mm)
• Mounting Bolt Hole Quantity: 5
• Discard Thickness: 0.787" (20mm)
• Conventional rotor type (not drum-in-hat)

OEM Cross-References: Volvo 30769060, 31341483, 31471028; Bosch 52011374; Brembo 09.9587.11; Centric 120.39045, 121.39045; NAPA SDK6600

This replacement rotor provides industry-leading coverage and is backed by professional-grade quality standards. Designed for cars, light trucks, and SUVs requiring reliable brake performance for everyday driving conditions.
