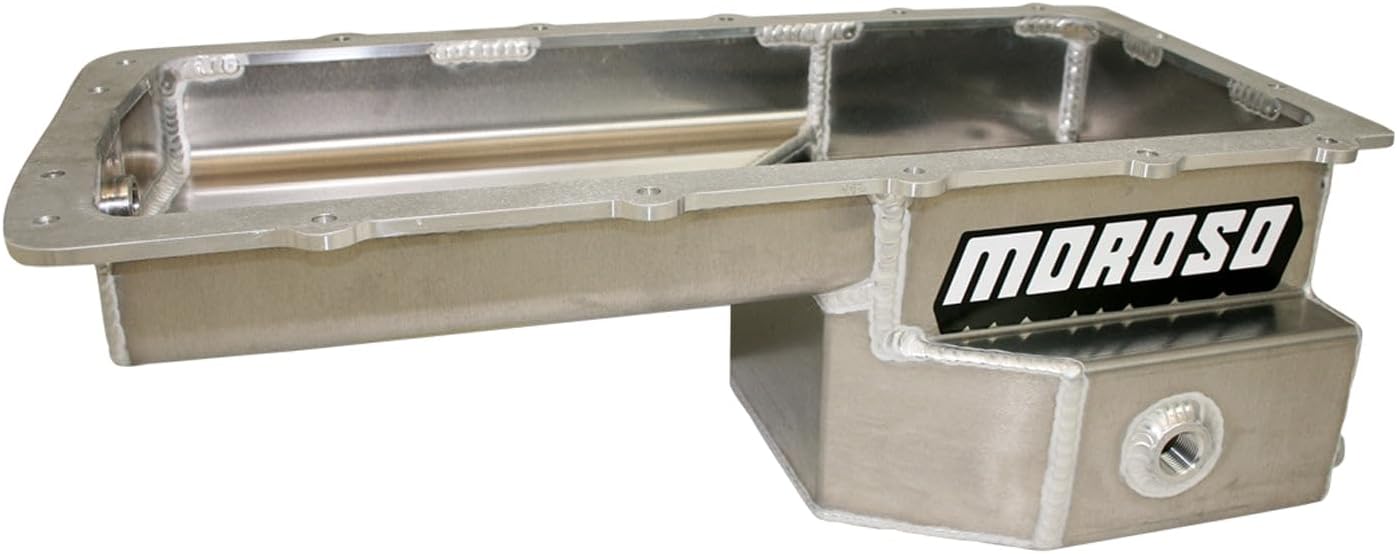

Moroso 20574 Drag Race Oil Pan Ford 5.0L Coyote Rear Sump Aluminum 9 Quart

The Moroso 20574 is a fully fabricated aluminum drag race oil pan engineered specifically for Ford 5.0L Coyote engines in rear sump applications. This high-performance wet sump pan features a 9-quart capacity and measures 6-5/8 inches deep, providing superior oil control during hard acceleration and high-G launches at the drag strip.

Key Features:

• Race-proven trap door assembly and removable anti-slosh baffle for improved oil control
• Thick billet aluminum rail with 2-3/8 inch deep front section and 6-5/8 inch deep by 9 inch long rear sump
• Passenger side kickout design with internal baffling
• 1/2 inch NPT fitting for supercharger/turbo drain back and 1/2 inch NPT fitting for oil temperature sender
• 20mm fitting for factory oil level sensor
• Dipstick provision (dipstick not included)
• Natural aluminum finish

Application:

Fits 2011-Up Mustang, 1994-2010 Mustang, and other Ford rear sump conversions with Ford Coyote or Voodoo engines. Designed for use with 1-piece rear main seal applications.

Important Notes:

This pan requires a separate oil pump pickup tube - use Moroso part number 24574 for Gen 1-2 Coyote engines or 24583 for Gen 4 Coyote applications. Gaskets, hardware, windage tray, and oil pump are sold separately. Oil pan capacity does not include oil filter capacity.
