Skyjacker F1782LSKS-N 8.5 in. Class II 4-Link Coil-Over Suspension Lift Kit with Nitro 8000 Shocks

The Skyjacker F1782LSKS-N is an 8.5-inch Class II suspension lift kit featuring a complete front 4-Link conversion system paired with Nitro 8000 rear shocks and Softride rear leaf springs. This comprehensive lift solution is engineered to deliver serious ground clearance while preserving factory-like ride quality on both paved roads and demanding off-road terrain.

Front 4-Link Conversion System:

The heart of this kit is a precision-engineered 4-Link conversion that replaces the OEM radius arm setup with integrated radius arm drop brackets plus upper and lower adjustable control arms. The control arms are formed from 2-inch OD x 0.250-wall DOM tubing as fully adjustable Flex Links, allowing precise caster correction and improved handling geometry at ride height.

Nitro 8000 Rear Shocks:

The included Nitro 8000 shock absorbers feature multi-stage, velocity-sensitive valving that instantly responds to changing on- and off-road conditions. This true velocity-sensitive valving delivers a stable, controlled ride with improved handling and maximum comfort across varying speeds and terrain types.

Softride Rear Leaf Springs:

The rear of the kit is supported by Skyjacker Softride leaf springs featuring tapered steel construction for superior tensile strength. This design distributes loads more evenly across a greater area and reduces inter-leaf tension for a smoother, more compliant ride under load.

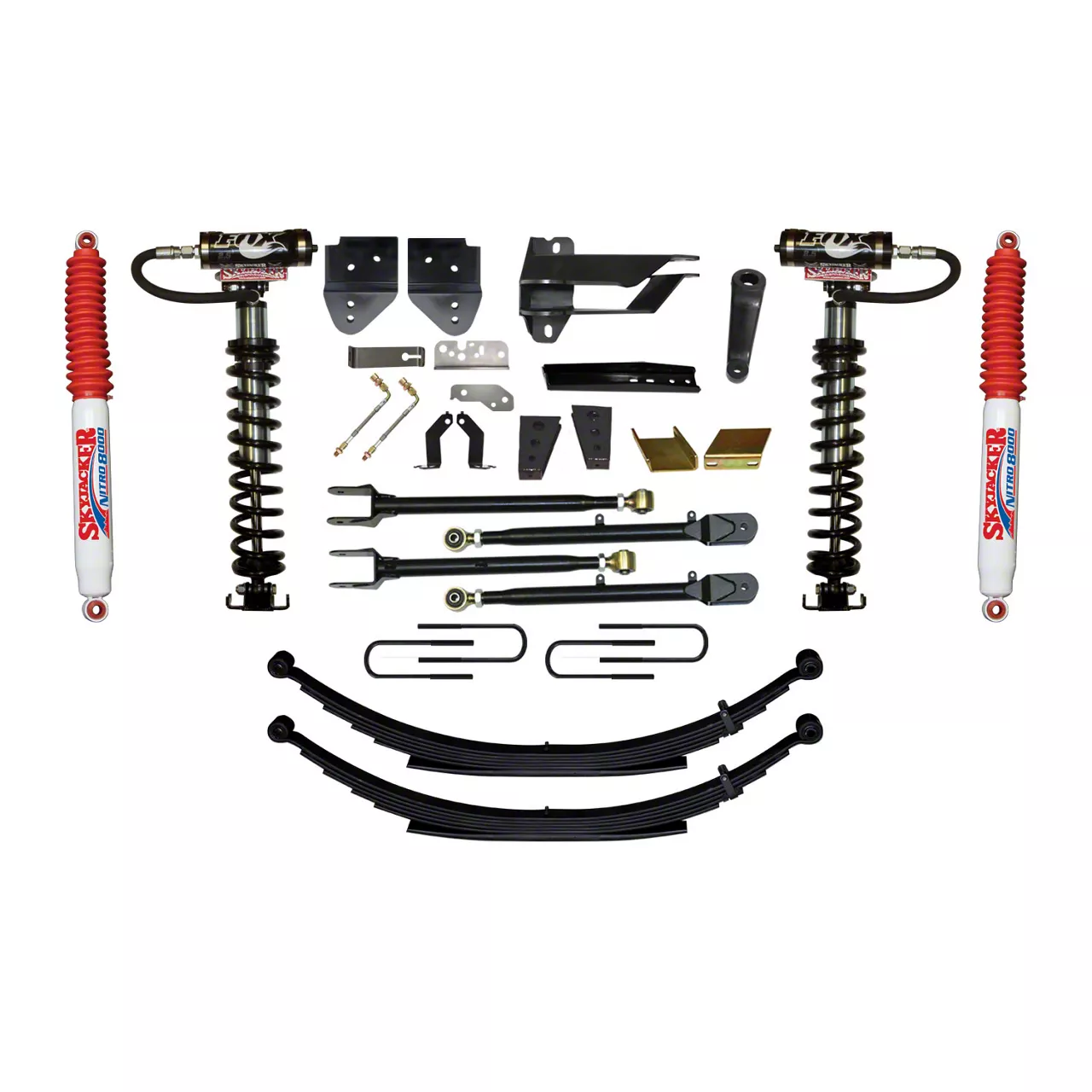

What's Included:

• Front coil-over shocks
• Coil-over mounting brackets
• Pitman arm
• Track bar bracket
• Sway bar brackets
• Brakeline brackets
• Radius arm brackets
• 4-Link control arms
• Rear Nitro 8000 shocks
• Rear Softride leaf springs
• Fabricated rear lift blocks
• U-bolts
• All necessary mounting hardware
• Detailed installation instructions

Important Notes:

• Does not fit models equipped with the Tremor Package
• If front driveshaft vibration occurs, order optional extended front driveshaft Part # F17685DS

The complete kit is designed to maintain factory geometry angles, alignment specifications, and structural integrity — delivering both on-road refinement and off-road readiness in a single, thoroughly engineered package.
