Skyjacker F1782LSKS-B 8.5 in. Class II 4-Link Coil-Over Suspension Lift Kit with Black Max Shocks

The Skyjacker F1782LSKS-B is a Class II 8.5-inch suspension lift kit featuring a complete front 4-Link conversion system paired with FOX 2.5 Factory Series Coilover Reservoir shocks and Skyjacker Softride leaf springs in the rear. Engineered for serious off-road performance without sacrificing on-road refinement, this kit replaces the factory radius arm setup with a fully integrated 4-Link system for superior geometry, caster control, and articulation.

Front 4-Link Coil-Over System:

• FOX 2.5 Factory Series Coilover Reservoir shocks provide race-inspired damping performance
• Upper and lower adjustable Flex Link control arms formed from 2-inch OD x 0.250-wall DOM tubing
• Radius arm drop brackets replace factory OEM radius arms for improved geometry
• Adjustable design allows proper caster settings to optimize on- and off-road handling

Rear Softride Leaf Spring System:

• Skyjacker Softride leaf springs feature tapered leaf design to distribute loads more evenly and increase flex at the leaf ends
• Teflon wear pads between leaves help eliminate friction and reduce noise
• Paired with Skyjacker Black Max ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube rear shocks
• ADX 2.0 shocks feature nitrogen charging with Internal Floating Piston technology for rapid shock reaction response

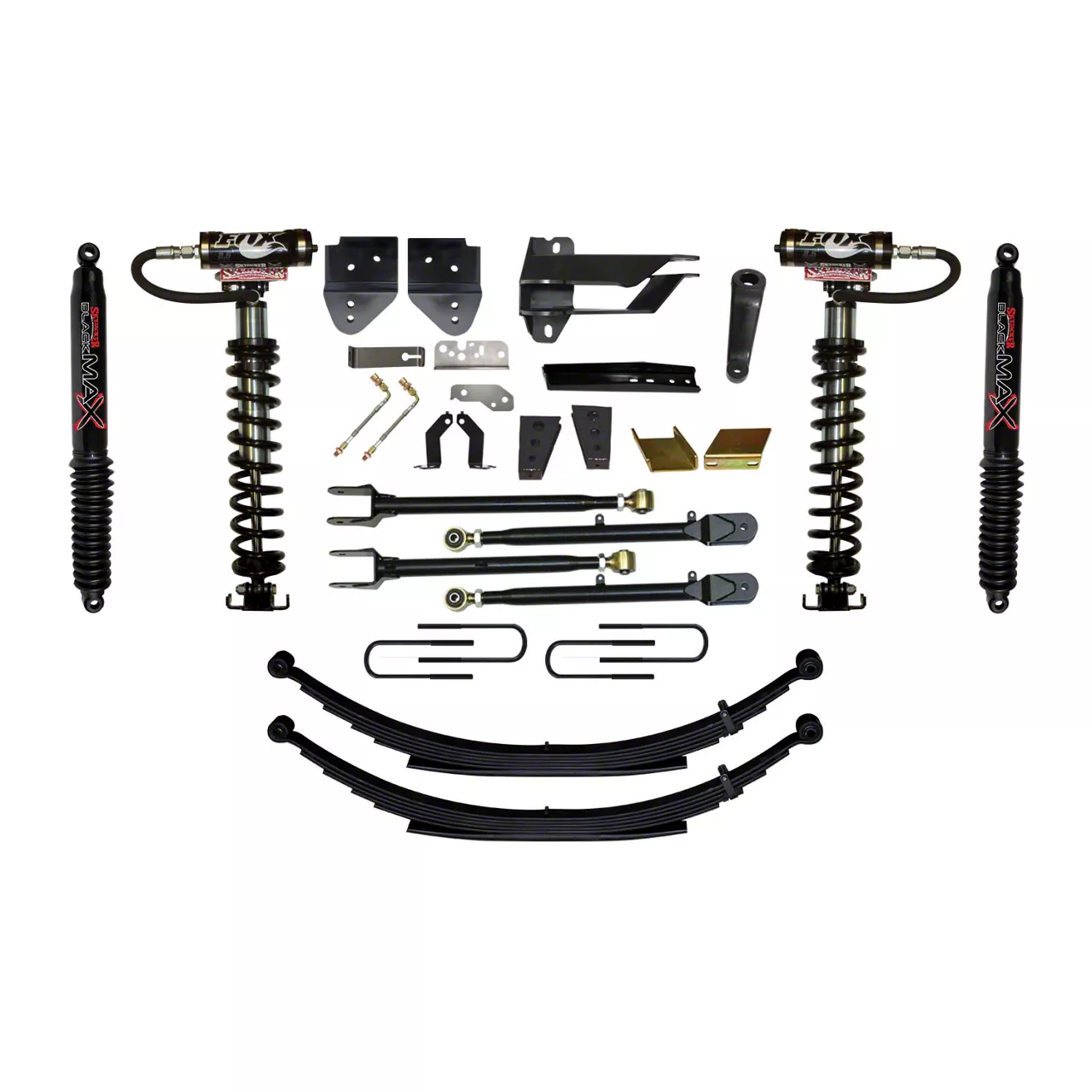

Complete Kit Includes:

• Front Coilover Shocks
• Coilover Brackets
• Pitman Arm
• Track Bar Bracket
• Sway Bar Brackets
• Brakeline Brackets
• Radius Arm Brackets
• 4-Link Control Arms
• Rear Leaf Springs
• U-Bolts
• All necessary mounting hardware and detailed installation instructions

Key Specifications:

• Lift Height: 8.5 inches
• System Type: Class II Front 4-Link Conversion
• Max Tire Size: 38 x 12.50
• Wheel Sizing: 17–20 x 9 with 5 in. backspacing
• Drive Type: 4WD only

Important Notes:

• Does NOT fit models equipped with the Tremor Package
• If front driveshaft vibration occurs after installation, order extended driveshaft Part # F17685DS
• Professional installation is strongly recommended due to complexity of the 4-Link conversion

The F1782LSKS-B is backed by Skyjacker's Limited Lifetime Warranty against factory defects, providing long-term confidence in your investment. The complete kit maintains factory geometry angles, alignment specifications, and structural integrity for both on-road refinement and off-road readiness.
