Bilstein E4-MWP-1246C00 B1 Motorsports 46mm Digressive/High Flow Linear Piston 12mm

Manufacturer

Part Number

E4-MWP-1246C00
Sale Price

$132.46

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

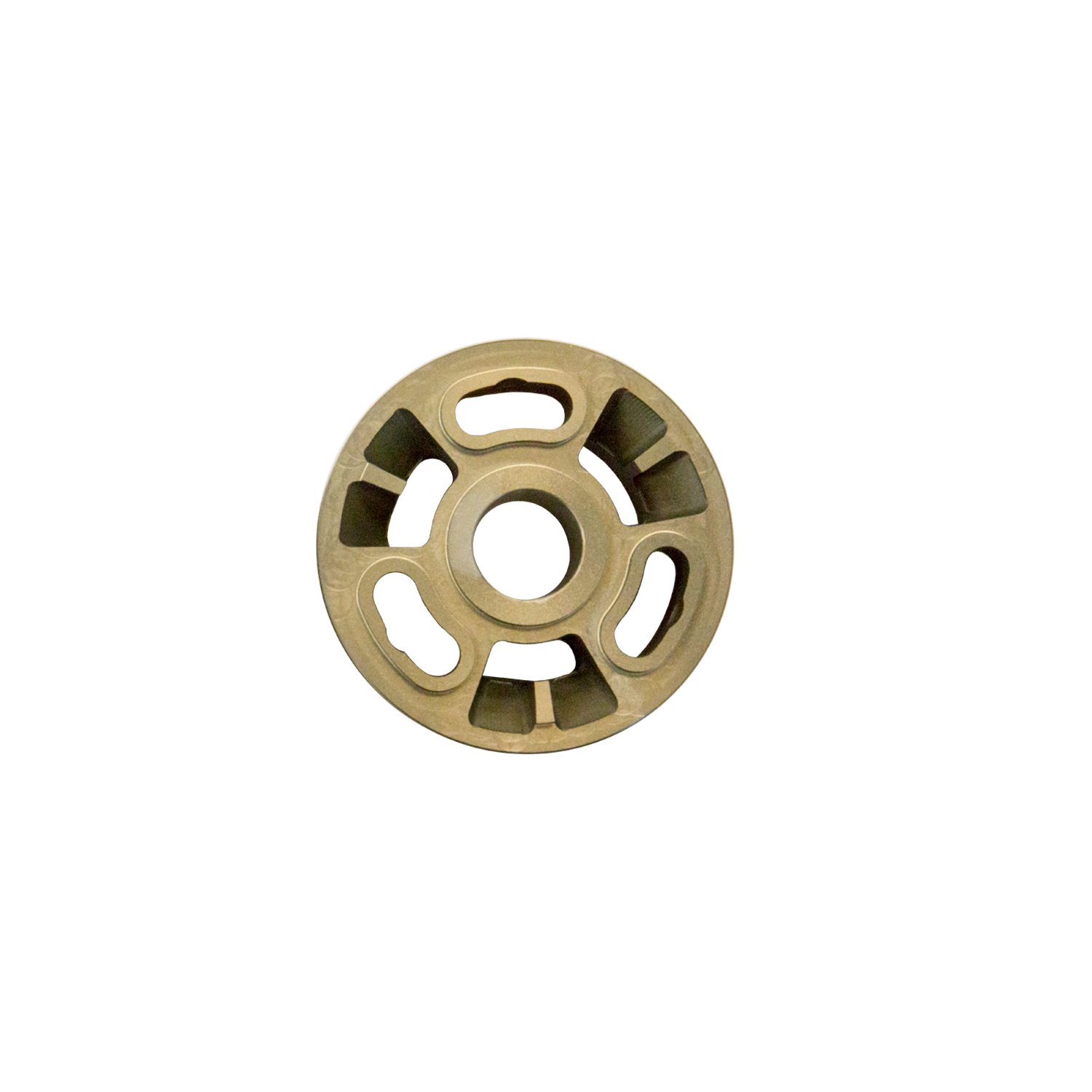

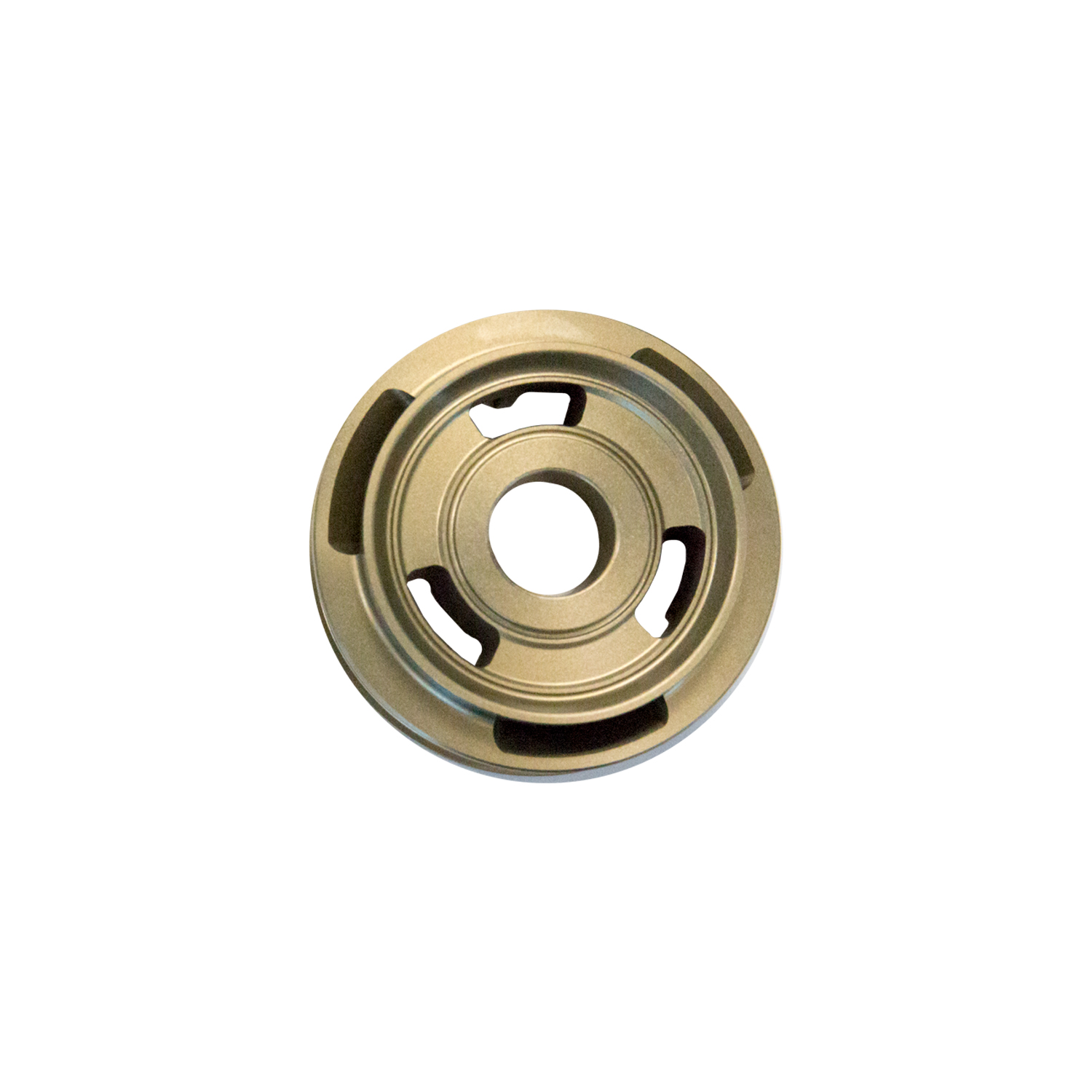

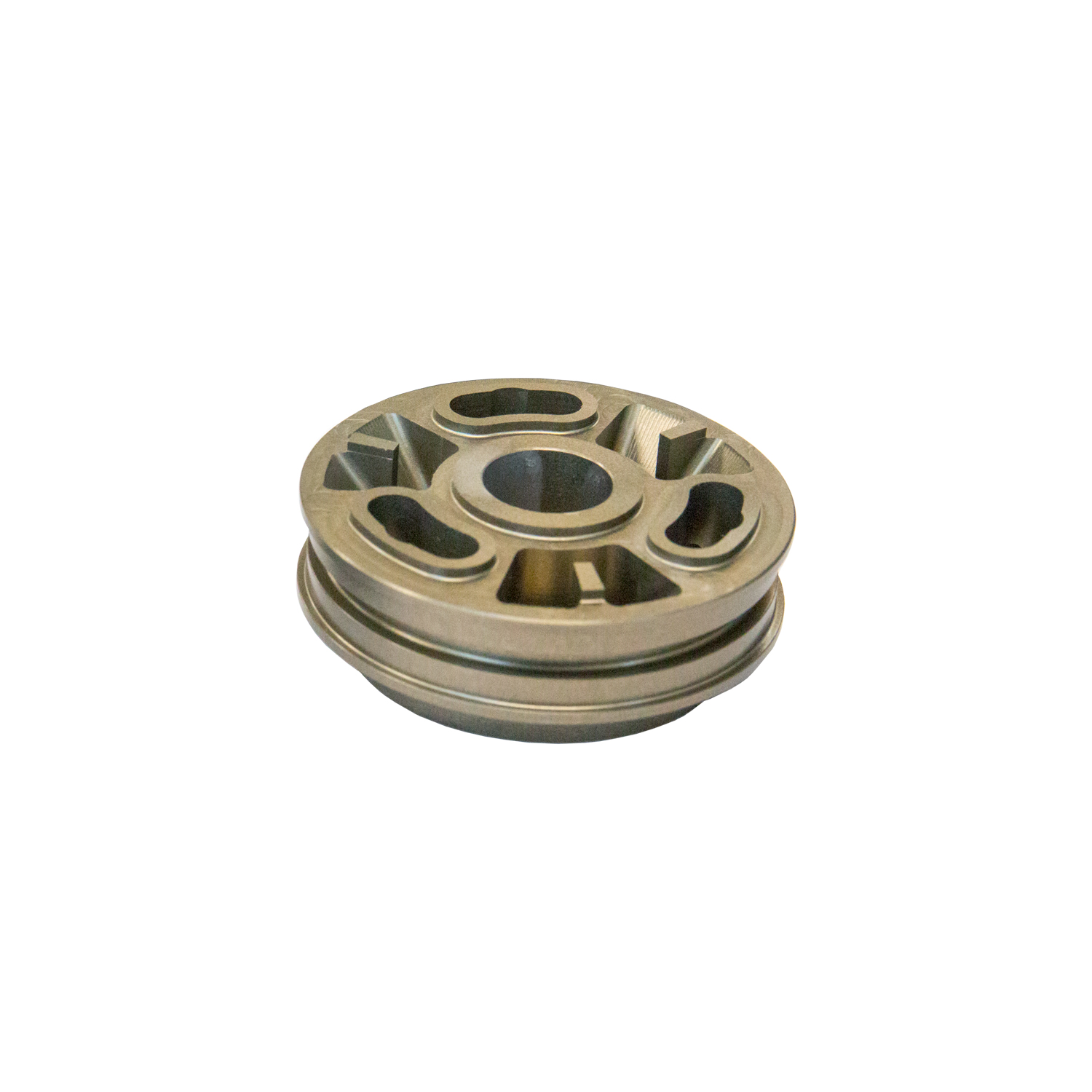

The Bilstein E4-MWP-1246C00 is a 46mm Digressive/High Flow Linear Piston designed for use in Bilstein B1 motorsports dampers. This precision-engineered internal component features a dual-sided design — one side optimized for fully digressive valving and the other for linear valving — giving skilled damper technicians maximum flexibility when tuning race shock absorbers.

This piston is part of Bilstein's expanded competition piston lineup, engineered to give racers greater versatility to adapt to changing track conditions. The 12mm (ID) high-bleed symmetrical design supports soft linear valvings to maximize grip forces at the tire patch on slick racing surfaces, while the digressive side is compatible with Bilstein's optional C.O.B. (Compression Only Bypass) check valve system.

Key Features:

  • Dual-function design: One side for fully digressive valving, one side for linear valving
  • 46mm diameter / 12mm ID — fits Bilstein 46mm motorsports dampers
  • High-flow linear piston with high-bleed symmetrical construction
  • Compatible with two widths of continuous piston band — standard width or narrower option for added high-frequency damping
  • Recessed actuator O-ring groove for improved piston-band-to-shock-wall seal (O-ring and piston band sold separately)
  • Extra-deep pre-load area supports rebound zero points exceeding 2,500 lbs
  • Available pre-load depth is three times that of Bilstein's standard digressive piston
  • Compatible with Bilstein's standard spring steel shims — no new shim inventory required
  • Optional C.O.B. check valve compatibility on the rebound side
  • Sold individually (1 piston per pack)

Intended for use by experienced motorsports damper technicians performing damper upgrades, rebuilds, or valving changes. This component is part of Bilstein's championship-proven B1 internal components line, engineered to maintain peak damping performance under the most demanding race and competition conditions.

Products specifications

Piston Type

Digressive/High Flow Linear

Series

B1 (Components)
