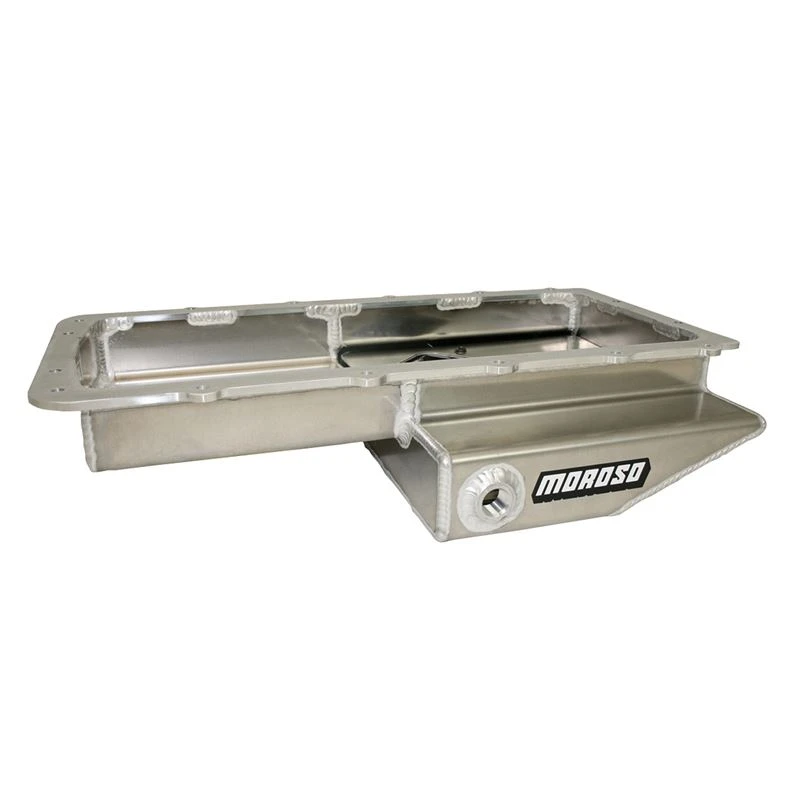

Moroso 20569 Aluminum Oil Pan Ford 5.0L Coyote Cobra Kit Car Road Race

The Moroso 20569 is a precision-engineered aluminum oil pan designed specifically for Ford 5.0L Coyote and 5.2L Voodoo engines in Cobra replica and Factory Five kit car applications. This rear-sump road race oil pan features a shallow profile to accommodate the unique chassis clearance requirements of kit cars while maintaining optimal oil control during high-performance driving.

Key Features:

• 9.5-quart capacity wet sump design holds 1.5 more quarts than Mustang OEM oil pans
• Race-proven four trap door assembly and anti-slosh baffle keeps oil contained in the pump pickup area during road racing and drag racing
• Fully fabricated aluminum construction with thick rail for durability
• Sump depth: 4-3/8 inches deep, designed for shallow clearance applications
• Compatible with 5.0L Coyote and 5.2L Voodoo Gen 1 or Gen 2 factory windage tray and dipstick
• Two 1/2-inch NPT fittings for temperature sensor and supercharger oil drainback
• One 20mm fitting for low oil warning sensor (optional plug Part 22738 available if not used)
• Driver-side dipstick location
• Hand-welded in Guilford, Connecticut

This oil pan is engineered for street/strip and road race applications where consistent oil pressure and control are critical. Requires a compatible oil pump pickup tube (Moroso Part 24570 for Gen 1/2 pumps or 24577 for Gen 3 pumps, sold separately). Designed for use with Moroso windage tray Part 22936 or Ford Part BR3Z-6710-A.
