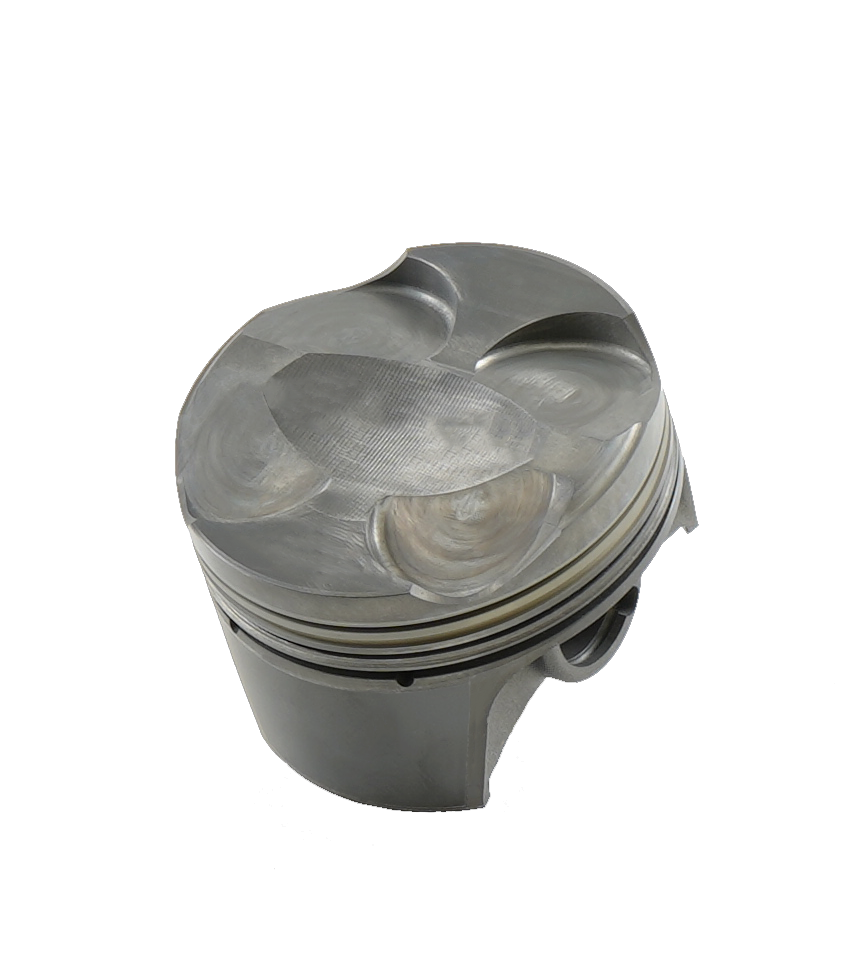

MAHLE 197832209 PowerPak Forged Piston Kit BMW - 84mm N54 3.0L Set of 6

Manufacturer

Part Number

197832209
Sale Price

$970.92

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 197832209 PowerPak Plus Forged Piston Kit is engineered to deliver superior performance and reliability for BMW N54 3.0L turbocharged engines. This complete set of six pistons replaces factory cast aluminum pistons with high-strength forged 2618 alloy construction, providing enhanced durability under extreme heat, detonation, and pressure conditions inherent in high-performance and forced induction applications.

Key Specifications:

  • Bore: 84.00mm (3.307 inches)
  • Compression Height: 31.7mm
  • Stroke: 89.6mm
  • Rod Length: 145.05mm
  • Pin Diameter: 22mm
  • Piston Crown Volume: -17.2cc
  • Weight: 314g per piston
  • Compression Ratio: 10.2:1
  • Material: Forged 2618 aluminum alloy

Advanced Features:

  • Hand-deburred forged aluminum construction for maximum strength
  • Phosphate coating with MAHLE's proprietary Grafal anti-friction skirt coating
  • Hard anodized top ring groove for enhanced wear resistance
  • Low-drag slipper skirt design for reduced friction
  • CNC-machined pin bores and ultra-flat ring grooves
  • Complete kit includes pistons, pins, clips, and MAHLE low-drag rings

This PowerPak piston kit maintains factory compression ratio while providing the strength needed for higher boost levels and increased power output. Designed specifically for motorsport applications and performance-oriented street builds, these pistons offer the durability to handle the demands of modified N54 engines. Backed by MAHLE's 95+ years of performance engineering expertise and OE manufacturing experience.

Products specifications

Piston Kit Quantity

Sold as a set of 6

Piston Ring Thickness

1.0mm, 1.2mm, 2.8mm

Pins Included

Yes

Rings Included

Yes

Crown Vol

-17.2cc

Clip Style

Round Wire

Piston Style

Dish, With 4 valve reliefs

Pin Diameter

22mm

Piston Material

Forged, 2618

Coatings

Phosphate plus Grafal plus Hard Anodized top ring groove

Pin Style

Floating

Piston Mass

314g

Clips Included

Yes

Pin Material

Steel

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Shopped around and found this one to be the cheapest price I could find and exactly what I was looking for. Received my package in a little less than a week's time, only complaint I had was I never got an email for my package being shipped or a confirmation for it. I haf to research my own on the site to find that my package had already been shipped and was already half way on its way towards me. I had already got my product and installed it for a few days then got 2 emails from autoplicity saying my product was shipped and the other saying it was delivered...you don't say?? Haha Overall very satisfied.

will review when i get part

Very easy site to use

Quick easy . Need more coupons

Great price. I will leave more feedback after it arrives and is installed.
