TEIN GSN20-D1SS1 Super Drift Coilover Suspension Kit

Manufacturer

Part Number

GSN20-D1SS1
Black Friday Price

$1,745.10

Estimated ship date Wednesday, December 02

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

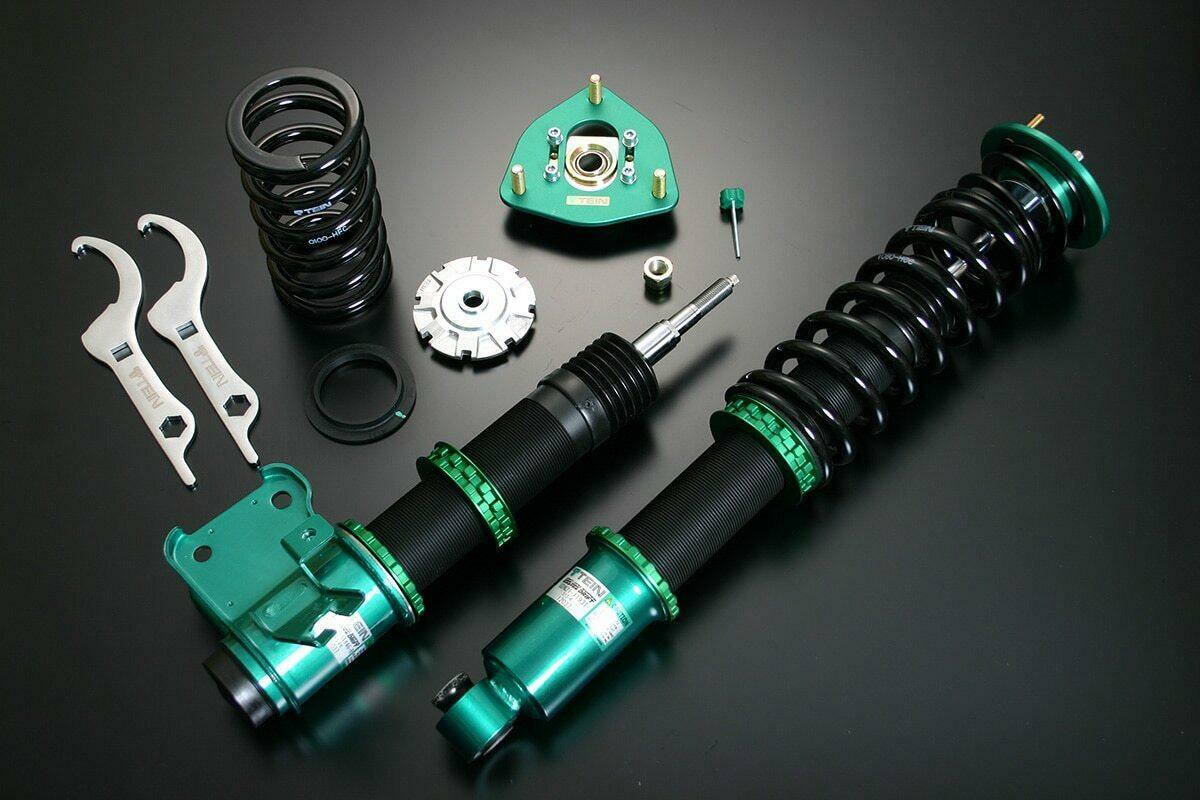

The TEIN Super Drift (GSN20-D1SS1) is a complete coilover suspension kit engineered specifically for dedicated drift applications. Born from TEIN's direct involvement with D1 competition drivers, the Super Drift delivers extreme drift controllability while maintaining proper bump stroke at lowered ride heights. The twin-tube damper design ensures reliable, durable performance and is offered as a full complete kit — shock absorbers, springs, and pillow ball upper mounts included — for a confident, properly matched setup right out of the box.

Spring Specifications:

  • Front Spring Rate: 10.0 kg/mm (175mm length)
  • Rear Spring Rate: 8.0 kg/mm (225mm length)
  • Helper springs included
  • High-tensile steel linear springs with tensile strength of 200 kgf/mm² (1960 N/mm²) — no sag over time

Height & Adjustability:

  • Stock Height Difference — Front: -40mm / Rear: -20mm
  • Max Adjustability — Front: -91mm ~ +17mm / Rear: -111mm ~ +30mm
  • Recommended Adjustability — Front: -50mm ~ -30mm / Rear: -30mm ~ -10mm
  • Full-length adjustment system with adjustable lower bracket for independent ride height and spring preload tuning

Key Features:

  • 16-Level Damping Force Adjustment — Specially shaped needle valve provides linear damping adjustment across all 16 positions (compression and rebound adjusted together)
  • Pillow Ball Upper Mounts — Included front and rear for direct steering feel and improved suspension compliance control
  • Conical Spring Washer — Inserted between bracket lock and lower bracket to prevent loosening under hard drift use
  • Twin-Tube Construction — Provides balance of reliability, durability, and cost-effectiveness
  • Rust-Proof Coating — All threaded parts feature specially formulated fluorine coating; lower brackets receive electroless nickel plating plus clear coat
  • EDFC Compatible — Works with TEIN's Electronic Damping Force Controller for cabin-adjustable damping
  • Overhaul Available — Serviceable and rebuildable through TEIN's overhaul program
  • Optimized for Big Wheels & Tires — Setup tuned for the wider wheel and tire combinations popular in drift builds

The TEIN Super Drift coilover kit is designed to bring drift controllability to the extreme, while remaining equally capable in grip driving. Whether competing or practicing, this suspension system gives drivers the tuning range and precision to dial in their car at any skill level.
