QA1 Precision Products PCYMR-10T High Misalignment Rod End 5/8-18 RH

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

PCYMR-10T
4 reviews
Sale Price

$18.27

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

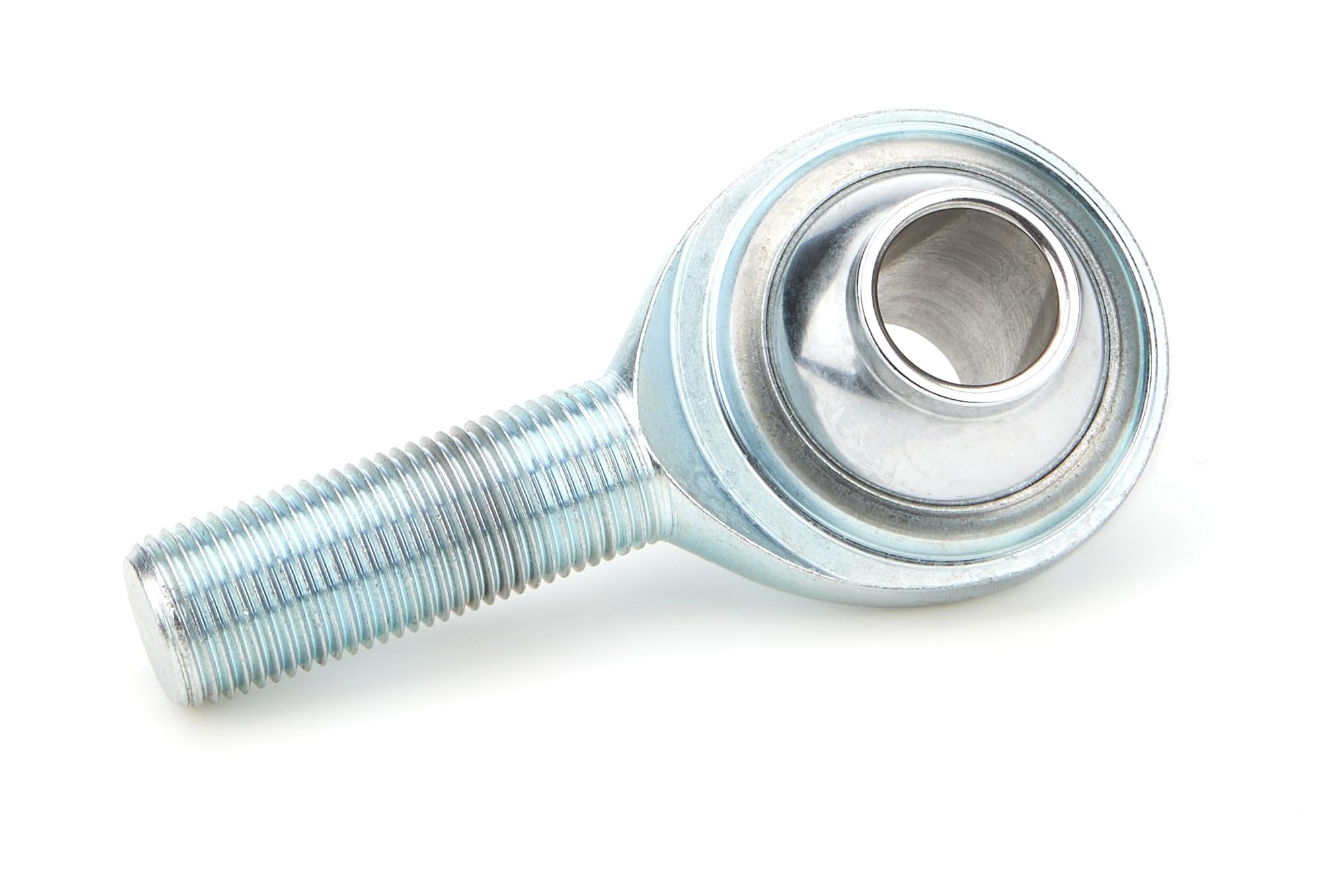

The QA1 PCYMR-10T is a premium-grade, 2-piece chromoly steel rod end from the PCY Series, engineered for applications demanding exceptional misalignment capability. This high-performance rod end features a 5/8 inch bore diameter with 5/8-18 right-hand male threads, making it ideal for steering linkages, suspension components, and custom fabrication projects where extreme articulation is required.

Key Features:

  • Functions with up to 64° of misalignment—the highest in the industry
  • Ball constructed from 52100 bearing steel, heat-treated, hard chrome plated, and precision ground for maximum durability
  • Chromoly steel body is heat-treated and black oxide coated for superior corrosion resistance
  • Self-lubricating PTFE (Teflon) race lining eliminates the need for external lubrication
  • Superior load ratings compared to carbon steel 2-piece rod ends
  • Male mounting configuration with right-hand threads
  • 5/8 inch bore diameter accommodates standard clevis pins and mounting hardware

QA1's PCY Series rod ends are the professional choice for high-stress, high-articulation applications including race car suspension systems, custom steering setups, and heavy-duty off-road vehicles. The combination of precision manufacturing, premium materials, and self-lubricating design ensures long service life even in demanding conditions. Sold individually.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.51

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

64

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

64 degrees

Rod End Static Load Capacity

21,219 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

5/8-18 RH in.

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

19394

W (+/-0.005)

1.375

Title

QA1 Suspension Rod End Bearing PCYMR10T
