ICON Vehicle Dynamics K53030T Stage Suspension System Lift Tubular UCA Toyota Tundra - 10 1-3

(2007-2021 Toyota Tundra; 2012-2018 Toyota Prius C; 2010-2012 Suzuki Kizashi)

Manufacturer

Part Number

K53030T
Black Friday Price

$5,439.86

$6,399.83 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

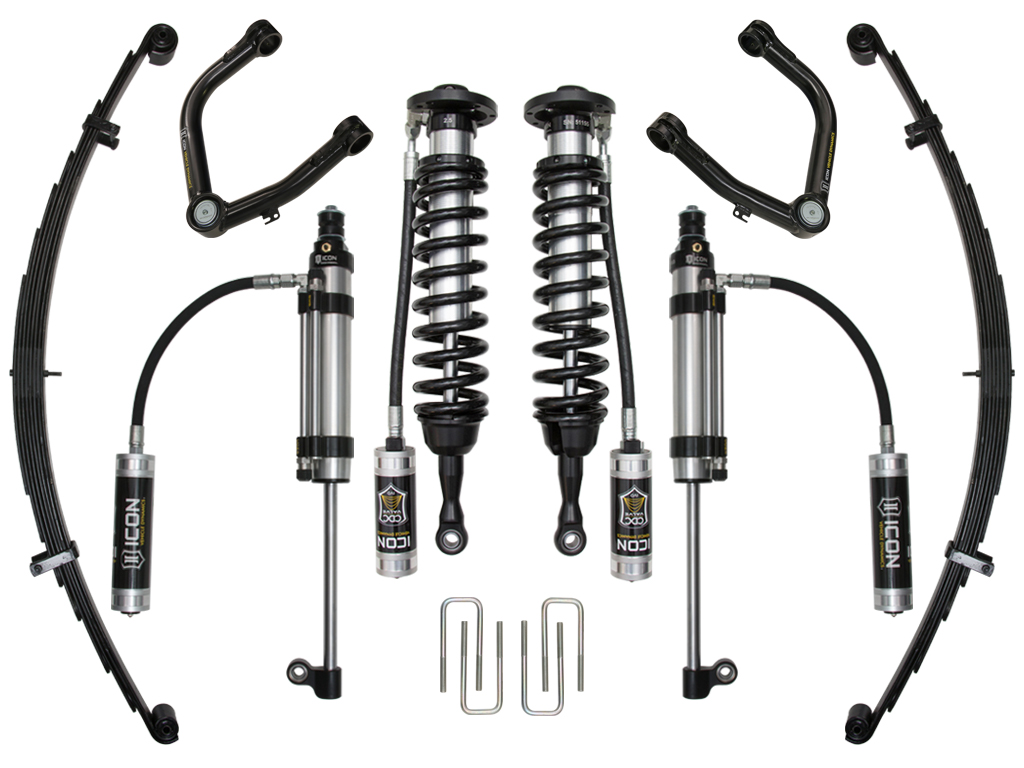

The ICON Vehicle Dynamics Stage 10 Suspension System represents the pinnacle of performance suspension engineering for 2007-2021 Toyota Tundra trucks. This comprehensive system dramatically improves wheel travel, damping ability, and ride quality both on and off-road through carefully engineered components and vehicle-specific tuning.

Front Suspension Components:

  • Vehicle-specific tuned 2.5 Series Extended Travel coilover shocks with remote reservoirs for exceptional cooling
  • CDC (Compression Damping Control) Valve allows easy end-user compression adjustments for optimal ride quality across all terrain types
  • ICON-engineered Eibach coil springs deliver superior vehicle feel through the full range of travel
  • Height adjustable from 1-3 inches of lift over stock to accommodate larger, more aggressive wheel and tire combinations
  • Tubular upper control arms with ICON's patented Delta Joint technology
  • Increased droop travel over stock suspension

Rear Suspension Components:

  • ICON RXT multi-rate leaf springs with three user-adjustable spring rates for different vehicle configurations
  • Additional leaf included with kit can be exchanged or added to the pack for customized spring rates
  • Galvanized leaf separators reduce friction and provide corrosion resistance
  • Leaf spring tip inserts minimize noise and enhance ride comfort
  • 2.5 Aluminum Series remote reservoir Omega bypass shock with side-mount eyelet design
  • Ten-inch remote reservoir aids in heat dissipation and resists shock fade during spirited driving
  • Compression and rebound adjustment for ultimate control of performance and ride quality

Delta Joint Technology:

The included tubular upper control arms feature ICON's patented Delta Joint, a heavy-duty high-angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. The Delta Joint features a zinc-plated housing for corrosion resistance, a tough grease seal to protect against the elements, metal-on-metal construction, and a greaseable design for longevity and noise-free operation. This innovative design delivers greater angularity than typical ball joints while being more robust than uniballs for daily-driven applications.

Key Benefits:

  • Bolt-on installation requires no cutting or welding
  • Optimized for both unloaded daily driving and heavily equipped adventure builds with bed racks, roof top tents, and gear
  • Increased wheel travel and ride quality over stock suspension
  • Vehicle-specific tuning ensures optimal performance for the Toyota Tundra platform

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2007-2021 Toyota Tundra; 2012-2018 Toyota Prius C; 2010-2012 Suzuki Kizashi

Prop 65

WARNING: This product contains chemicals known to the State of California to ca

Spring Color

Black

Maximum Lift

3.5

Bushings Included

Yes

Recommended Aftermarket Tires

35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5.625” Backspace / 16mm Offset

Shocks Included

Yes

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Grade Type

Performance

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 6” Backspace / 25mm Offset

Mounting Hardware Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset

Add-On Part

191011 - TUBULAR UCA BILLET CAP SET

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Add-On Part

56108 - 07-UP TUNDRA REAR HYD BUMP STOP KIT

Leaf Spring Leaf Quantity

8

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Coils Quantity Front

2

Add-On Part

198001 - BILLET SPANNER WRENCH KIT
