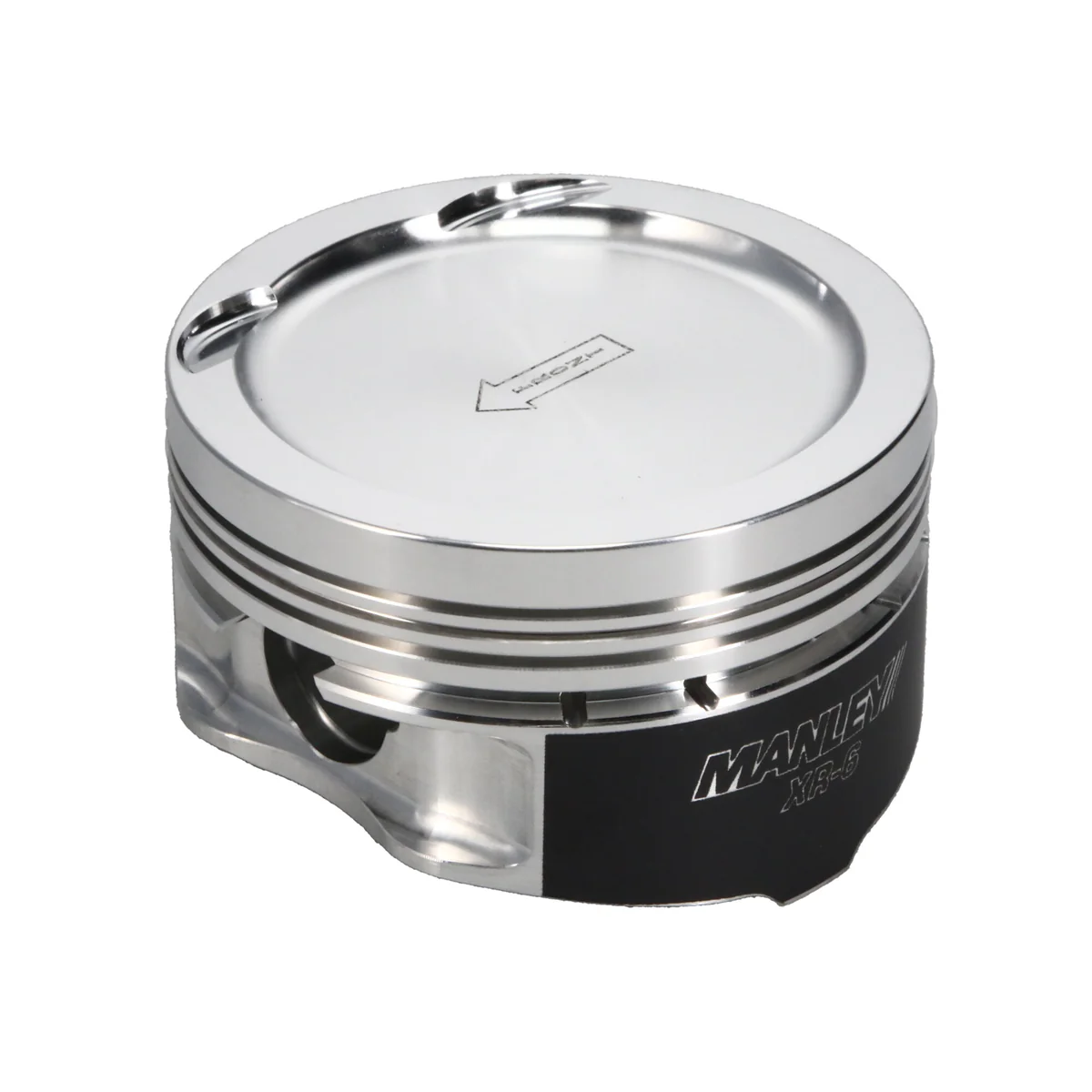

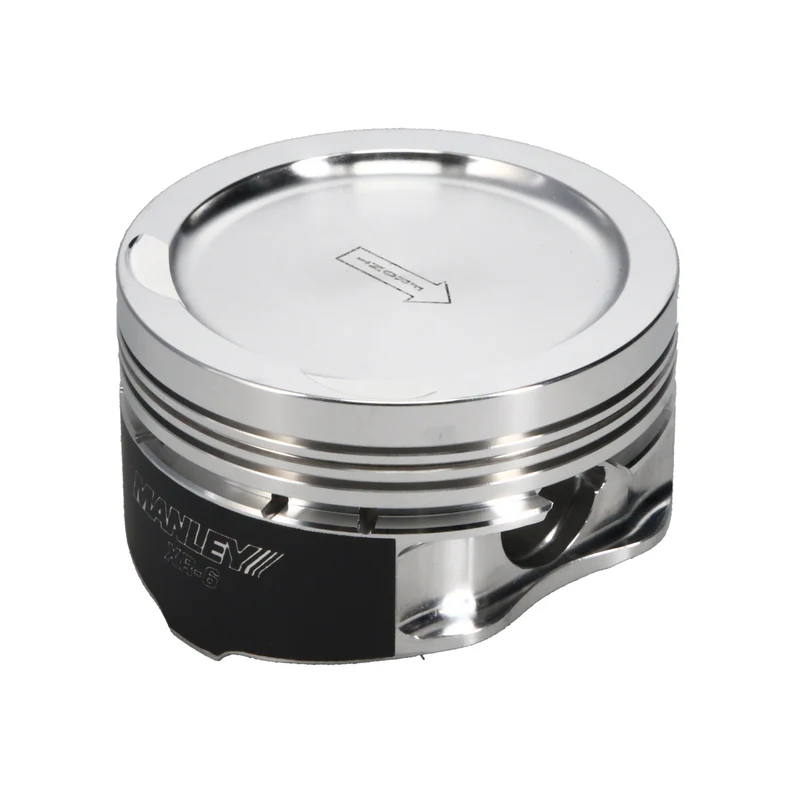

Manley 628000CE-6 Platinum Series Piston Set Ford BA Falcon XR6 Turbo 4.0L

The Manley 628000CE-6 Platinum Series piston set is engineered specifically for the Ford BA Falcon XR6 Turbo 4.0L engine, delivering exceptional strength and performance for high-boost turbocharged applications. This complete 6-piston set features a standard bore size of 3.633 inches with a dish-style top for optimal compression control.

Platinum Series Construction:

• Forged from domestic 2618 aluminum alloy for superior strength and heat resistance
• Extreme Duty design with reinforced top ring land and pin bosses for high-boost applications
• Compression distance: 1.215 inches
• Dish volume optimized for turbocharged performance
• Lightweight yet robust design for extended service life

Complete Kit Includes:

• Set of 6 forged pistons
• Premium chrome-moly tool steel wrist pins
• Piston rings (steel top ring sets)
• Round wire locks

Performance Features:

• Proven cam and barrel skirt profiles reduce friction while protecting cylinder walls
• Molybdenum skirt coating for enhanced durability
• Unique one-fixturing manufacturing ensures perfect ring groove to skirt squareness
• Exacting ring lands and grooves deliver enhanced ring seal and maximum power
• Pressure balance groove for improved oil control
• Offset wrist pin design for quieter start-ups

Manley pistons are trusted by professional engine builders and tuners worldwide for their precision machining, superior materials, and proven track record in high-performance and racing applications. Each piston undergoes rigorous quality control to ensure proper dimensions, concentricity, and surface finish.
