QA1 52621-S500 Front Coilover Conversion System Single Adjustable 500 lb/in 5-7in Drop

(1975-1979 Ford F-150; 1965-1979 Ford F-100)

Manufacturer

Part Number

52621-S500
Black Friday Price

$4,714.95

Estimated ship date Tuesday, December 01

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

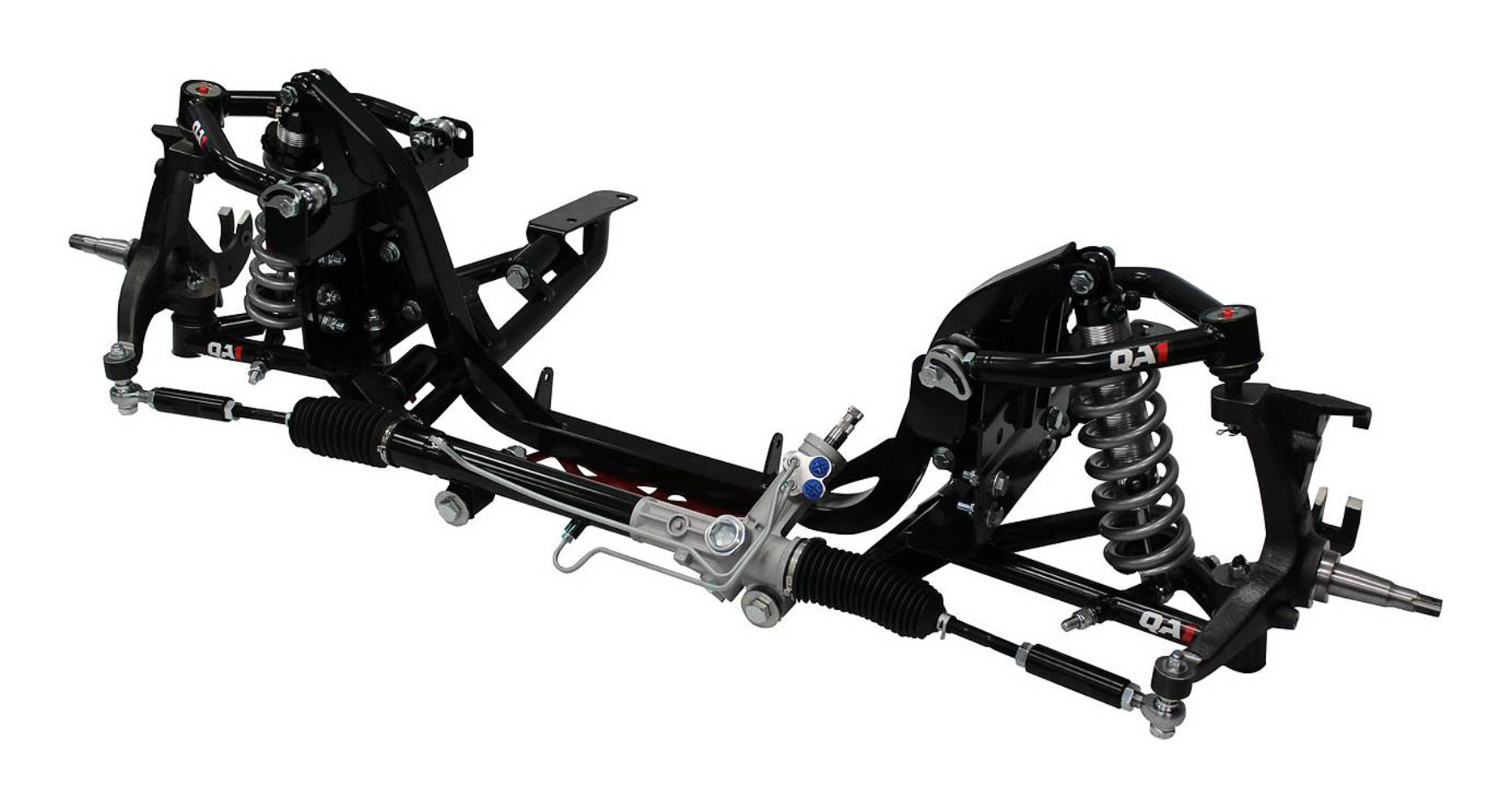

The QA1 52621-S500 is a complete front coilover conversion system engineered from the ground up to replace the factory twin I-beam suspension with a modern, high-performance coilover setup. Featuring single-adjustable shocks and 500 lb/in spring rate, this kit delivers a 5 to 7-inch drop with the included drop spindles, or 3 to 5 inches with standard spindles.

This system is designed to be 3.75 inches narrower than a Crown Vic swap, allowing for better handling dynamics and the fitment of wider wheels and tires. The conversion also removes approximately 150 lbs of front-end weight, resulting in a more responsive and nimble driving experience. The included rack and pinion steering system replaces the factory setup for greatly improved steering precision.

What's Included:

  • Single-adjustable coilover shocks (100% dyno tested and serialized)
  • 500 lb/in high-travel coilover springs
  • Coilover hardware
  • Tubular upper and lower control arms
  • Upper and lower crossmembers
  • Rack and pinion steering (Fox Body Mustang-based, 9/16"-18 pressure port and 5/8"-18 return)
  • Drop spindles (1979–1981 Camaro-sourced)
  • All required nuts, bolts, and hardware
  • Inner fender trimming template

Key Features:

  • 5–7 inch drop with included drop spindles (3–5 inch with standard spindles)
  • 500 lb/in spring rate for street performance and handling
  • Single-adjustable valving — adjust damping on the car without removal
  • Steel construction with black powder coat finish
  • No welding required for installation — fully bolt-in design
  • No bed removal required
  • Compatible with both bump side and dent side F100 trucks
  • Proudly manufactured in Lakeville, Minnesota, USA
  • QA1 adjustable shocks eligible for Limited Lifetime Warranty (registration required)

Installation Notes:

  • Front brakes must match the 1979–1981 Camaro spindles included
  • Requires trimming of inner fenders (template included)
  • Requires custom routing of power steering lines and adapter fittings
  • Some engine/header combinations may require up to three steering U-joints
  • Engine mounts sold separately (FE, Windsor, Mod/Coyote, and LS-based options available)

The QA1 52621-S500 is the definitive front suspension upgrade for classic Ford F100 builds, combining a fully integrated coilover system, rack and pinion steering, and tubular control arms in a single kit. UPC: 806990155757.

Products specifications

Fits

1975-1979 Ford F-150; 1965-1979 Ford F-100

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov

Title

QA1 Coilover Overhaul Kit 52621-S500
