Cusco 564 290 W13 Safety 21 Roll Cage 13-Point 2-Passenger Dash-Through Type

The Cusco Safety 21 Roll Cage (part number 564 290 W13) is a professional-grade 13-point bolt-in roll cage designed to provide maximum protection and chassis rigidity. This dash-through type cage is engineered specifically for 2-passenger racing applications where rear seat elimination is acceptable.

Construction and Materials:

• Constructed from cold-drawn seamless steel tubing with 40mm outer diameter
• 2mm wall thickness using JIS grade STKM13C-SC metallurgy
• Exceeds JAF regulation strength of 350N/mm² with 510N/mm² tensile strength
• Professional black paint finish
• Heavy-duty mounting plates: 60mm² at 2.6mm thickness
• Reinforced gussets: 120mm² at 3.2mm thickness

Cage Configuration:

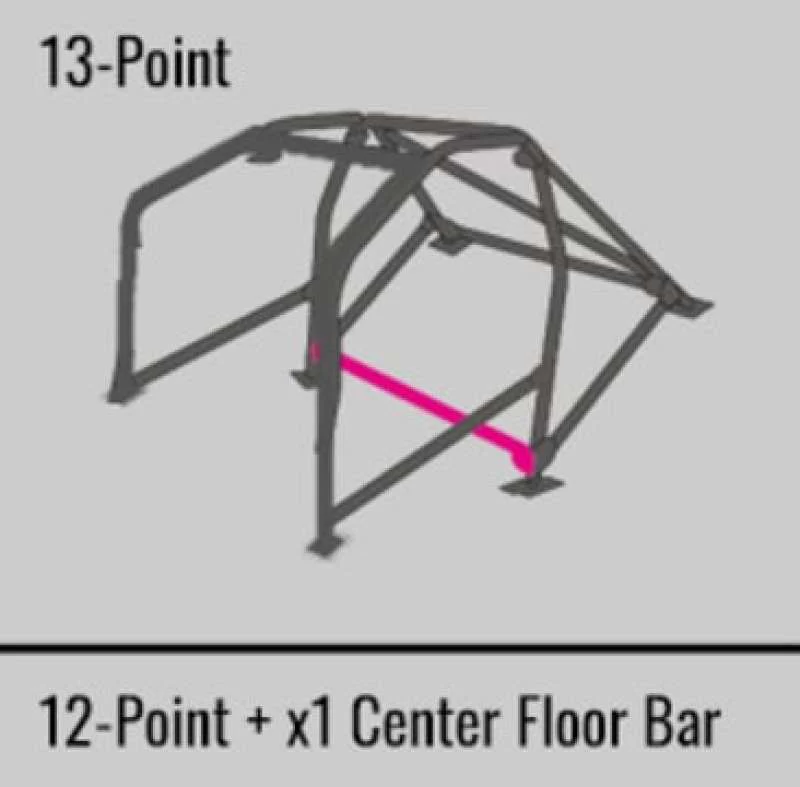

• 13-point design includes front and rear bars with diagonal bracing
• Side bars, center floor bar, rear side bars, and rear bars for comprehensive protection
• Dash-through front design for optimal driver protection and cage rigidity
• 2-passenger configuration (eliminates rear seating)
• Strategically mounted to maximize body rigidity and structural integrity

Features and Benefits:

• Designed from extensive racing experience in rally, track racing, and time attack events
• Each application is independently engineered for maximum protection while minimizing weight
• Bolt-in installation designed for specific chassis mounting points
• Competition-grade layout proven effective on the racetrack
• Significantly improves chassis stiffness and handling response
• Meets professional racing safety standards

Cusco Safety 21 roll cages represent decades of motorsports knowledge translated into precision-engineered safety equipment. Whether you're a weekend racer or professional competitor, this cage provides the protection and performance needed for serious racing applications.
